| Ref # | Current Part Nbr |
Description | Superceded From |
Status | Notes | List Price |
Online Price |
Quan Used |
Order Quan |
|---|---|---|---|---|---|---|---|---|---|

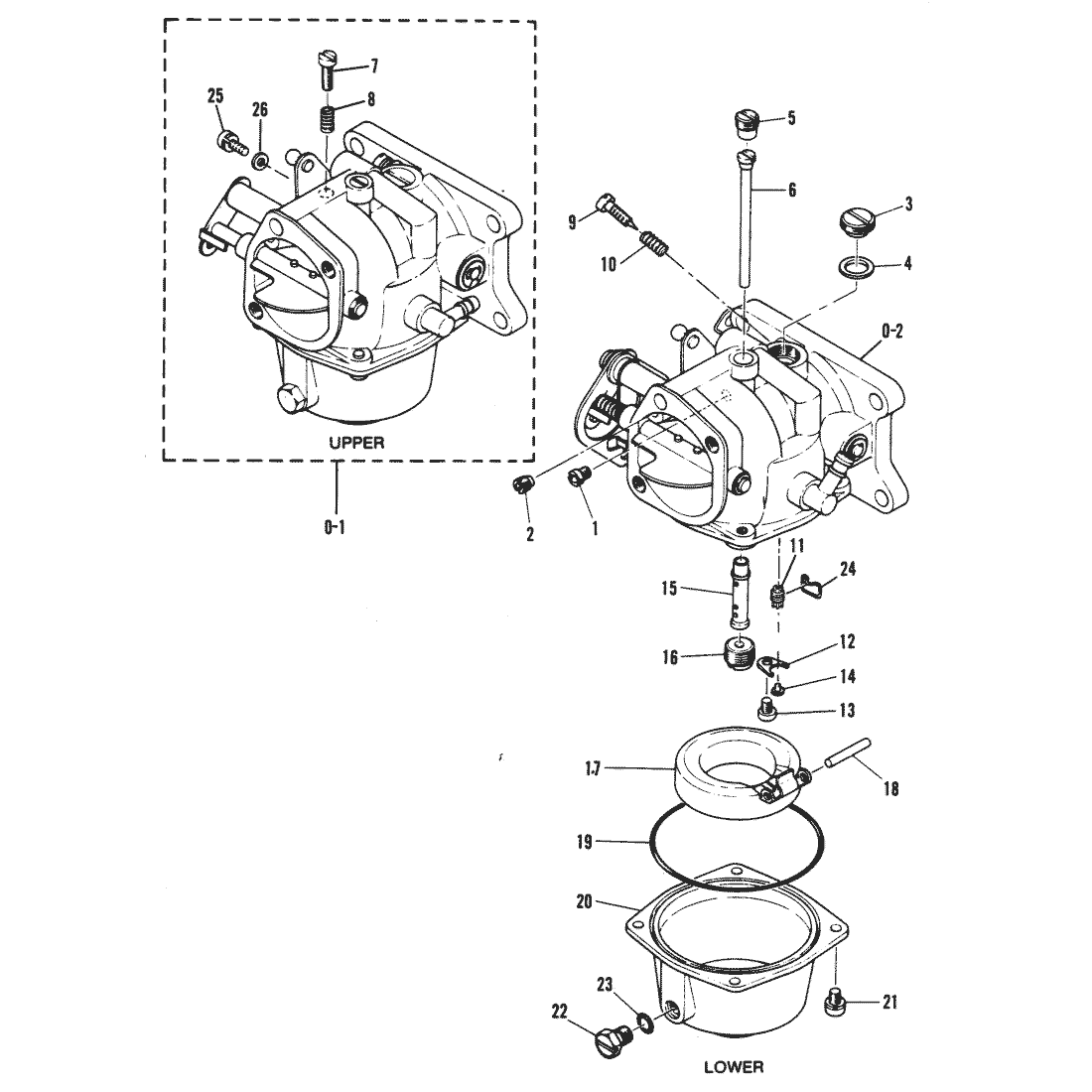

| 0-1 | 8814M | CARBURETOR ASS'Y (UPPER | NLA |
|
$0.00 | $0.00 | 1 | ||
| 0-2 | 8815M | CARBURETOR ASS'Y (LOWER) | NLA |
|
$0.00 | $0.00 | 1 | ||
| 1 | 97849M | --JET, PILOT AIR (#110) | NLA |
|
$0.00 | $0.00 | 2 | ||
| 2 | 92678M | --JET, MAIN AIR (# 135) | NLA |
|
$0.00 | $0.00 | 2 | ||
| 3 | 81292M | --SCREW, PLUG | NLA |
|
$0.00 | $0.00 | 2 | ||
| 4 | 92636M | --WASHER | NLA |
|
$0.00 | $0.00 | 2 | ||
| 5 | 97080M | --SCREW, PLUG | NLA |
|
$0.00 | $0.00 | 2 | ||
| 6 | 41840M | --JET, PILOT (#88) | NLA |
|
$0.00 | $0.00 | 2 | ||
| 7 | 81277M | --SCREW, THROTTLE (UPPER) | NLA |
|
$0.00 | $0.00 | 1 | ||
| 8 | 82080M | --SPRING, COMPRESSION (UPPER) | NLA |
|
$0.00 | $0.00 | 1 | ||
| 9 | 81281M | --SCREW, IDLE SPEED | NLA |
|
$0.00 | $0.00 | 2 | ||
| 10 | 82073M | --SPRING, COMPRESSION | NLA |
|
$0.00 | $0.00 | 2 | ||
| 11 | 41841M | --VALVE SEAT ASS'Y | NLA |
|
$0.00 | $0.00 | 2 | ||
| 12 | 80026M | --RETAINER, VALVE SEAT | NLA |
|
$0.00 | $0.00 | 2 | ||
| 13 | 82499M | --SCREW | NLA |
|
$0.00 | $0.00 | 2 | ||
| 14 | 92639M | --PIN, VALVE | ACT | $12.89 | $12.58 | 2 | |||
| 15 | 81287M | --NOZZLE, MAIN | NLA |
|
$0.00 | $0.00 | 2 | ||
| 16 | 92637M | --JET, MAIN (#165) | NLA |
|
$0.00 | $0.00 | 2 | ||
| 17 | 97848M | --FLOAT | 81291M | SS |
|
$0.00 | $0.00 | 2 | |
| 18 | 81278M | --PIN, FLOAT | NLA |
|
$3.40 | $3.32 | 2 | ||
| 19 | 82288M | --O-RING | NLA |
|
$0.00 | $0.00 | 2 | ||
| 20 | 81290M | --BOWL, FLOAT | NLA |
|
$0.00 | $0.00 | 2 | ||
| 21 | 81758M | --SCREW W/WASHER | ACT | $2.79 | $2.72 | 8 | |||
| 22 | 81293M | --SCREW, DRAIN | NLA |
|
$0.00 | $0.00 | 2 | ||
| 23 | 94498M | --O-RING | ACT | $7.79 | $7.61 | 2 | |||
| 24 | 82781M | --CLIP | SS |
|
$17.67 | $17.35 | 2 | ||
| 25 | 97082M | --SCREW W/WASHER (UPPER) | NLA |
|
$0.00 | $0.00 | 1 | ||
| 26 | 83372M | --WASHER (UPPER) | NLA |
|
$0.00 | $0.00 | 1 | ||
| 26 | 19141M | REPAIR KIT, CARBURETOR | 41842M | SS |
|
$0.00 | $0.00 |
