Ref # Current
Part Nbr		 Description Superceded
From		 Status Notes List
Price		 Online
Price		 Quan
Used		 Order
Quan

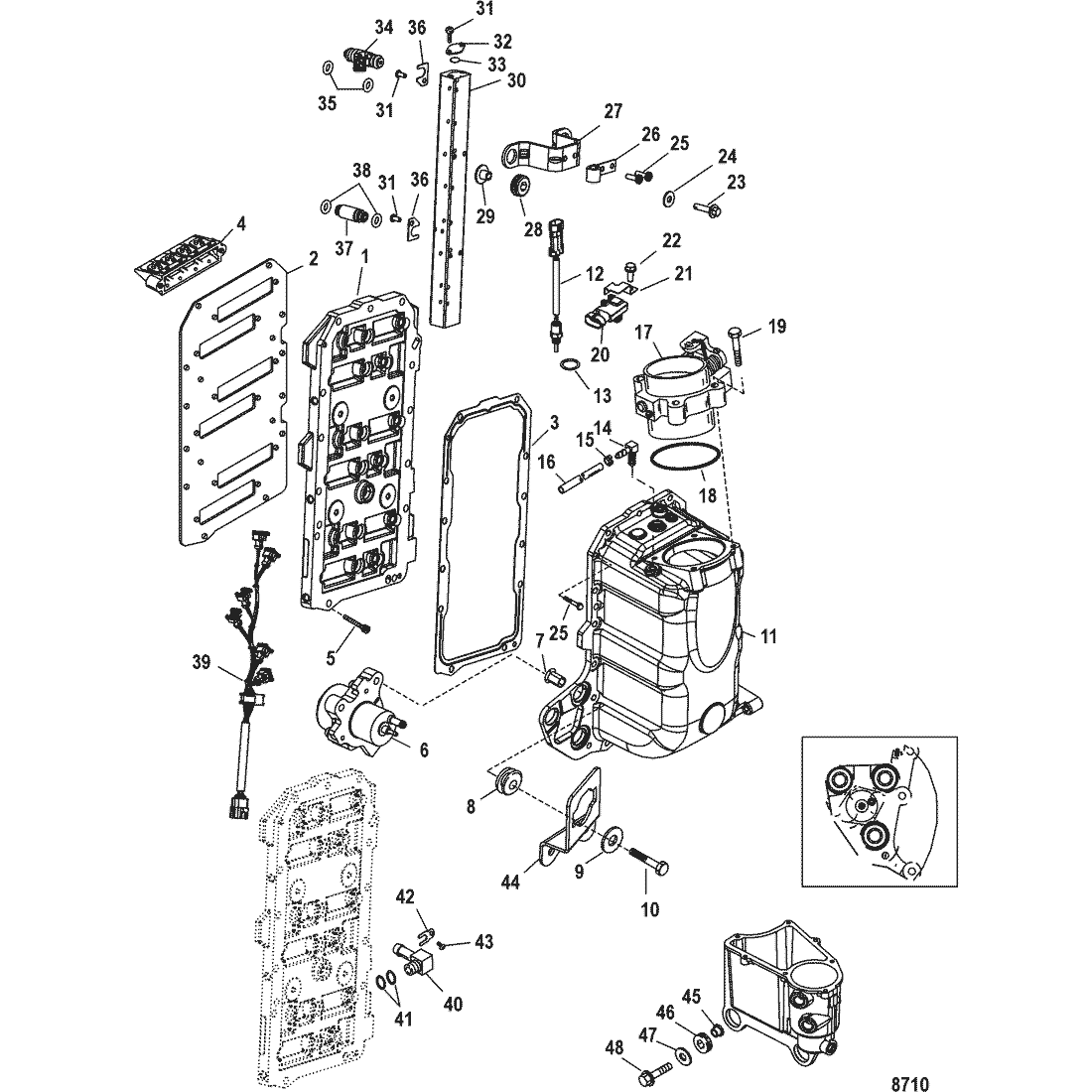

- 896552T02 AIR HANDLER ASSEMBLY 896552T01 SS $2,603.07 $2,386.29 1
1 883955T1 --ADAPTOR PLATE KIT NLA $0.00 $0.00 1
2 146974 ----GASKET ACT $36.33 $35.68 1
3 8500581 ----GASKET ACT $39.25 $38.54 1
4 855952T3 --REED BLOCK ASSEMBLY ACT $155.33 $145.02 6
5 55715 --SCREW, (.250-20 x .880) ACT $2.81 $2.75 12
6 8M0185615 --PUMP ASSEMBLY 879892T04 SS $556.86 $523.90 1
7 855364 --BUSHING ACT $6.00 $5.86 3
8 855362001 --GROMMET ACT $3.20 $3.13 3
9 817274 --WASHER, (.344 x 1.00 x .063) Stainless Steel ACT $1.40 $1.37 3
10 81893435 --SCREW, (M8 x 35) ACT $4.00 $3.91 3
11 883954T1 --PLENUM KIT, Air ACT $372.58 $350.87 1
12 8M0148668 --SENSOR ASSEMBLY 885342001 SS $47.25 $46.40 1
12 8M0148668 --SENSOR ASSEMBLY 885342002 SS $47.25 $46.40 1
13 896699 ----O-RING, (.351 x .072) 888814 SS $12.50 $12.19 1
13 896699 ----O-RING, (1.78 mm x .08 mm) ACT $12.50 $12.19 1
14 884588 --FITTING ACT $21.84 $21.44 1
15 56762 --TIE STRAP, (4.00 Inches) ACT $0.50 $0.49 2
16 8M0054213 --HOSE, (40.00 Inches Bulk) (Cut to 34 Inches) 85583466 SS $55.92 $53.79 1
17 883956T1 --THROTTLE BODY KIT ACT $369.36 $353.06 1
18 855423 ----O-RING ACT $26.00 $25.53 1
19 82130040 ----SCREW, (M6 x 40) ACT $7.90 $7.71 4
20 854445 --SENSOR, MAP ACT $129.50 $121.96 1
21 884522 --BRACKET, MAP Sensor ACT $13.60 $13.27 1
22 1993716 --SCREW, (M6 x 16) ACT $3.00 $2.93 1
23 82130025 --SCREW, (M6 x 25) ACT $4.10 $4.00 4
24 8M0214930 --WASHER 4002316 SS $1.00 $0.98 4
25 883942 --SCREW, (M4 x 16) ACT $3.60 $3.52 6
26 883941 --CLAMP NLA $0.00 $0.00 2
27 883926 --BRACKET NLA $0.00 $0.00 2
28 8M0190980 --GROMMET 834985 SS $3.60 $3.52 4
29 822003 --BUSHING ACT $3.70 $3.61 4
30 883953T1 --FUEL RAIL ACT $102.08 $96.14 1
31 840118 ----SCREW, (#8-32 x .380) ACT $3.70 $3.61 11
32 840422A1 ----PLATE KIT NLA $0.00 $0.00 2
33 627021 ----O-RING, (.301 x .070) ACT $1.69 $1.65 2
34 840481T01 --INJECTOR ASSEMBLY ACT $410.71 $392.59 6
35 NSS ----NOT SOLD SEPARATE, O Ring $0.00 $0.00 12
36 8833821 --RETAINER NLA $0.00 $0.00 7
37 8832151 --TUBE ACT $51.58 $49.62 1
38 883355 --O-RING ACT $2.30 $2.25 2
39 840482A3 --HARNESS ASSEMBLY, Injector ACT $347.17 $326.93 1
40 883940 --FITTING ACT $25.42 $24.96 1
41 20385 --O-RING, (.239 x .070) ACT $1.80 $1.76 2
42 883382 --RETAINER ACT $12.50 $12.19 1
43 883376 --SCREW, (#10-24 x .375) ACT $2.00 $1.96 1
44 892296 --BRACKET ACT $25.92 $25.45 1
45 855364 BUSHING ACT $6.00 $5.86 3
46 855362001 GROMMET ACT $3.20 $3.13 3
47 817274 WASHER, (.344 x 1.00 x .063) Stainless Steel ACT $1.40 $1.37 3
48 81893435 SCREW, (M8 x 35) ACT $4.00 $3.91 3
- 8M0046715 GASKET SET 815791A02 SS $292.25 $275.22 1
- 8M0191917 POWERHEAD ASSEMBLY 883511T04 SS $0.00 $0.00 1
- 883600T04 POWERHEAD ASSEMBLY NLA $0.00 $0.00 1
