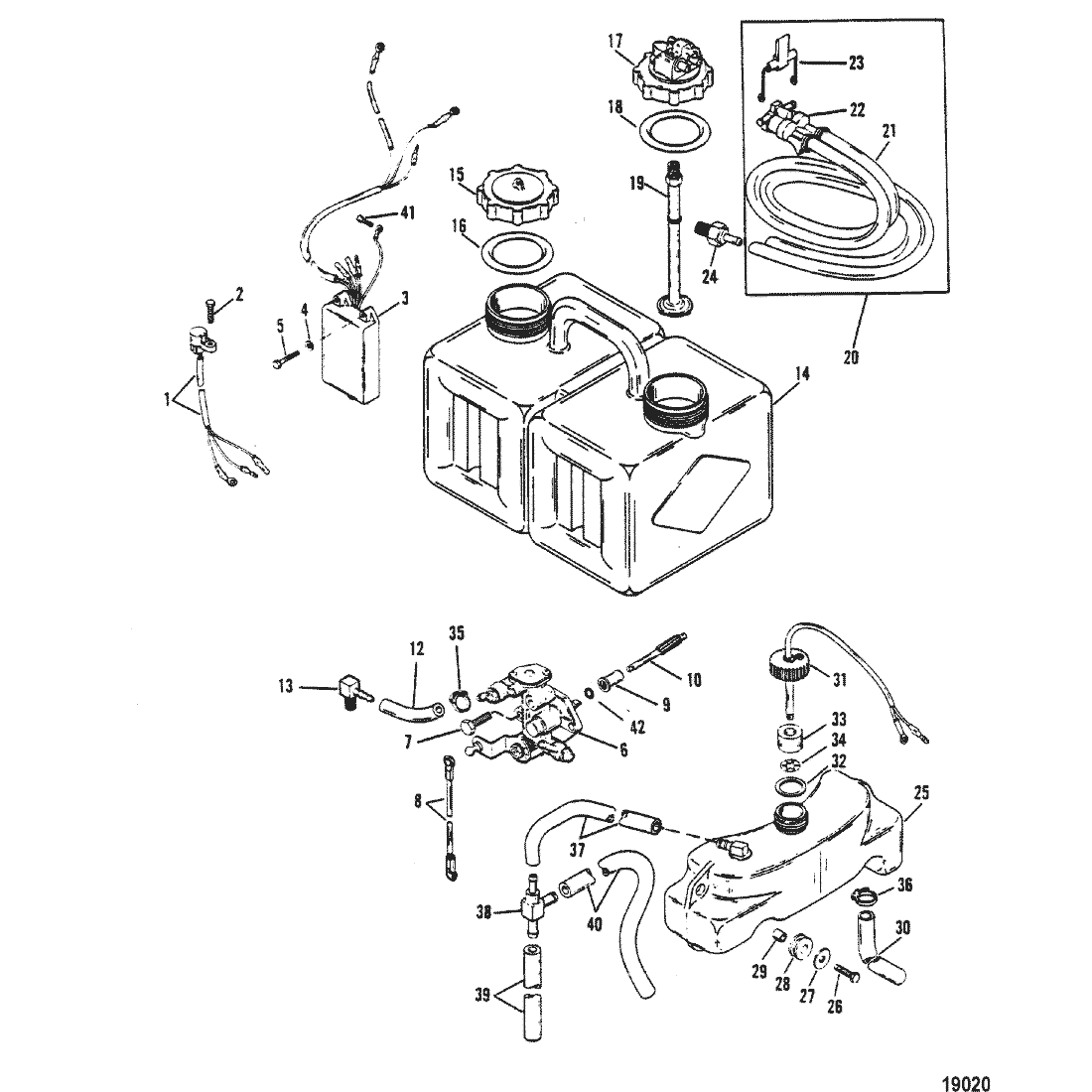

| Ref # | Current Part Nbr | Description | Superceded From | Status | Notes | List Price | Online Price | Quan Used | Order Quan |
|---|---|---|---|---|---|---|---|---|---|
| 1 | 12430A4 | SENSOR ASSEMBLY | ACT | $145.50 | $137.02 | 1 | |||
| 2 | 48409 | SCREW, (#10-16 x .625) | ACT | $2.50 | $2.44 | 1 | |||
| 3 | 41470A27 | WARNING MODULE ASSEMBLY | 41470A11 | SS |  | $409.50 | $385.63 | 1 | |
| 4 | 38833 | WASHER | ACT | $3.80 | $3.71 | 3 | |||
| 5 | 690201 | SCREW, (#10-32 x .875) | 69020 | SS | | $2.90 | $2.83 | 3 | |
| 6 | 815699T | OIL PUMP ASSEMBLY | 815699 | SS | | $380.14 | $363.36 | 1 | |
| 7 | 32228 | SCREW, (#10-32 x .625) | ACT | $1.80 | $1.76 | 1 | |||
| 7 | 41507 | SCREW, (#10-32 x 1.120) | ACT | $0.50 | $0.49 | 1 | |||
| 8 | 193855 | LINK ASSEMBLY | NLA | | $0.00 | $0.00 | 1 | ||
| 9 | 41429A2 | BEARING ASSEMBLY | ACT | $34.33 | $33.72 | 1 | |||
| 10 | 14563 | DRIVEN GEAR | 12726 | SS | | $77.25 | $74.30 | 1 | |
| 12 | 82381335 | TUBING, (8.00 Inch) | 4301625 | SS | | $10.90 | $10.63 | 1 | |
| 13 | 424811 | CHECK VALVE (NOT USED W/SQUARE FUEL PUMP) | 42481 | SS | | $79.67 | $76.82 | 1 | |
| 14 | 87421 | TANK | ACT | $90.92 | $87.45 | 1 | |||
| 15 | 43298A2 | CAP ASSEMBLY | ACT | | $32.00 | $31.43 | 1 | ||
| 16 | 11332 | --O-RING | ACT | | $4.64 | $4.55 | 1 | ||
| 16 | 11009 | --GASKET | NLA | | $0.00 | $0.00 | 1 | ||
| 17 | 816190A4 | ADAPTOR HOUSING ASSEMBLY | 43295A5 | SS | | $201.58 | $189.84 | 1 | |
| 18 | 11332 | --O-RING | ACT | | $4.64 | $4.55 | 1 | ||
| 18 | 11009 | --GASKET | NLA | | $0.00 | $0.00 | 1 | ||
| 19 | 99802 | --TUBE | ACT | $16.92 | $16.62 | 1 | |||
| 20 | NLA | No Longer Available, Quick Disconnect Kit | | $0.00 | $0.00 | 1 | |||
| 21 | 99439 | --HOSE, (114.00 Inches) | ACT | $89.33 | $85.93 | 1 | |||
| 22 | 12540A3 | --HOUSING | NLA | | $0.00 | $0.00 | 1 | ||
| 23 | 12242A1 | --LATCH | NLA | | $0.00 | $0.00 | 1 | ||
| 24 | 8781051 | FITTING (CRANKCASE) | 43278 | SS | | $39.99 | $39.43 | 1 | |
| 25 | 994436 | OIL RESERVOIR | 994433 | SS | | $207.92 | $195.80 | 1 | |
| 26 | 690201 | SCREW, (#10-32 x .875) | 69020 | SS | | $2.90 | $2.83 | 3 | |
| 27 | 42118 | WASHER | ACT | $3.90 | $3.81 | 6 | |||
| 28 | 42117 | GROMMET | ACT | $4.20 | $4.10 | 3 | |||
| 29 | 42116 | BUSHING | ACT | $3.00 | $2.93 | 3 | |||
| 30 | 82381455 | TUBING | 4301736 | SS | | $23.67 | $23.25 | 1 | |
| 31 | 43300A9 | CAP ASSEMBLY | ACT | | $84.75 | $81.64 | 1 | ||
| 32 | 43307T | --GASKET | 43307 | SS | | $6.10 | $5.95 | 1 | |
| 33 | 8M0187298 | --FLOAT ASSEMBLY | 99022A1 | SS | | $24.08 | $23.65 | 1 | |
| 34 | 99265 | --PUSHNUT | ACT | $1.80 | $1.76 | 1 | |||
| 35 | 415821 | CLAMP (SMALL) | ACT | $4.10 | $4.00 | 2 | |||
| 36 | 415823 | CLAMP (LARGE) | NLA | | $2.55 | $2.49 | 2 | ||
| 37 | 8M0108355 | FUEL LINE, (57.00 Inches Bulk) | 99127109 | SS | | $52.33 | $50.55 | 1 | |
| 38 | 42425 | TEE | NLA | | $0.00 | $0.00 | 1 | ||
| 39 | 9072925 | HOSE | ACT | $19.20 | $18.73 | 1 | |||
| 40 | 8M0108355 | FUEL LINE, (57.00 Inches Bulk) | 99127109 | SS | | $52.33 | $50.55 | 1 | |
| 41 | 42813 | SCREW | ACT | $0.40 | $0.40 | 1 | |||
| 42 | 11379 | O-RING | ACT | $4.70 | $4.59 | 1 | |||
| - | 89221A88 | GASKET SET | NLA | | $0.00 | $0.00 | 1 |
