Ref # Current
Part Nbr		 Description Superceded
From		 Status Notes List
Price		 Online
Price		 Quan
Used		 Order
Quan

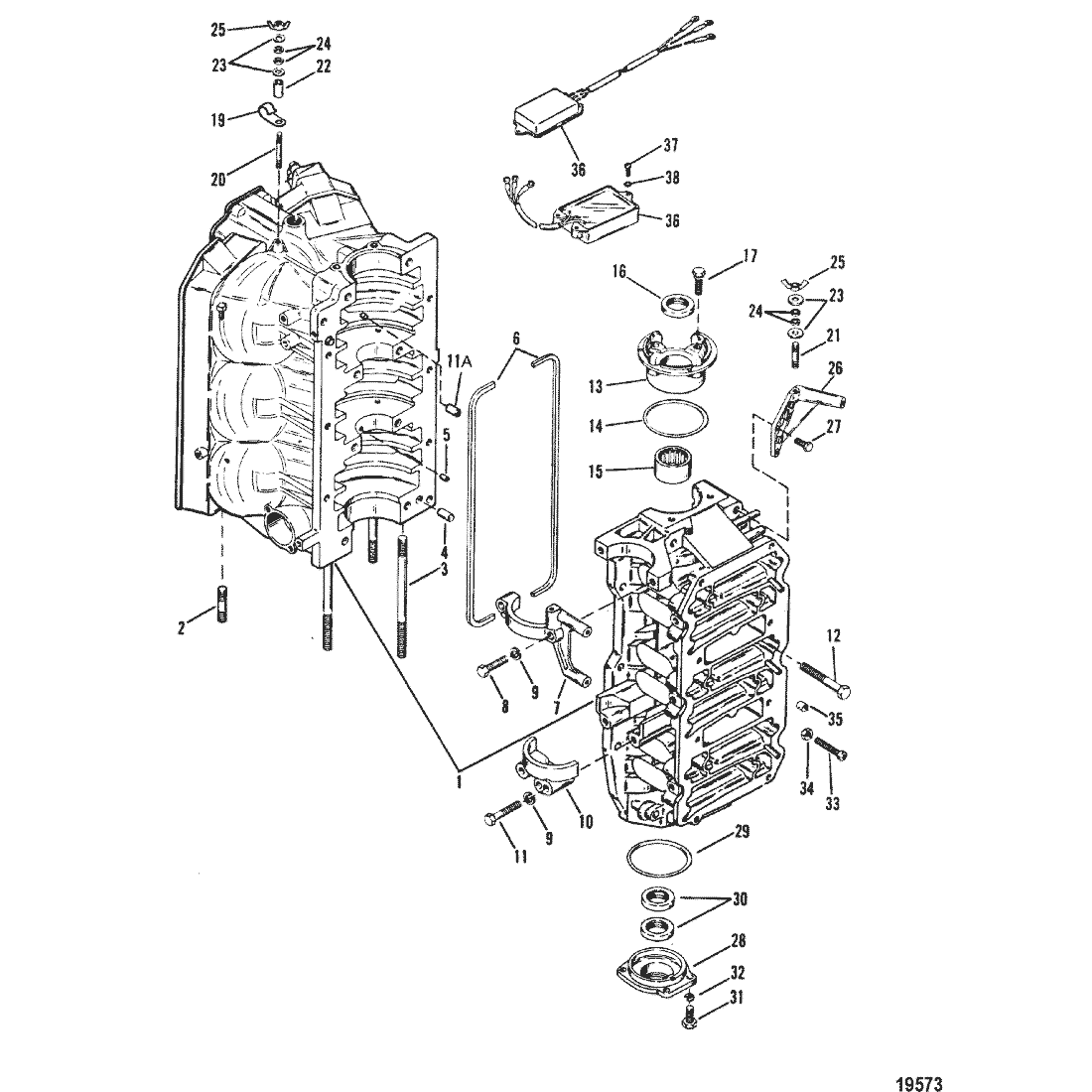

1 859211T2 CYLINDER BLOCK (135/150) 9765A7 SS $0.00 $0.00 1
1 9764T13 CYLINDER BLOCK (XR4/MAGNUM II) 9764A13 SS $0.00 $0.00 1
1 9764T12 CYLINDER BLOCK (175) 9764A12 SS $0.00 $0.00 1
1 9763T6 CYLINDER BLOCK (200) 9763A5 SS $0.00 $0.00 1
2 76175 --STUD, POWERHEAD (1-7/8") ACT $14.50 $14.14 4/6
2 8M0034455 --STUD, POWERHEAD (1-3/4") 818138 SS $14.50 $14.14 2
3 670654 --STUD, POWERHEAD (5-1/2") 67065 SS $17.00 $16.58 2
3 8M0034454 --STUD, POWERHEAD (6-3/4") 78438 SS $16.00 $15.61 2
4 43044 --PIN, Dowel, LOCATING 20033 SS $2.50 $2.44 2
5 8M0036405 --PIN (BEARING RACE) 67296 SS $4.40 $4.30 2
6 11338 --GASKET, SEALING ACT $3.00 $2.93 2
7 8M0088723 --COVER, STARTER MOTOR (UPPER) 42249 SS $128.42 $120.94 1
8 73657 --SCREW, (.312-18 x 1.50) ACT $3.40 $3.32 2
9 8M0204647 --LOCKWASHER, (.312) 26993 SS $1.80 $1.76 4
10 76867 --COVER (LOWER) ACT $27.67 $27.17 1
11 815549 --SCREW, (.312-18 x 2) 77065 SS $5.41 $5.27 2
11A 99448 --BUSHING ACT $7.50 $7.32 1
12 66717 SCREW, (.375-16 x 3.250) ACT $5.10 $4.98 8
12 74824 SCREW, (.312-18 x 1.250) ACT $1.80 $1.76 6
13 858521T1 UPPER END CAP ASSEMBLY, UPPER 9642A1 SS $342.83 $322.85 1
14 54029 --O-RING ACT $4.20 $4.10 1
15 16756A4 --ROLLER BEARING 16756A2 SS $72.50 $69.74 1
16 41953 --SEAL ACT $17.50 $17.19 1
17 30225 SCREW WITH LOCKWASHER, (.312-18 x 1.00) 69034 SS $0.90 $0.88 4
19 63153 J CLIP ACT $0.90 $0.88 1
20 15094 STUD, (.190-32 x 1.870) NLA $0.00 $0.00 1
21 8M0034435 STUD, (#10-32 x 1.00) 15093 SS $11.00 $10.73 2
22 67269 SPACER, FLYWHEEL COVER STUD ACT $4.70 $4.59 1
23 8M0204663 WASHER, FLYWHEEL COVER STUD 492211 SS $1.20 $1.18 6
24 72761 WASHER, FLYWHEEL COVER STUD ACT $1.56 $1.54 3
25 816874 WING NUT, (#10-32), FLYWHEEL COVER STUD ACT $5.10 $4.98 3
26 422482 BRACKET, FLYWHEEL COVER 42248 SS $50.17 $48.26 1
27 49668 SCREW, (.250-20 x .750), BRACKET TO CRANKCASE ACT $1.10 $1.08 2
28 7809T1 END CAP ASSEMBLY, LOWER 7809A1 SS $78.00 $75.03 1
29 62700 --O-RING, (3.250 Inside Diameter), END CAP ACT $4.00 $3.91 1
30 41953 --SEAL, END CAP ACT $17.50 $17.19 2
31 28636 SCREW, (.250-20 x .750) ACT $1.80 $1.76 4
32 26992 LOCKWASHER, (.250), LOWER END CAP SCREW ACT $1.20 $1.18 4
33 64022 SCREW, (.250-20 x 2.125), ADJUSTING - CYLINDER BLOCK ACT $3.70 $3.61 1
34 64015 NUT, ( #8-32), JAM - ADJUSTING SCREW ACT $2.81 $2.75 1
35 26852 CAP, NYLON - ADJUSTING SCREW ACT $4.00 $3.91 1
36 87076A10 IDLE SPEED CONTROL ASSEMBLY 87076A6 SS $0.00 $0.00 1
36 93772A11 ADVANCED MODULE 93772A5 SS $0.00 $0.00 1
37 690201 SCREW, (#10-32 x .875) 69020 SS $2.90 $2.83 3
38 38833 WASHER ACT $3.80 $3.71 3
- 812815R97 POWERHEAD (135/150) 812815A90 SS $0.00 $0.00
- 815908T90 POWERHEAD (XR4/MAGNUM II) 815908A90 SS $0.00 $0.00
- 812817T90 POWERHEAD (175) 812817A90 SS $0.00 $0.00
- 812827T91 POWERHEAD (200) 813043A90 SS $0.00 $0.00
- 815791A92 GASKET SET 815791A90 SS $207.50 $195.41 1
- 815791A92 GASKET SET 815809A90 SS $207.50 $195.41 1
- 815791A92 GASKET SET 815810A90 SS $207.50 $195.41 1
