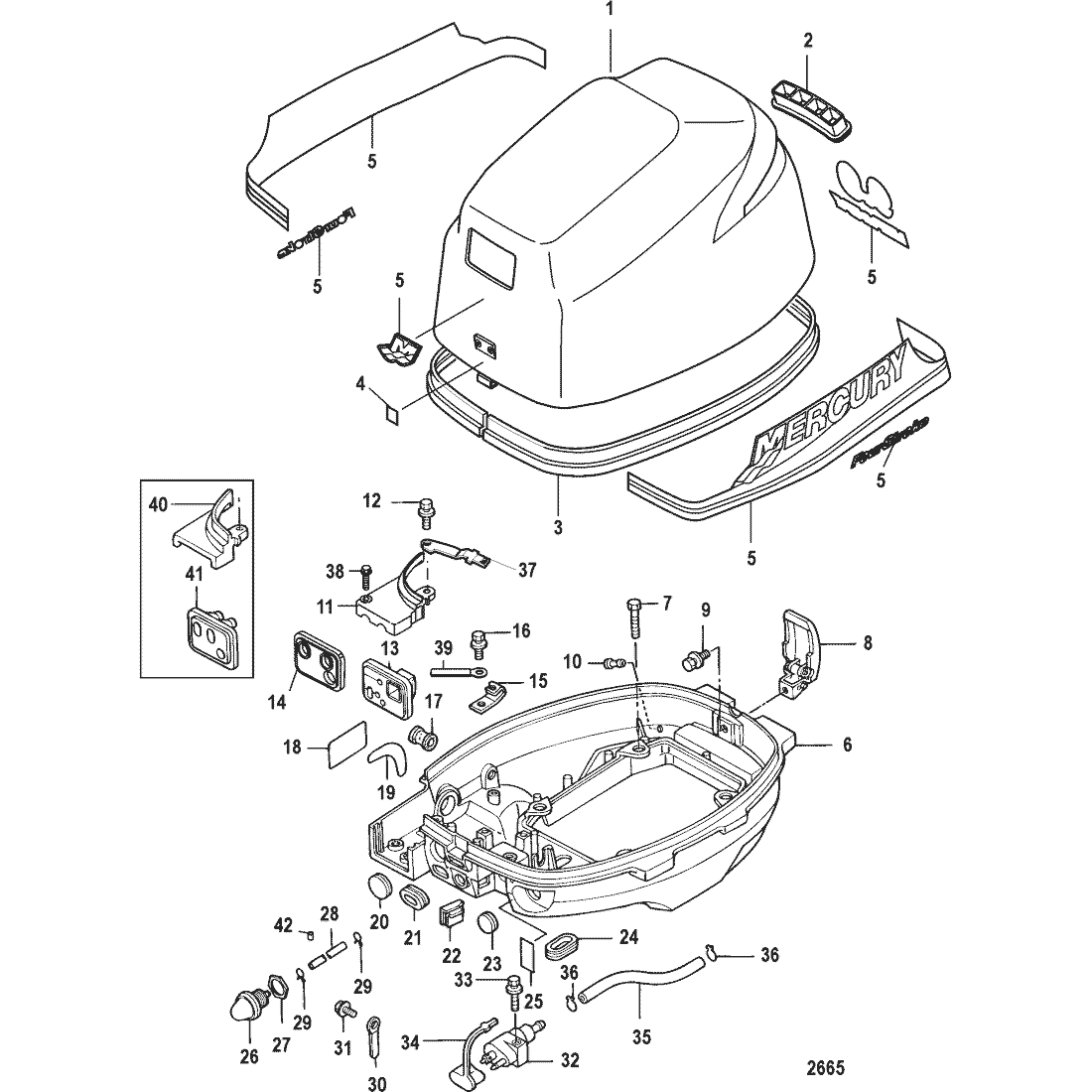

| Ref # | Current Part Nbr |
Description | Superceded From |
Status | Notes | List Price |
Online Price |
Quan Used |
Order Quan |
|---|---|---|---|---|---|---|---|---|---|
| 1 | 8M0074491 | TOP COWL ASSEMBLY, No decals | 8M0058611 | SS |
|
$663.15 | $623.89 | 1 | |
| 1 | 8M0062233 | TOP COWL ASSEMBLY, No decals | 8M0058623 | NLA |
|
$483.86 | $462.50 | 1 | |
| 2 | 895123 | --GUIDE, Air | ACT | $18.41 | $17.95 | 1 | |||
| 3 | 8M0157116 | --SEAL | 8M0079766 | NLA |
|
$145.50 | $137.02 | 1 | |
| 4 | 892904005 | DECAL, Oil Pressure | NLA |
|
$0.00 | $0.00 | 1 | ||
| 5 | 8M0081473 | DECAL SET, Mercury, Top Cowl | ACT | $105.75 | $99.59 | 1 | |||
| 5 | 8M0081475 | DECAL SET, Mercury, Top Cowl, ProKicker | ACT |
|
$55.50 | $53.38 | 1 | ||
| 5 | 8M0073681 | DECAL, Horsepower 8 | ACT | $50.17 | $48.26 | 1 | |||
| 5 | 8M0073682 | DECAL, Horsepower 9.9 | ACT | $64.42 | $61.96 | 1 | |||
| 5 | 8M0073685 | DECAL, BigFoot | ACT | $26.83 | $26.35 | 1 | |||
| 5 | 8M0088310 | DECAL, Command Thrust | ACT | $3.00 | $2.93 | 1 | |||
| 5 | 8M0073687 | DECAL, Horsepower 9.9 Pro | ACT | $15.90 | $15.51 | 1 | |||
| 5 | 8M0050645 | DECAL, M-icon | ACT | $6.80 | $6.64 | 1 | |||
| 5 | 8M0043700 | M-ICON, Red, 39mm | ACT |
|
$9.80 | $9.56 | 1 | ||
| 6 | 8M0130005 | BOTTOM COWL | 853777T07 | SS |
|
$336.17 | $316.57 | 1 | |
| 6 | 8M0130005 | BOTTOM COWL | 853777T07 | SS |
|
$336.17 | $316.57 | 1 | |
| 7 | 823042 | BOLT, Stainless Steel | 825702002 | SS |
|
$3.80 | $3.71 | 4 | |
| 8 | 8M0063135 | COWL LATCH ASSEMBLY | 8M0062099 | SS |
|
$35.33 | $34.70 | 1 | |
| 9 | 8230427 | BOLT | 82304234 | SS |
|
$4.10 | $4.00 | 1 | |
| 10 | 898101961 | NIPPLE | 8129603 | SS |
|
$4.20 | $4.10 | 1 | |
| 11 | 898101651 | COVER | ACT |
|
$39.33 | $38.63 | 1 | ||
| 11 | 898101651 | COVER | ACT |
|
$39.33 | $38.63 | 1 | ||
| 12 | 16832 | BOLT, (M6 x 16) | ACT |
|
$4.50 | $4.39 | 1 | ||
| 12 | 16832 | BOLT, (M6 x 16) | ACT |
|
$4.50 | $4.39 | 1 | ||
| 13 | 895175 | GROMMET | ACT |
|
$14.40 | $14.05 | 1 | ||
| 14 | 898101902 | GROMMET | ACT |
|
$15.90 | $15.51 | 1 | ||
| 14 | 898101902 | GROMMET | ACT |
|
$15.90 | $15.51 | 1 | ||
| 15 | 895176 | BRACKET, Starter Interlock Cable | ACT | $13.60 | $13.27 | 1 | |||
| 16 | 8230427 | BOLT | 82304234 | SS |
|
$4.10 | $4.00 | 1 | |
| 17 | 162284 | GROMMET | ACT |
|
$5.60 | $5.47 | 1 | ||
| 18 | NSS | NOT SOLD SEPARATE, Decal-Storage |
|
$0.00 | $0.00 | 1 | |||
| 19 | 859278003 | DECAL, Throttle Only | ACT |
|
$4.20 | $4.10 | 1 | ||
| 20 | 16226 | GROMMET | ACT |
|
$8.01 | $7.81 | 1 | ||
| 20 | 16226 | GROMMET | ACT |
|
$8.01 | $7.81 | A/R | ||
| 21 | 853709008 | GROMMET, Battery Cable | ACT |
|
$6.00 | $5.86 | 1 | ||
| 22 | 851850008 | GROMMET, Throttle Cable | ACT |
|
$4.50 | $4.39 | 1 | ||
| 23 | 16226 | GROMMET | ACT |
|
$8.01 | $7.81 | 1 | ||
| 24 | 853709007 | GROMMET, Shift Rod | ACT | $5.20 | $5.08 | 2 | |||
| 25 | 859278004 | DECAL, Start | ACT |
|
$1.90 | $1.86 | 1 | ||
| 26 | 895124 | PUMP ASSEMBLY, Priming | ACT |
|
$33.25 | $32.65 | 1 | ||
| 27 | 895177 | NUT | ACT |
|
$5.20 | $5.08 | 1 | ||
| 28 | 879194473 | HOSE, Rubber (300 mm) | 851848007 | NLA |
|
$15.00 | $14.63 | 1 | |
| 29 | 95224 | CLIP | ACT |
|
$3.60 | $3.52 | 2 | ||
| 30 | 8M0130961 | CLAMP | 95306 | SS |
|
$5.30 | $5.17 | 1 | |
| 31 | 8230427 | BOLT | 82304234 | SS |
|
$4.10 | $4.00 | 1 | |
| 32 | 8M0182334 | CONNECTOR, Fuel - Brass | 15781A5 | SS |
|
$31.08 | $30.53 | 1 | |
| 33 | 823042 | BOLT, Stainless Steel | 825702002 | SS |
|
$3.80 | $3.71 | 1 | |
| 34 | 878311 | CAP | ACT | $22.50 | $22.10 | 1 | |||
| 35 | 8M0057113 | HOSE, (330 mm) | 851848003 | NLA |
|
$27.75 | $27.25 | 1 | |
| 36 | 95395 | CLIP, Stainless Steel | ACT | $3.10 | $3.03 | 2 | |||
| 37 | 853752003 | BRACKET | ACT |
|
$8.01 | $7.81 | 1 | ||
| 38 | 823042 | BOLT, Stainless Steel | 825702002 | SS |
|
$3.80 | $3.71 | 1 | |
| 38 | 823042 | BOLT, Stainless Steel | 825702002 | SS |
|
$3.80 | $3.71 | 1 | |
| 39 | 8M0130961 | CLAMP | 95306 | SS |
|
$5.30 | $5.17 | 1 | |
| 40 | 895174 | COVER, Shift Lever Bracket | ACT |
|
$30.83 | $30.28 | 1 | ||
| 41 | 895175001 | GROMMET | ACT |
|
$11.30 | $11.02 | 1 | ||
| 42 | 898103161 | ORFICE | NLA |
|
$0.00 | $0.00 | 1 | ||
| - | 8M0076194 | DECAL, Start Procedure | ACT | $2.60 | $2.54 | 1 |
