| Ref # | Current Part Nbr |
Description | Superceded From |
Status | Notes | List Price |
Online Price |
Quan Used |
Order Quan |
|---|---|---|---|---|---|---|---|---|---|

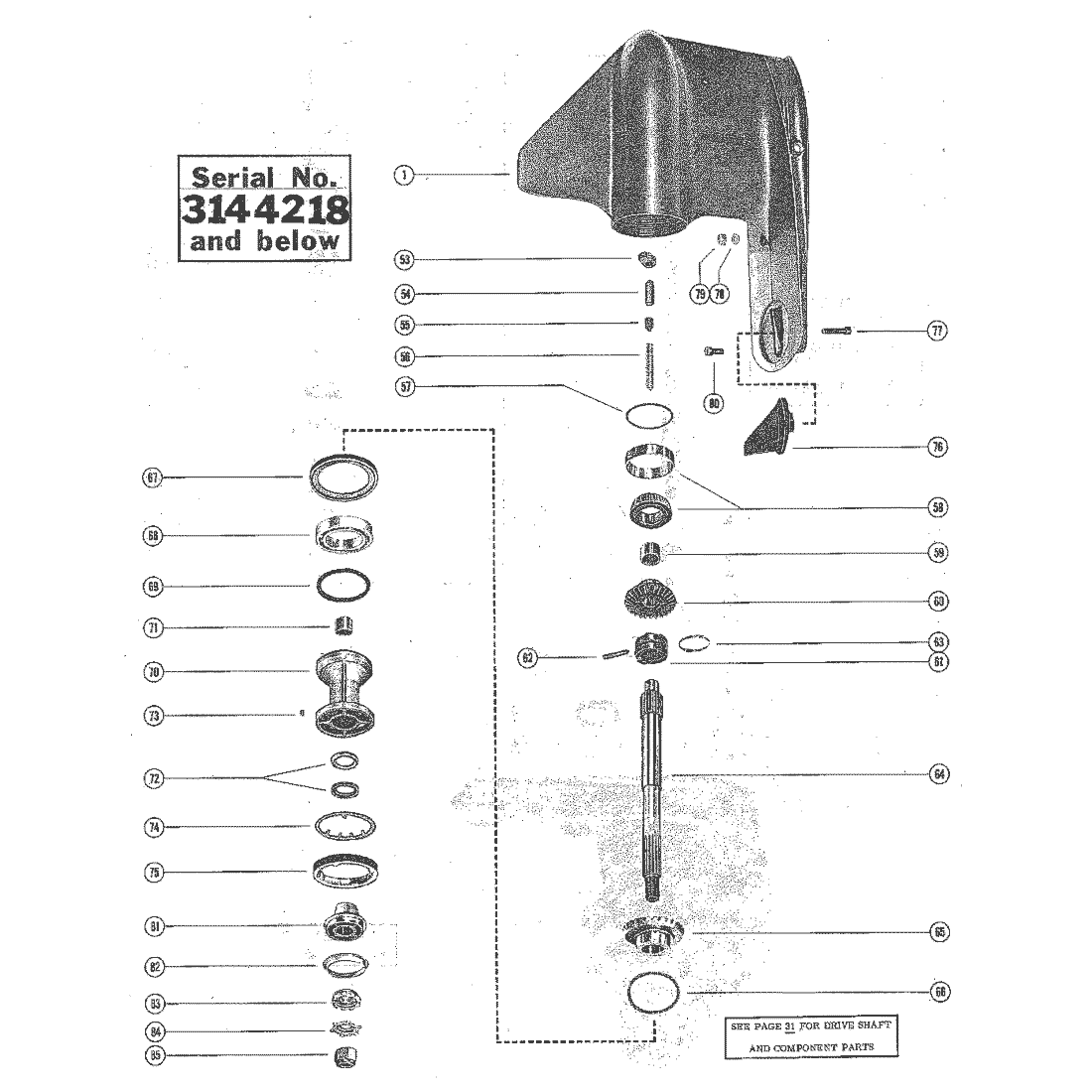

| - | 7339A2 | GEAR HOUSING ASSEMBLY, COMPLETE (SHORT SHAFT) | 3486A22 | SS |
|
$0.00 | $0.00 | 1 | |
| - | 7333A25 | GEAR HOUSING ASSEMBLY, COMPLETE (LONG SHAFT) | 3486A23 | SS |
|
$0.00 | $0.00 | 1 | |
| - | 7339A2 | GEAR HOUSING ASSEMBLY, COMPLETE (SHORT SHAFT) | 3912A4 | SS |
|
$0.00 | $0.00 | 1 | |
| - | 7333A25 | GEAR HOUSING ASSEMBLY, COMPLETE (LONG SHAFT) | 3912A5 | SS |
|
$0.00 | $0.00 | 1 | |
| 1 | 5244A14 | --GEAR HOUSING ASSEMBLY -SEE PAGE 31 FOR BREAKDOWN | 3486A4 | SS |
|
$0.00 | $0.00 | 1 | |
| 1 | 5244A14 | --GEAR HOUSING ASSEMBLY -SEE PAGE 31 FOR BREAKDOWN | 3912A6 | SS |
|
$0.00 | $0.00 | 1 | |
| 53 | 760394 | --CAM, SHIFT | 54346 | SS |
|
$38.17 | $37.48 | 1 | |
| 54 | 30625 | --FOLLOWER, CAM | ACT | $47.17 | $46.32 | 1 | |||
| 55 | 30624 | --SLIDE, CROSS PIN | NLA |
|
$0.00 | $0.00 | 1 | ||
| 56 | 30622 | --SPRING, COMPRESSION-CAM FOLLOWER | ACT | $6.70 | $6.54 | 1 | |||
| 57 | 30923A1 | --SHIM, BEARING OUTER RACE TO GEAR HOUSING (.002-3-5-10) | NLA |
|
$0.00 | $0.00 | AR | ||
| 58 | 30894A1 | --TAPERED ROLLER BEARING ASSEMBLY | ACT | $60.50 | $58.19 | 1 | |||
| 59 | 30895T | --BEARING, ROLLER-FORWARD GEAR | 30895 | SS |
|
$20.75 | $20.38 | 1 | |
| 60 | 53982A2 | --FORWARD GEAR ASSEMBLY | 53982 | SS |
|
$0.00 | $0.00 | 1 | |
| 61 | 822539T | --RATCHET, SLIDING CLUTCH | 34239 | SS |
|
$299.42 | $281.97 | 1 | |
| 62 | 8M0100263 | --PIN, CROSS-RATCHET TO PROPELLER SHAFT | 30632 | SS |
|
$4.50 | $4.39 | 1 | |
| 63 | 30893 | --SPRING, RETAINING-CROSS PIN | ACT | $2.70 | $2.64 | 1 | |||
| 64 | 93003 | --SHAFT, PROPELLER | 52542 | SS |
|
$680.86 | $640.56 | 1 | |
| 65 | 53983 | --REVERSE GEAR ASSEMBLY | NLA |
|
$0.00 | $0.00 | 1 | ||
| 66 | 29955A1 | --SHIM, THRUST WASHER TO GEAR HOUSING (.002-3-5-10) | ACT | $28.16 | $27.66 | AR | |||
| 67 | 71143A1 | --WASHER, THRUST-BEARING CARRIER TO GEAR HOUSING | 30633 | SS |
|
$0.00 | $0.00 | 1 | |
| 68 | 31265 | --BEARING, BALL-REVERSE GEAR | ACT | $102.00 | $96.06 | 1 | |||
| 69 | 29976 | --"O"RING, BEARING CARRIER | ACT | $6.10 | $5.95 | 1 | |||
| 70 | 52132T1 | --BEARING CARRIER ASSEMBLY | 52132A1 | SS |
|
$0.00 | $0.00 | 1 | |
| 71 | 30956T | ----BEARING, ROLLER-BEARING CARRIER | 30956 | SS |
|
$19.23 | $18.85 | 1 | |
| 72 | 8M0204670 | ----OIL SEAL, BEARING CARRIER | 30550 | SS |
|
$19.20 | $18.73 | 2 | |
| 73 | 30281 | --KEY, LOCATING-BEARING CARRIER | ACT | $3.00 | $2.93 | 1 | |||
| 74 | 52700 | --TAB WASHER, GEAR HOUSING COVER | ACT | $26.58 | $26.11 | 1 | |||
| 75 | 52699 | --COVER, GEAR HOUSING | NLA |
|
$0.00 | $0.00 | 1 | ||
| 76 | 31640Q4 | --TRIM TAB ASSEMBLY, GEAR HOUSING | 31640A1 | SS |
|
$18.49 | $18.17 | 1 | |
| 77 | 32470 | --SCREW, TRIM TAB TO GEAR HOUSING (1 3/4") | 47580 | SS |
|
$4.20 | $4.10 | 1 | |
| 77 | 66024 | --SCREW, TRIM TAB TO GEAR HOUSING (1 3/4") | 55726 | SS |
|
$9.70 | $9.46 | 1 | |
| 78 | 45176 | --WASHER, GEAR HOUSING TO DRIVE SHAFT HOUSING STUDS | ACT | $1.50 | $1.47 | 2 | |||
| 79 | 8M0204653 | NUT, GEAR HOUSING TO DRIVE SHAFT HOUSING STUDS | 34933 | SS |
|
$5.29 | $5.17 | 2 | |
| 80 | 46471 | SCREW, GEAR HOUSING TO DRIVE SHAFT HOUSING (1") | 34535 | SS |
|
$0.00 | $0.00 | 1 | |
| 81 | 65091Q01 | THRUST HUB AND WASHER ASSEMBLY | 46961A1 | SS |
|
$41.78 | $41.02 | 1 | |
| 82 | 29590 | --WASHER, CUPPED-THRUST HUB | NLA |
|
$0.00 | $0.00 | 1 | ||
| 83 | 31211Q03 | WASHER, SPLINED-PROPELLER NUT | 31211 | SS |
|
$14.11 | $13.87 | 1 | |
| 84 | 816629Q | TAB WASHER, PROPELLER NUT | 31210 | SS |
|
$5.62 | $5.52 | 1 | |
| 85 | 52707Q1 | NUT, PROPELLER | 52707 | SS |
|
$15.63 | $15.36 | 1 |
