Ref # Current
Part Nbr		 Description Superceded
From		 Status Notes List
Price		 Online
Price		 Quan
Used		 Order
Quan

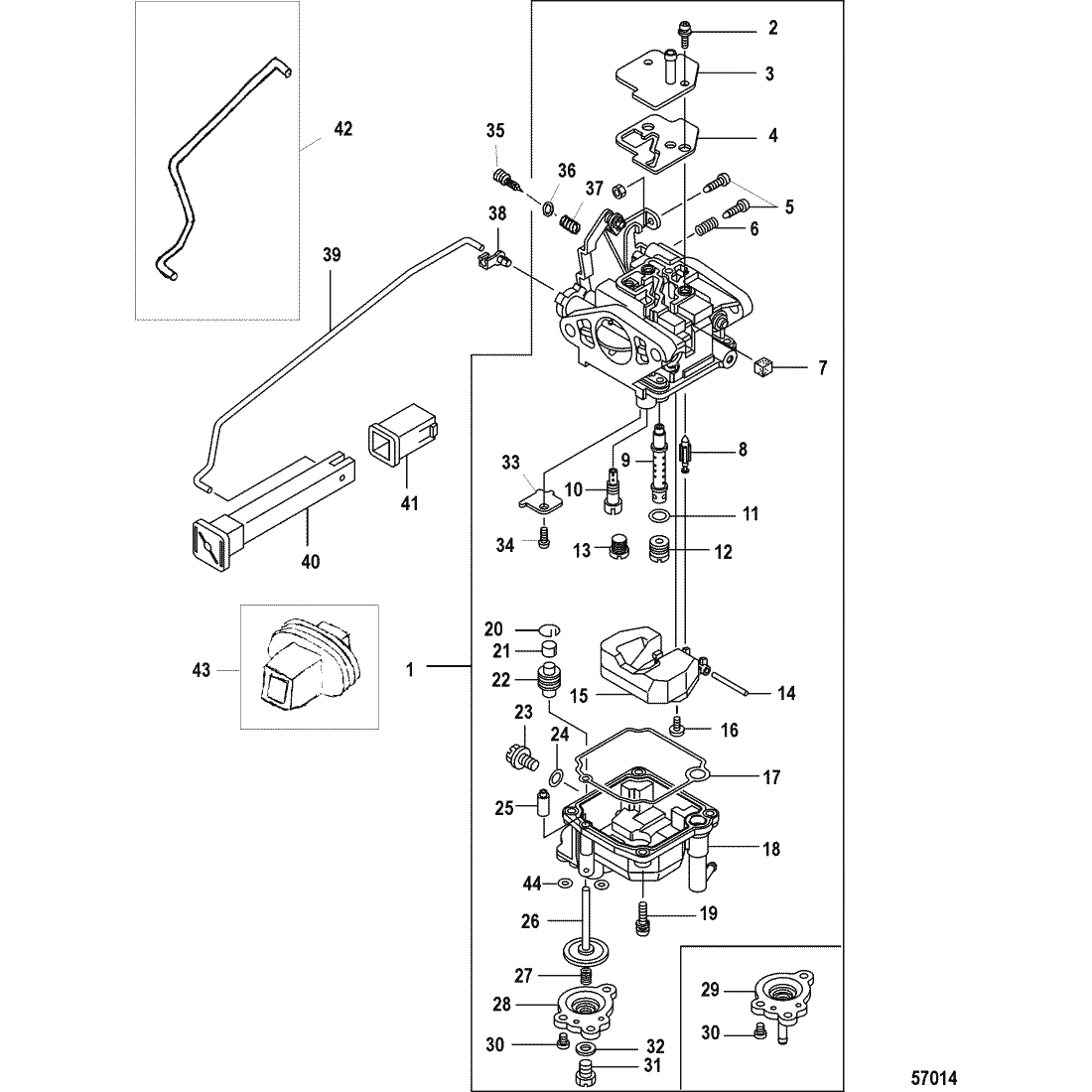

1 8M0176126 CARBURETOR 895110T01 SS $726.14 $683.16 1
1 8M0176126 CARBURETOR 895110T11 NLA $726.14 $683.16 1
1 8M0176126 CARBURETOR 895110A03 SS $726.14 $683.16 1
1 8M0176126 CARBURETOR 895110A13 SS $726.14 $683.16 1
1 8M0176126 CARBURETOR 895110A18 SS $726.14 $683.16 1
1 8M0176126 CARBURETOR 895110T15 NLA $726.14 $683.16 1
1 8M0176130 CARBURETOR 895110T02 SS $783.93 $737.53 1
1 8M0176130 CARBURETOR 895110T12 SS $783.93 $737.53 1
1 8M0176130 CARBURETOR 895110A04 SS $783.93 $737.53 1
1 8M0176130 CARBURETOR 895110A14 SS $783.93 $737.53 1
1 8M0176130 CARBURETOR 895110A19 SS $783.93 $737.53 1
1 8M0176130 CARBURETOR 895110A16 SS $783.93 $737.53 1
1 8M0174374 CARBURETOR 895111T01 SS $421.86 $403.24 1
1 8M0174374 CARBURETOR 895111T05 NLA $421.86 $403.24 1
1 8M0174374 CARBURETOR 895111A02 SS $421.86 $403.24 1
1 8M0174374 CARBURETOR 895111A06 NLA $421.86 $403.24 1
1 8M0176128 CARBURETOR 895111A03 SS $329.34 $310.14 1
1 8M0176128 CARBURETOR 895111A07 NLA $329.34 $310.14 1
1 8M0174374 CARBURETOR 895111A04 SS $421.86 $403.24 1
1 8M0174374 CARBURETOR 895111A08 SS $421.86 $403.24 1
2 809571003 --SCREW ACT $5.20 $5.08 2
3 855540002 --COVER ACT $23.84 $23.41 1
4 855541003 --GASKET ACT $15.00 $14.63 1
5 803509A17 --SCREW, Idle Adjustment (15 mm) 803509012 NLA $18.58 $18.25 2
5 803509A17 --SCREW AND SPRING KIT, (18 mm) ACT $18.58 $18.25 2
6 16264003 ----SPRING, (14 mm) ACT $5.10 $4.98 1
6 803509A17 --SPRING, (11 mm) 162641 NLA $18.58 $18.25 1
7 895112002 --GROMMET 895112 SS $9.70 $9.46 1
8 809570002 --FLOAT VALVE ACT $37.58 $36.91 1
9 802700003 --MAIN NOZZLE ACT $55.17 $53.06 1
9 802700003 --MAIN NOZZLE ACT $55.17 $53.06 1
9 802700008 --MAIN NOZZLE ACT $47.08 $46.24 1
9 802700004 --MAIN NOZZLE ACT $48.67 $47.79 1
9 802700007 --MAIN NOZZLE ACT $0.00 $0.00 1
10 803689003 --JET, Pilot (#39) ACT $54.50 $52.42 1
10 803689006 --JET, Pilot (#37) ACT $0.00 $0.00 1
10 803689003 --JET, Pilot (#39) ACT $54.50 $52.42 1
10 803689007 --JET, Pilot (#40) ACT $50.17 $48.26 1
11 825057004 --O-RING ACT $7.80 $7.61 1
12 8M0172936 --JET, Main (#92) 802701004 SS $28.75 $28.23 1
12 8M0172936 --JET, Main (#92) 802701004 SS $28.75 $28.23 1
12 802701009 --JET, Main (#93) ACT $22.42 $22.02 1
12 802701005 --JET, Main (#76) ACT $23.00 $22.59 1
12 802701008 --JET, Main (#71) ACT $0.00 $0.00 1
13 802702001 --PLUG ACT $17.00 $16.58 1
13 802702002 --PLUG ACT $18.10 $17.65 1
13 802702002 --PLUG ACT $18.10 $17.65 1
14 162561 --PIN, Float Arm ACT $7.80 $7.61 1
15 162532 --FLOAT ACT $27.25 $26.76 1
16 16196 --SCREW ACT $4.20 $4.10 1
17 802699002 --GASKET ACT $13.40 $13.13 1
18 802690004 --FLOAT BOWL ACT $158.58 $149.34 1
18 802690004 --FLOAT BOWL ACT $158.58 $149.34 1
18 802694010 --FLOAT BOWL ACT $178.58 $168.18 1
18 802690009 --FLOAT BOWL ACT $183.75 $173.04 1
18 802690009 --FLOAT BOWL ACT $183.75 $173.04 1
18 802694010 --FLOAT BOWL 802694011 SS $178.58 $168.18 1
19 16260 --SCREW, (M4 x 12) ACT $4.99 $4.88 4
20 8M0123420 --RING, Retaining 895113 SS $8.01 $7.81 1
21 895114 --CAP ACT $6.00 $5.86 1
22 895115 --BOOT, Rubber ACT $9.40 $9.17 1
23 809578005 --SCREW, Drain ACT $13.70 $13.36 1
24 802691 --GASKET ACT $5.80 $5.66 1
25 851812005 --CHECK VALVE ACT $20.92 $20.54 1
26 853830001 --PLUNGER ACT $39.99 $39.43 1
27 895116 --SPRING ACT $4.50 $4.39 1
28 895117001 --COVER ACT $21.50 $21.12 1
29 895117 --COVER ACT $30.24 $29.71 1
30 855544013 --SCREW ACT $3.60 $3.52 3
31 803509013 --SCREW, Drain ACT $16.83 $16.53 1
32 855567002 --GASKET ACT $8.20 $8.00 1
33 802705001 --PLATE ACT $9.30 $9.07 1
34 851813002 --SCREW ACT $3.70 $3.61 1
35 803509010 --SCREW, Pilot ACT $51.67 $49.70 1
36 895132001 --O-RING ACT $7.80 $7.61 1
37 16266004 --SPRING ACT $3.00 $2.93 1
38 16333 ROD, Snap ACT $7.10 $6.93 1
39 855561007 ROD, Choke Link ACT $17.20 $16.78 1
40 8M0155127 KNOB, Choke 855565 SS $13.80 $13.46 1
40 8M0155127 KNOB, Choke 855565 SS $13.80 $13.46 1
40 8M0155127 KNOB, Choke 855565001 SS $13.80 $13.46 1
40 8M0155127 KNOB, Choke 855565001 SS $13.80 $13.46 1
41 851858005 BUSHING ACT $7.80 $7.61 1
42 8M0121496 ROD, Choke Link 855561008 SS $60.17 $57.87 1
43 881305007 GROMMET ACT $53.67 $51.62 1
44 898103224 O-RING ACT $5.60 $5.47 2
- 8M0044576 KIT, Carb Repair ACT $190.58 $177.88 1
