| Ref # | Current Part Nbr |
Description | Superceded From |
Status | Notes | List Price |
Online Price |
Quan Used |
Order Quan |
|---|---|---|---|---|---|---|---|---|---|

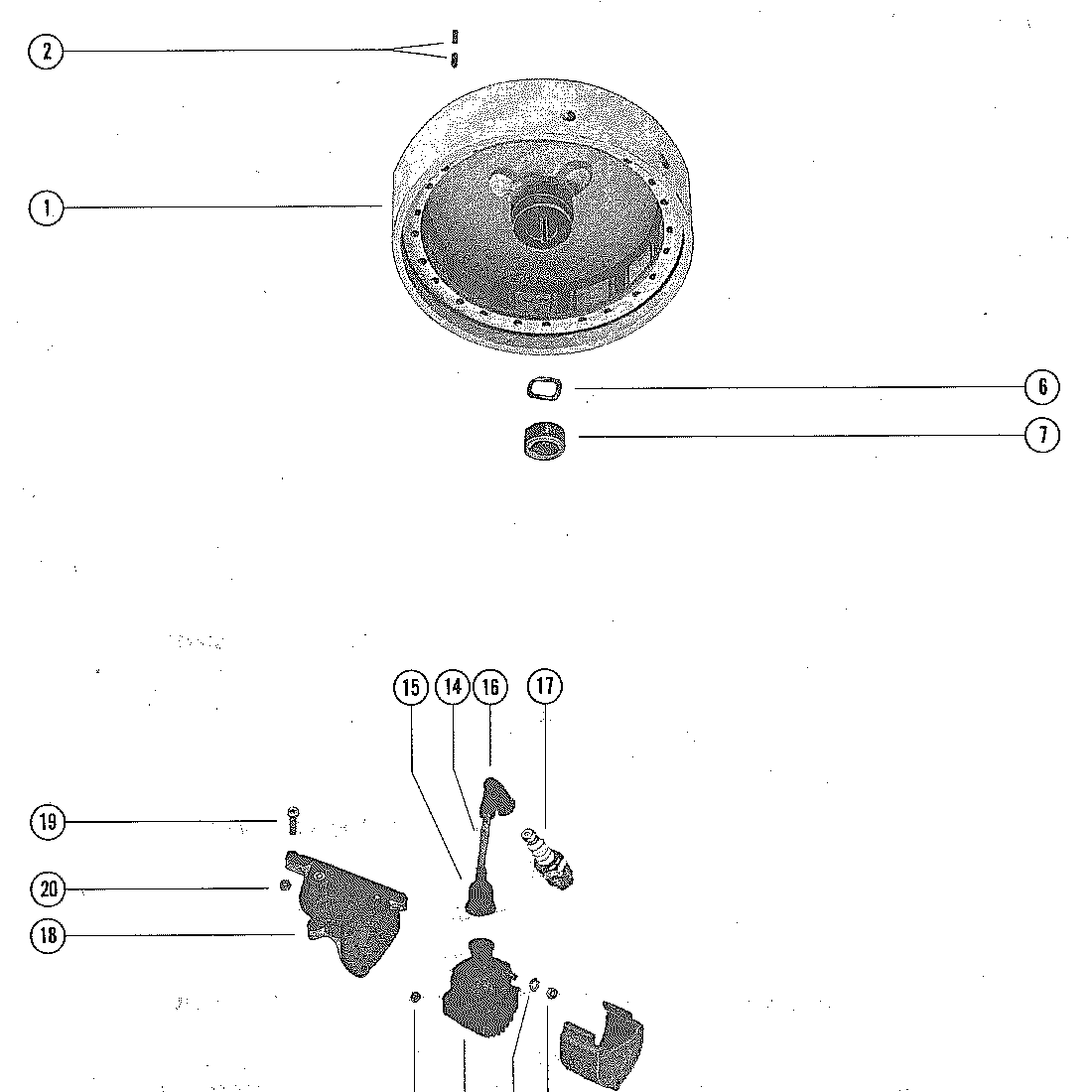

| 1 | 4473A1 | FLYWHEEL ASSEMBLY | NLA |
|
$0.00 | $0.00 | 1 | ||
| 2 | 20094 | KEY, FLYWHEEL DRIVE | ACT | $1.80 | $1.76 | 2 | |||
| 3 | 62701 | "O" RING, FLYWHEEL NUT | 36284 | SS |
|
$5.10 | $4.98 | 1 | |
| 4 | 36245 | WASHER, FLYWHEEL NUT | 36282 | SS |
|
$0.00 | $0.00 | 1 | |
| 5 | 20696 | NUT, FLYWHEEL | NLA |
|
$0.00 | $0.00 | 1 | ||
| 6 | 35629 | WASHER, WAVE - BREAKER CAM TENSION | NLA |
|
$1.24 | $1.21 | 1 | ||
| 7 | 4466 | CAM, BREAKER | NLA |
|
$0.00 | $0.00 | 1 | ||
| 8 | 4528T2 | COIL ASSEMBLY, IGNITION | 4528A1 | SS |
|
$175.75 | $165.51 | 2 | |
| 9 | 26996 | LOCKWASHER, IGNITION COIL TERMINAL | ACT | $1.20 | $1.18 | 4 | |||
| 10 | 45076 | NUT, IGNITION COIL TERMINAL | ACT | $1.80 | $1.76 | 4 | |||
| 11 | 66355 | COVER, IGNITION COIL | 61532 | SS |
|
$0.00 | $0.00 | 2 | |
| 12 | 61530 | SCREW, COIL COVER TO REAR SUPPORT BRACKET (2 1/8") | ACT | $2.60 | $2.54 | 6 | |||
| 13 | 27164 | NUT, COIL COVER SCREW | ACT | $1.00 | $0.98 | 6 | |||
| 14 | 813715A1 | LEAD ASSEMBLY, HIGH TENSION | 47899A9 | SS |
|
$31.75 | $31.18 | 2 | |
| 15 | 2854T01 | NIPPLE, IGNITION COIL | 2854 | SS |
|
$3.00 | $2.93 | 2 | |
| 16 | 63709A1 | PROTECTOR ASSEMBLY, SPARK PLUG | 47604A1 | SS |
|
$8.20 | $8.00 | 2 | |
| 17 | 896329833 | SPARK PLUG (AC V40FFK) | 58194 | SS |
|
$14.49 | $14.14 | 2 | |
| 18 | 56352 | BRACKET, COIL SUPPORT | NLA |
|
$0.00 | $0.00 | 1 | ||
| 19 | 64278 | SCREW, BRACKET TO CYLINDER BLOCK (1") | 31294 | SS |
|
$0.00 | $0.00 | 2 | |
| 19 | 22968 | SCREW, BRACKET TO CYLINDER BLOCK (1 1/4") | 56354 | SS |
|
$1.24 | $1.21 | 1 | |
| 20 | 8M0207775 | NUT, BRACKET SCREW | 46887 | SS |
|
$9.80 | $9.56 | 2 |
