| Ref # | Current Part Nbr |
Description | Superceded From |
Status | Notes | List Price |
Online Price |
Quan Used |
Order Quan |
|---|---|---|---|---|---|---|---|---|---|

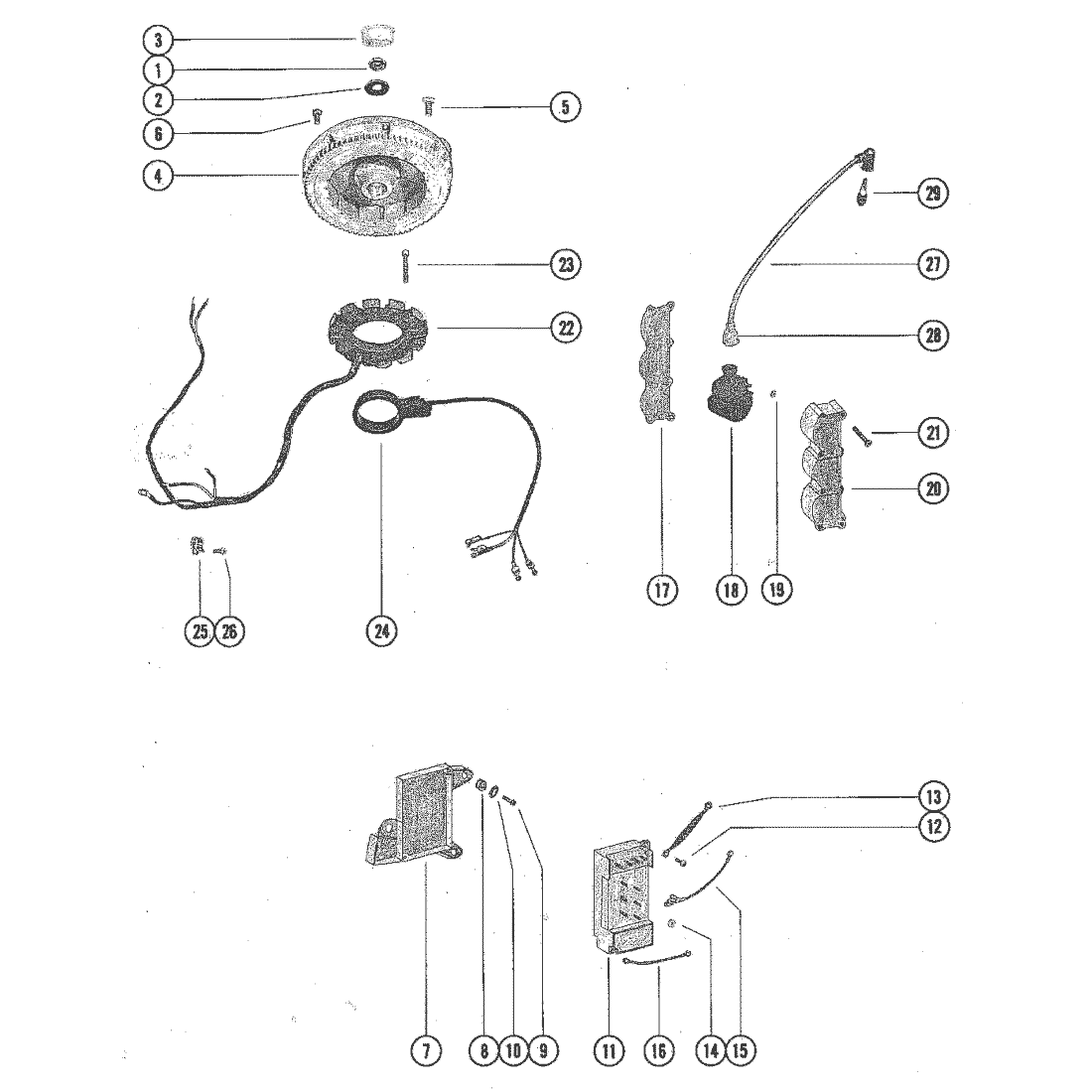

| 1 | 52901 | NUT, FLYWHEEL | ACT | $13.21 | $12.88 | 1 | |||
| 2 | 33001 | WASHER, FLYWHEEL NUT | 68229 | SS |
|
$11.60 | $11.32 | 1 | |
| 3 | 45907 | PLUG, FLYWHEEL PULLER THREADS | ACT | $7.10 | $6.93 | 1 | |||
| 4 | 8722A5 | FLYWHEEL ASSWMBLY | 5977A12 | SS |
|
$0.00 | $0.00 | 1 | |
| 4 | 8722A5 | FLYWHEEL ASSEMBLY | 5977A25 | SS |
|
$0.00 | $0.00 | 1 | |
| 5 | 68997 | --SCREW, PLATE/HUB TO FLEXIBLE PLATE (3/4") | ACT | $1.21 | $1.19 | 8 | |||
| 6 | 32417 | --SCREW, FLEXIBLE PLATE TO FLYWHEEL (5/8") | ACT | $1.10 | $1.08 | 8 | |||
| 7 | 889351 | PLATE, SWITCH BOX | 73627 | SS |
|
$0.00 | $0.00 | 1 | |
| 8 | 57009001 | GROMMET, SWITCH BOX PLATE | 57009 | SS |
|
$10.87 | $10.72 | 3 | |
| 9 | 824941 | SCREW | 59645 | SS |
|
$15.00 | $14.63 | 3 | |
| 10 | 56720 | WASHER, SWITCH BOX PLATE SCREW | ACT | $1.80 | $1.76 | 3 | |||
| 11 | 7778A12 | SWITCH BOX ASSEMBLY | 5524A1 | SS |
|
$400.49 | $372.27 | 1 | |
| 12 | 26251 | SCREW, SWITCH BOX TO PLATE (13/16") | NLA |
|
$0.00 | $0.00 | 2 | ||
| 13 | 46933A6 | WIRE ASSEMBLY, SWITCH BOX SCREW | NLA |
|
$0.00 | $0.00 | 2 | ||
| 14 | 45076 | NUT, SWITCH BOX TERMINAL | ACT | $1.80 | $1.76 | 10 | |||
| 15 | 60443A3 | WIRE ASSEMBLY, SWITCH BOX TO COIL (GREEN) | NLA |
|
$0.00 | $0.00 | 1 | ||
| 15 | 62822A1 | WIRE ASSEMBLY | NLA |
|
$0.00 | $0.00 | 1 | ||
| 15 | 68896A1 | WIRE ASSEMBLY | NLA |
|
$0.00 | $0.00 | 1 | ||
| 16 | 60466A17 | WIRE ASSEMBLY, SWITCH BOX TO COIL (BLACK) | NLA |
|
$0.00 | $0.00 | 3 | ||
| 17 | 73439 | PLATE, MOUNTING-IGNITION COIL | NLA |
|
$0.00 | $0.00 | 1 | ||
| 18 | 8M0166172 | IGNITION COIL ASSEMBLY | 5748A2 | SS |
|
$158.67 | $149.42 | 3 | |
| 18 | 832757A4 | IGNITION COIL ASSEMBLY | 4995A2 | SS |
|
$121.42 | $114.34 | 3 | |
| 19 | 45076 | NUT, IGNITION COIL TERMINAL | ACT | $1.80 | $1.76 | 6 | |||
| 20 | 43542 | COVER, IGNITION COIL | 73218 | SS |
|
$0.00 | $0.00 | 1 | |
| 21 | 46368 | SCREW, COVER TO MOUNTING PLATE (2") | 66944 | SS |
|
$0.00 | $0.00 | 6 | |
| 22 | 5704A7 | STATOR ASSEMBLY | 5704A2 | SS |
|
$302.08 | $284.48 | 1 | |
| 22 | 5704A7 | STATOR ASSEMBLY | 5704A5 | SS |
|
$302.08 | $284.48 | 1 | |
| 23 | 63136 | SCREW, STATOR TO UPPER END CAP (7/8") | NLA |
|
$0.00 | $0.00 | 4 | ||
| 24 | 96455A8 | TRIGGER PLATE ASSEMBLY | 68162A6 | SS |
|
$262.00 | $246.73 | 1 | |
| 25 | 28700 | CLAMP, STATOR LEADS ATTACHING | NLA |
|
$0.00 | $0.00 | 1 | ||
| 26 | 98253 | SCREW, CLAMP TO CRANKCASE (1/2") | 20031 | SS |
|
$1.10 | $1.08 | 1 | |
| 27 | 813715A1 | WIRE ASSEMBLY, SPARK PLUG | 73451A8 | SS |
|
$31.75 | $31.18 | 3 | |
| 28 | 2854T01 | BOOT, IGNITION COIL END | 2854 | SS |
|
$3.00 | $2.93 | 3 | |
| 29 | 896329827 | SPARK PLUG (AC#V40FFM) | 57451 | SS |
|
$15.59 | $15.22 | 3 | |
| 29 | 896329898 | SPARK PLUG | 68098 | SS |
|
$19.69 | $19.21 | 3 |
