Ref # Current
Part Nbr		 Description Superceded
From		 Status Notes List
Price		 Online
Price		 Quan
Used		 Order
Quan

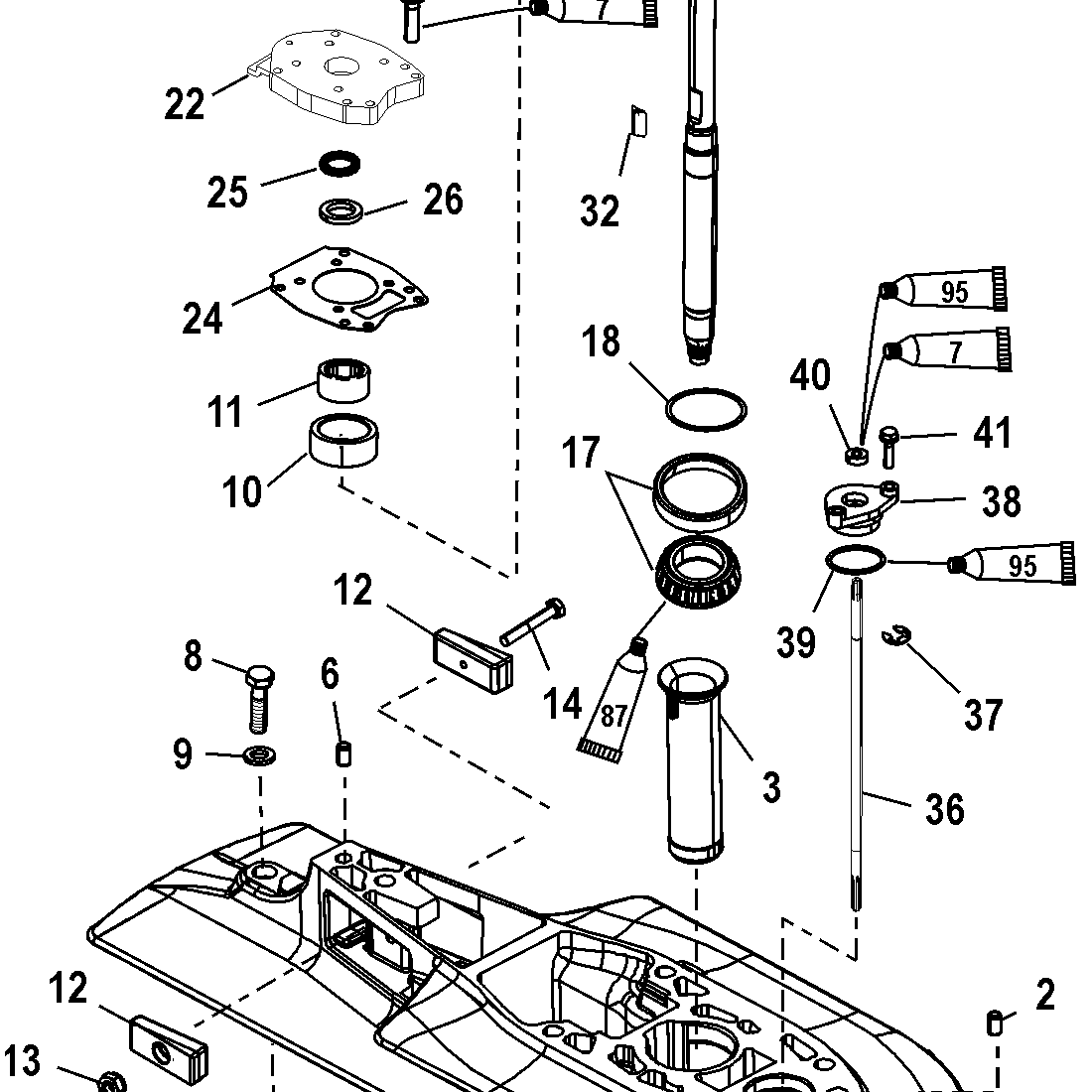

- 8M0118186 GEAR HOUSING ASSEMBLY, Complete (Long) 893681T02 SS $4,292.85 $3,935.35 1
- 8M0118188 GEAR HOUSING ASSEMBLY, Complete (X-Long) 8M0053765 SS $4,292.85 $3,935.35 1
1 8M0118594 --GEAR HOUSING ASSEMBLY, Basic 893681T04 SS $1,569.49 $1,438.47 1
2 8M0084244 ----PIN, Dowel - With Hole (.375 x .625) , Front 43043 SS $3.29 $3.21 1
3 43046 ----TUBE, Oiler ACT $28.99 $28.40 1
4 79953Q04 ----SCREW KIT, Drain ACT $7.49 $7.32 3
5 8M0204693 ------SEAL 830749 SS $5.19 $5.08 3
6 43044 ----PIN, Dowel - Without Hole (.375 x .625), Rear ACT $2.49 $2.43 1
7 8M0236553 ----TRIM TAB 31640T5 SS $26.99 $26.43 1
8 825427 ----SCREW, (.437-14 x 1.250) Stainless Steel ACT $6.99 $6.83 1
9 451761 ----WASHER, (.453 x .812 x .105) Black Oxide ACT $2.59 $2.53 1
10 43040T1 ----CARRIER ASSEMBLY ACT $78.99 $76.01 1
11 NSS ------NOT SOLD SEPARATE, Needle Bearing $0.00 $0.00 1
12 826134Q ----ANODE ACT $16.49 $16.09 2
13 401386 ----NUT, (M6) Stainless Steel ACT $5.09 $4.98 1
14 4000333 ----SCREW, (M6 x 40) ACT $4.09 $4.00 1
15 NSS --NOT SOLD SEPARATE, Pinion Gear - Part of Forward Gear Kit $0.00 $0.00 1
16 35921 --NUT, (.625-18) ACT $7.99 $7.81 1
17 883047A1 --BEARING ASSEMBLY, Tapered Roller ACT $92.99 $89.29 1
18 8M0063265 --SHIM SET 44492A1 NLA $65.99 $63.24 1
19 859105A1 --DRIVESHAFT ASSEMBLY ACT $898.99 $845.58 1
19 875222A1 --DRIVESHAFT ASSEMBLY ACT $683.99 $643.31 1
20 42461A1 ----SLEEVE/RING KIT ACT $26.69 $26.19 1
21 NSS ------NOT SOLD SEPARATE, Ring-Seal $0.00 $0.00 1
22 8M0113262 --COVER ASSEMBLY, Water Pump 43055A4 NLA $148.99 $140.32 1
23 430331 ----GASKET ACT $11.09 $10.83 1
24 8M0214931 ----GASKET 430472 SS $13.69 $13.36 1
25 43036 ----SEAL, Oil, Lower ACT $19.89 $19.41 1
26 43035 ----SEAL, Oil, Upper ACT $19.89 $19.41 1
27 8172771 ----GASKET ACT $5.69 $5.56 1
28 817275A2 --HOUSING KIT, Upper Water Pump ACT $104.99 $98.73 1
29 8M0204709 ----FACEPLATE 8172761 SS $14.59 $14.24 1
30 82684430 ----SCREW, (M6 x 30) ACT $2.69 $2.62 4
31 8M0151044 --COUPLER 893855 SS $10.39 $10.15 1
32 8M0204723 --KEY 43037 SS $4.39 $4.30 1
33 43026T2 --IMPELLER ACT $36.49 $35.81 1
34 82684425 --SCREW, (M6 x 25) ACT $2.39 $2.33 6
- 816575A2 --SEAL KIT ACT $10.89 $10.63 1
35 8M0142851 ----SEAL, Face 8M2014338 SS $0.30 $0.30 1
NS NSS ----NOT SOLD SEPARATE, TOOL, Face Seal Setting $0.00 $0.00 1
36 884563A00 --SHIFT SHAFT ASSEMBLY ACT $93.99 $90.41 1
36 884565A00 --SHIFT SHAFT ASSEMBLY ACT $94.99 $91.14 1
37 29641 ----E RING ACT $1.80 $1.76 1
38 43052A4 --BUSHING ASSEMBLY ACT $45.99 $45.09 1
39 8M0204681 ----O-RING, (1.424 x .103) 457101 SS $3.79 $3.69 1
40 8M0204708 ----SEAL, Oil 8164641 SS $16.99 $16.58 1
41 82684425 --SCREW, (M6 x 25) ACT $2.39 $2.33 2
42 891637 BUSHING ACT $9.89 $9.66 1
- 43035A05 SEAL KIT, Gear Housing ACT $113.99 $106.97 1
- 8M0113801 REPAIR KIT, Water Pump 43024A09 NLA $220.49 $207.26 1
- 8M0100526 REPAIR KIT, Water Pump Impeller 43026Q06 SS $66.99 $64.29 1
- 803496T2 BEARING/SEAL KIT ACT $249.49 $234.96 1
