| Ref # | Current Part Nbr |
Description | Superceded From |
Status | Notes | List Price |
Online Price |
Quan Used |
Order Quan |
|---|---|---|---|---|---|---|---|---|---|

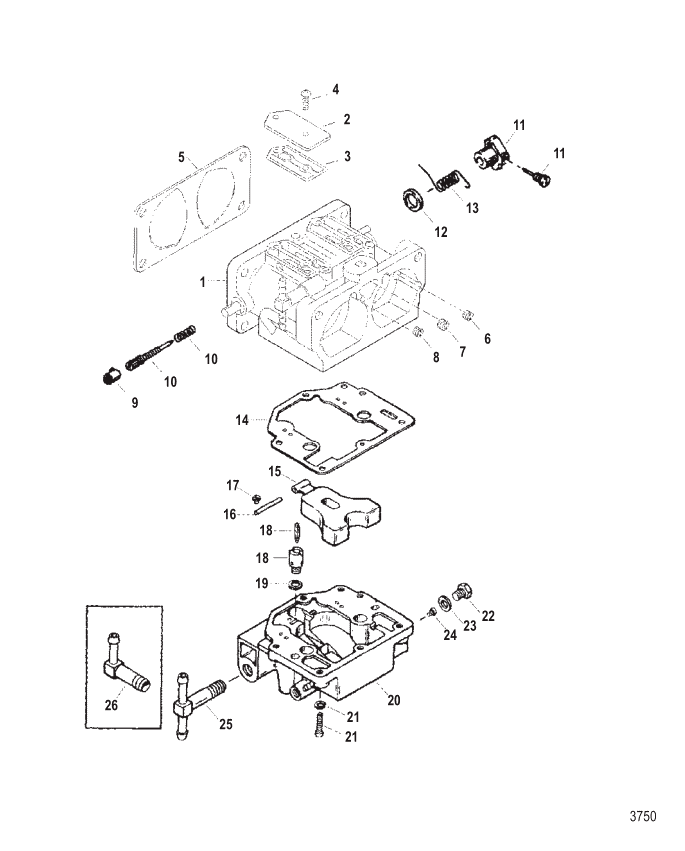

| 1 | 828272T94 | CARB ASSY-TOP | 828272A94 | SS/NLA |
|
$0.00 | $0.00 | 1 | |
| 1 | 828272T95 | CARB ASSY-CENTER | 828272A95 | SS/NLA |
|
$0.00 | $0.00 | 1 | |
| 1 | 828272T96 | CARB ASSY-BOTTOM | 828272A96 | SS/NLA |
|
$0.00 | $0.00 | 1 | |
| 2 | 809743 | ----COVER Idle Circuit | NLA |
|
$0.00 | $0.00 | 6 | ||
| 3 | 809758 | ----GASKET Idle Circuit Cover | NLA |
|
$0.00 | $0.00 | 6 | ||
| 4 | 8087391 | ----SCREW Idle Circuit Cover | NLA |
|
$0.00 | $0.00 | 12 | ||
| 5 | 828292 | ----GASKET Carburetor Mount | ACT |
|
$2.69 | $2.62 | 3 | ||
| 6 | 815633046 | ----JET-.046 Idle Air Vent | ACT |
|
$3.30 | $3.22 | 1 | ||
| 6 | 810742 | ----JET-.044 Idle Air Vent | NLA |
|
$0.00 | $0.00 | 2 | ||
| 7 | 6201 | ----JET-.080 Bowl Vent | ACT | $15.99 | $15.61 | 3 | |||
| 8 | 815633050 | ----JET-.050 Idle Air Vent (Starboard) | NLA |
|
$0.00 | $0.00 | 3 | ||
| 9 | 810779 | ----CAP-LIMITER Limiter | NLA |
|
$0.00 | $0.00 | 3 | ||
| 10 | NSS | --------NOT SOLD SEPARATE Idle Mixture Needle And Spring |
|
$0.00 | $0.00 | 6 | |||
| 11 | 8113523 | ----LEVER KIT | NLA |
|
$0.00 | $0.00 | 3 | ||
| 12 | 6031 | --------SPACER | NLA |
|
$0.00 | $0.00 | 3 | ||
| 13 | NSS | --------NOT SOLD SEPARATE Throttle Return Spring |
|
$0.00 | $0.00 | 3 | |||
| 14 | NSS | --------NOT SOLD SEPARATE Fuel Bowl Gasket |
|
$0.00 | $0.00 | 3 | |||
| 15 | 810738 | ----FLOAT ASSY | ACT | $23.99 | $23.49 | 3 | |||
| 16 | F10064 | ----SHAFT Float | ACT |
|
$4.59 | $4.49 | 3 | ||
| 17 | NSS | --------NOT SOLD SEPARATE Float Pin Screw |
|
$0.00 | $0.00 | 3 | |||
| 18 | 8116901 | ----VALVE SEAT KIT | ACT |
|
$32.89 | $32.24 | 3 | ||
| 19 | NSS | ----------------NOT SOLD SEPARATE Valve Seat Gasket |
|
$0.00 | $0.00 | 3 | |||
| 20 | 8236231 | ----BOWL-FUEL (Top) | NLA |
|
$0.00 | $0.00 | 1 | ||
| 20 | 8236241 | ----BOWL-FUEL (Center And Bottom) | NLA |
|
$0.00 | $0.00 | 2 | ||
| 21 | 808612 | ----SCREW/WASHER Fuel Bowl | ACT |
|
$2.69 | $2.62 | 18 | ||
| 22 | 811694 | ----PLUG KIT Drain | ACT |
|
$21.99 | $21.53 | 6 | ||
| 23 | NSS | ----------------NOT SOLD SEPARATE Drain Plug Gasket |
|
$0.00 | $0.00 | 6 | |||
| 24 | 3796 | ----JET-.076 Main Fuel | ACT |
|
$4.09 | $4.00 | 12 | ||
| 24 | 3794 | ----JET-.074 Main Fuel | ACT |
|
$4.09 | $4.00 | OPT | ||
| 24 | 6207 | ----JET-.072 Main Fuel | ACT |
|
$14.09 | $13.75 | OPT | ||
| 24 | 6030 | ----JET-.070 Main Fuel | ACT |
|
$4.09 | $4.00 | OPT | ||
| 24 | 6029 | ----JET-.068 Main Fuel | ACT |
|
$4.09 | $4.00 | OPT | ||
| 25 | 855526 | ----FITTING-T Tee (Top And Center) | NLA |
|
$0.00 | $0.00 | 2 | ||
| 26 | 855527 | ----FITTING-ELBOW Elbow (Bottom) | ACT | $26.49 | $25.94 | 1 | |||
| - | 8107493 | GASKET KIT-CARB | ACT |
|
$30.99 | $30.36 | 1 | ||
| - | 8116913 | REPAIR KIT-CARB | ACT | $140.49 | $131.92 | 1 | |||
| - | 804852A1 | GASKET/SEAL SET Powerhead | ACT |
|
$405.49 | $387.60 | 1 | ||
| - | 858257T25 | PH 175 SP JET | 858257T11 | SS/NLA |
|
$0.00 | $0.00 | 1 | |
| - | 858257T25 | PH SJ 175XR2 | NLA |
|
$0.00 | $0.00 | 1 |
