| Ref # | Current Part Nbr |
Description | Superceded From |
Status | Notes | List Price |
Online Price |
Quan Used |
Order Quan |
|---|---|---|---|---|---|---|---|---|---|

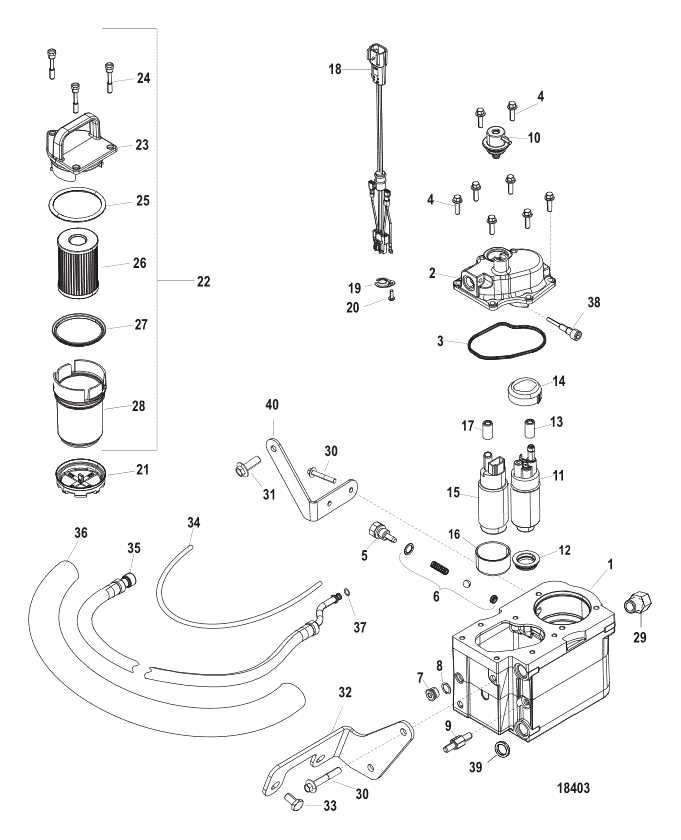

| - | 8M0047215 | MODULE KIT Fuel Pump Complete | 864650A05 | REP |
|
$1,879.36 | $1,879.49 | 1 | |
| 1 | 892664T01 | ----HOUSING Fuel Module | 892664 | SS/NLA |
|
$0.00 | $0.00 | 1 | |
| 2 | 8M0178981 | ----COVER Fuel Module Housing | 892677 | SS |
|
$344.17 | $324.11 | 1 | |
| 3 | 892683 | ----SEAL | ACT | $18.10 | $17.65 | 1 | |||
| 4 | 892684 | ----SCREW | ACT | $34.17 | $33.55 | 8 | |||
| 5 | 892670A01 | ----CHECK VALVE KIT | ACT |
|
$102.83 | $96.84 | 1 | ||
| 6 | NSS | ----------------NOT SOLD SEPARATE CHECK VALVE |
|
$0.00 | $0.00 | 1 | |||
| 7 | NSS | --------NOT SOLD SEPARATE PLUG |
|
$0.00 | $0.00 | 1 | |||
| 8 | NSS | --------NOT SOLD SEPARATE SEAL |
|
$0.00 | $0.00 | 1 | |||
| 9 | 865326 | ----STUD (M8 x 30) | NLA |
|
$0.00 | $0.00 | 1 | ||
| 10 | 892681 | ----REGULATOR | ACT | $128.33 | $120.86 | 1 | |||
| 11 | 866170A01 | ----PUMP ASSEMBLY Fuel - Low Pressure | ACT | $387.49 | $361.89 | 1 | |||
| 12 | NSS | --------NOT SOLD SEPARATE SEAL |
|
$0.00 | $0.00 | 1 | |||
| 13 | NSS | --------NOT SOLD SEPARATE SEAL |
|
$0.00 | $0.00 | 1 | |||
| 14 | NSS | --------NOT SOLD SEPARATE ISOLATOR, Lift Pump |
|
$0.00 | $0.00 | 1 | |||
| 15 | 866169T01 | ----PUMP ASSEMBLY Fuel - High Pressure | 866169A01 | SS |
|
$428.99 | $410.20 | 1 | |
| 16 | NSS | --------NOT SOLD SEPARATE ISOLATOR |
|
$0.00 | $0.00 | 1 | |||
| 17 | NSS | --------NOT SOLD SEPARATE SEAL |
|
$0.00 | $0.00 | 1 | |||
| 18 | 8M0056175 | ----HARNESS ASSEMBLY | 895013A02 | SS |
|
$168.08 | $158.29 | 1 | |
| 19 | NSS | --------NOT SOLD SEPARATE RETAINER |
|
$0.00 | $0.00 | 1 | |||
| 20 | NSS | --------NOT SOLD SEPARATE SCREW |
|
$0.00 | $0.00 | 1 | |||
| 21 | 8M0204703 | ----FILTER Fuel | 892665 | SS |
|
$47.49 | $46.63 | 1 | |
| 22 | 892687A02 | ----CARTRIDGE ASSEMBLY Fuel Filter | ACT |
|
$177.08 | $166.76 | 1 | ||
| 23 | NSS | ----------------NOT SOLD SEPARATE CAP, Fuel Filter Cartridge |
|
$0.00 | $0.00 | 1 | |||
| 24 | NSS | ------------------------NOT SOLD SEPARATE SCREW |
|
$0.00 | $0.00 | 3 | |||
| 25 | NSS | ------------------------NOT SOLD SEPARATE SEAL |
|
$0.00 | $0.00 | 1 | |||
| 26 | 8M0093688 | --------FILTER | 866171A01 | SS |
|
$75.49 | $72.79 | 1 | |
| 27 | NSS | ------------------------NOT SOLD SEPARATE SEAL |
|
$0.00 | $0.00 | 1 | |||
| 28 | NSS | ----------------NOT SOLD SEPARATE CUP, Fuel Filter Cartridge |
|
$0.00 | $0.00 | 1 | |||
| 29 | 88517 | ----FITTING Reducing | ACT | $19.30 | $18.82 | 1 | |||
| 30 | 4010720 | SCREW (M8 x 20) | ACT | $4.20 | $4.10 | 4 | |||
| 31 | 4010820 | SCREW (M10 x 20) Hex Flan | ACT | $4.80 | $4.69 | 1 | |||
| 32 | 864458 | BRACKET | ACT | $60.92 | $58.61 | 1 | |||
| 33 | 40001195 | SCREW (M10 x 30) | ACT | $5.20 | $5.08 | 2 | |||
| 34 | 8M0063567 | HOSE (58.00 Inches Bulk) | 80617382 | SS |
|
$37.67 | $36.99 | 1 | |
| 35 | 865257A03 | HOSE Fuel | 865257002 | SS |
|
$227.50 | $214.24 | 1 | |
| 36 | NSS | --------NOT SOLD SEPARATE Insulator Sleeve |
|
$0.00 | $0.00 | 1 | |||
| 37 | 8M0214975 | ----SEAL Quad Ring | 863151 | SS |
|
$2.70 | $2.64 | 1 | |
| 38 | 866114 | ----SCREW (.250-28) Special | ACT | $6.90 | $6.73 | 1 | |||
| 39 | 865363 | O-RING | ACT | $0.60 | $0.59 | 4 | |||
| 40 | 864459 | BRACKET | ACT | $37.33 | $36.66 | 1 |
