| Ref # | Current Part Nbr |
Description | Superceded From |
Status | Notes | List Price |
Online Price |
Quan Used |
Order Quan |
|---|---|---|---|---|---|---|---|---|---|

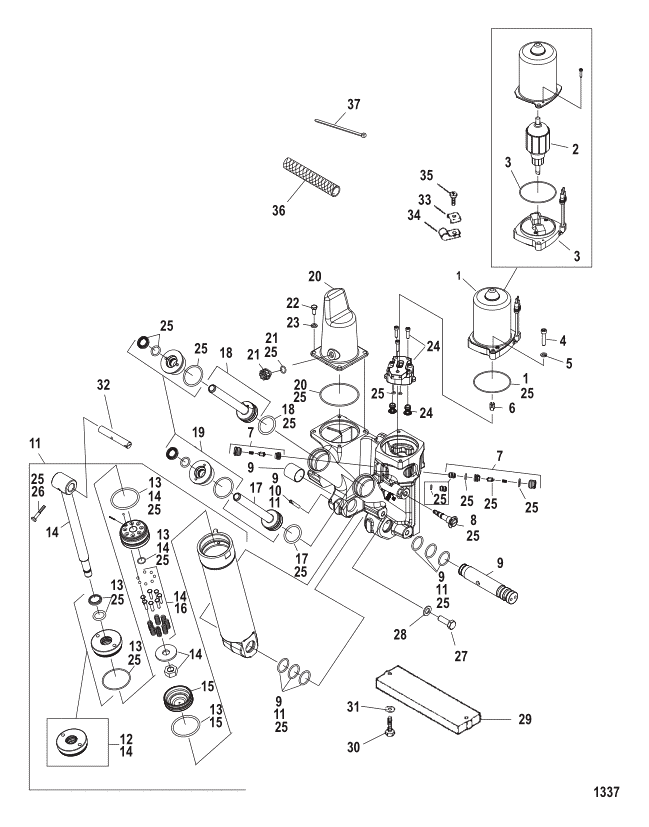

| - | 8M0143219 | POWER TRIM KIT | 855998A3 | ACT |
|
$0.00 | $0.00 | 1 | |
| 1 | 8M0031551 | ----ORD 8M0031551 | 878265A4 | REP |
|
$497.49 | $497.49 | 1 | |
| 2 | NSS | ----------------NOT SOLD SEPARATE ARMATURE |
|
$0.00 | $0.00 | 1 | |||
| 3 | NSS | ----------------NOT SOLD SEPARATE END FRAME |
|
$0.00 | $0.00 | 1 | |||
| 4 | 82494830 | ----SCREW | ACT | $3.19 | $3.11 | 2 | |||
| 5 | 400256 | ----LOCKWASHER | ACT | $1.80 | $1.76 | 2 | |||
| 6 | 8782451 | ----COUPLING | 878245 | SS |
|
$39.49 | $38.60 | 1 | |
| 7 | 878410A1 | ----PO CHECK KIT | ACT | $86.49 | $83.12 | 1 | |||
| 8 | 893929A01 | ----VALVE KIT-RELIEF | 813442A2 | SS |
|
$73.49 | $70.46 | 1 | |
| 9 | 8M0142997 | ----SHAFT KIT | 878241A1 | SS |
|
$349.99 | $329.52 | 1 | |
| 10 | 878267 | --------PIN-GROOVE | ACT | $27.99 | $27.42 | 1 | |||
| 11 | 8M0168220 | ----CYLINDER KIT-TILT | 878235A1 | SS |
|
$1,262.99 | $1,157.63 | 1 | |
| 12 | 8M0168219 | --------END CAP KIT | 878239A1 | SS |
|
$848.49 | $798.27 | 1 | |
| 13 | 8M0142999 | --------O RING KT-TILTCYL | 878409A1 | SS |
|
$44.49 | $43.71 | 1 | |
| 14 | 8M0168219 | --------SHOCK ROD KIT | 878412A1 | SS |
|
$848.49 | $798.27 | 1 | |
| 15 | 8M0143000 | --------PISTON MEMORY KIT | 878242A1 | SS |
|
$79.49 | $76.39 | 1 | |
| 16 | 8M0168219 | --------REPAIR KIT-VALVE | 878406A1 | SS |
|
$848.49 | $798.27 | 1 | |
| 17 | 878414T01 | ----TRIM ROD KIT-STBD | 878414A1 | SS |
|
$371.49 | $354.97 | 1 | |
| 18 | 878413A1 | ----TRIM ROD KIT-PORT | ACT | $337.49 | $317.83 | 1 | |||
| 19 | 8M0021648 | ----END CAP KIT | 878243A1 | SS |
|
$188.49 | $177.28 | 2 | |
| 20 | 878264A1 | ----COVER KT-RESERVOI | ACT | $60.99 | $58.59 | 1 | |||
| 21 | 811613 | ----PLUG ASSY | ACT | $29.99 | $29.38 | 1 | |||
| 22 | 4000327 | ----SCREW | ACT | $2.99 | $2.92 | 4 | |||
| 23 | 4002315 | ----WASHER | 43450 | SS |
|
$0.80 | $0.79 | 4 | |
| 24 | 892251A01 | ----PUMP KIT-HYD TILT | 878411A1 | SS |
|
$264.49 | $248.85 | 1 | |
| 25 | 878408A1 | O RING KIT | ACT |
|
$117.49 | $110.65 | 1 | ||
| 26 | 821539 | ----PIN-TRILOBE | ACT | $6.29 | $6.15 | 1 | |||
| 27 | 858771 | SCREW | ACT | $2.39 | $2.33 | 6 | |||
| 28 | 4002319 | WASHER | ACT | $3.19 | $3.11 | 6 | |||
| 29 | 818298Q1 | ANODE KIT(ALUM) | ACT |
|
$25.49 | $24.96 | 1 | ||
| 30 | 8M0204707 | ----SCREW | 4000330 | SS |
|
$3.99 | $3.91 | 2 | |
| 31 | 8M0204649 | ----WASHER | 29245 | SS |
|
$1.20 | $1.18 | 2 | |
| 32 | 99625002 | SHAFT | 996251 | SS |
|
$19.99 | $19.64 | 1 | |
| 33 | 8M0084613 | C WASHER | 69205 | SS |
|
$1.10 | $1.08 | 1 | |
| 34 | 26550 | CLIP | ACT | $4.79 | $4.69 | 2 | |||
| 35 | 878609 | SCREW | ACT | $2.59 | $2.53 | 1 | |||
| 36 | 828547353 | CONDUIT-.35 X 3FT (12 IN.) | ACT | $28.49 | $27.91 | 1 | |||
| 37 | 816311T | TIE STRAP | ACT | $0.60 | $0.59 | 1 |
