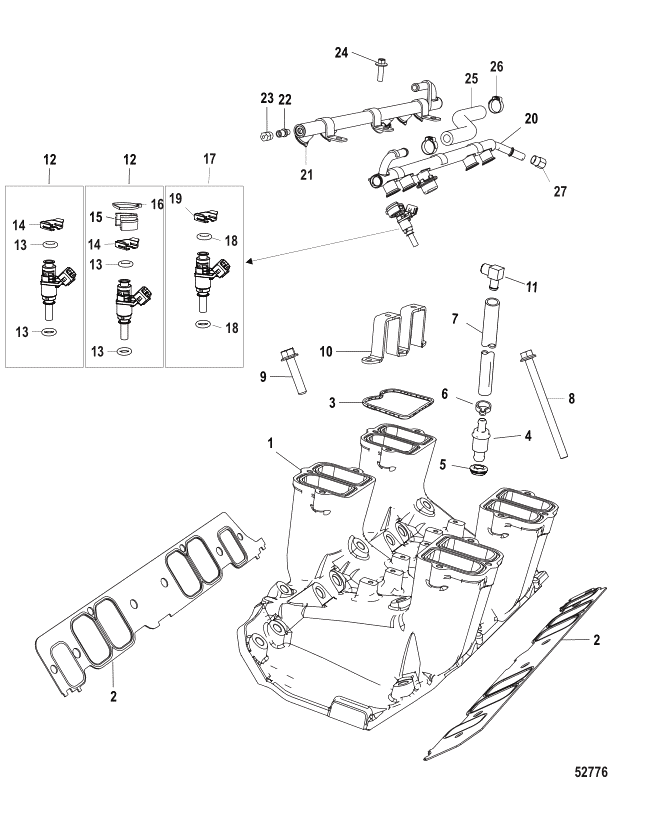

| Ref # | Current Part Nbr | Description | Superceded From | Status | Notes | List Price | Online Price | Quan Used | Order Quan |
|---|---|---|---|---|---|---|---|---|---|
| 1 | 8M0045256 | MANIFOLD ASSEMBLY Intake | ACT |  | $1,242.21 | $1,138.77 | 1 | ||
| 2 | 805403A1 | ----GASKET SET | ACT | $108.33 | $102.02 | 1 | |||
| 3 | 8M0044310 | ----SEAL Intake Manifold | ACT | $7.10 | $6.93 | 4 | |||
| 4 | 8M0099429 | VALVE ASSEMBLY Crankcase Vent | 848578 | SS | | $29.92 | $29.38 | 1 | |
| 5 | 811553 | GROMMET | ACT | $35.08 | $34.45 | 1 | |||
| 6 | 848764 | CLAMP (21 mm) | ACT | $3.80 | $3.71 | 1 | |||
| 7 | 8M0042521 | HOSE PCV Valve to Plenum | ACT | $12.00 | $11.71 | 1 | |||
| 8 | 8M2017579 | SCREW (.375-16 x 5.25) Intake Manifold to Head | ACT | $12.60 | $12.29 | 4 | |||
| 9 | 8M0046395 | SCREW (.375-16 x 1.75) | ACT | $6.70 | $6.54 | 12 | |||
| 10 | 8M0043145 | BRACKET Wire Harness | ACT | $17.75 | $17.43 | 2 | |||
| 11 | 687271 | FITTING (.250-18) 90 Degree - Brass | ACT | $30.67 | $30.12 | 1 | |||
| 12 | 8M0081415 | INJECTOR KIT Fuel Design-I or II | 8M0082332 | SS | | $348.49 | $328.11 | 8 | |
| 13 | 879150A09 | ----SEAL KIT | ACT | | $199.92 | $188.27 | 2 | ||
| 14 | 8M0045267 | ----RETAINER KIT Design-I or II | ACT | | $39.83 | $39.12 | 2 | ||
| 15 | 8M0050100 | ----CLIP Fuel Injector, Secondary, Design-II | ACT | | $20.08 | $19.72 | 8 | ||
| 16 | 8M0064024 | ----CABLE TIE Design-II | 8M0050294 | REP | | $1.20 | $1.18 | 8 | |
| 17 | 8M0081412 | INJECTOR KIT Fuel Design-III | 8M0082333 | SS | | $280.99 | $264.39 | 8 | |
| 18 | 879150A09 | ----SEAL KIT | ACT | | $199.92 | $188.27 | 1 | ||
| 19 | 8M2001570 | ----CLIP Design-III | ACT | | $17.00 | $16.58 | 8 | ||
| 20 | 8M0081416 | FUEL RAIL Port | 8M0044743 | SS | | $388.00 | $365.38 | 1 | |
| 20 | 8M0134249 | FUEL RAIL Port,Includes Injector Clips | 8M0081453 | SS | | $388.75 | $366.09 | 1 | |
| 21 | 8M0081417 | FUEL RAIL Starboard | 8M0044754 | SS | | $388.00 | $365.38 | 1 | |
| 21 | 8M0134250 | FUEL RAIL Starboard,Includes Injector Clips | 8M0081452 | SS | | $388.75 | $366.09 | 1 | |
| 22 | 8M0044726 | VALVE ASSEMBLY | ACT | $48.25 | $47.38 | 1 | |||
| 23 | 8M0046566 | CAP Shrader Valve - Brass | 805515 | REP | | $4.50 | $4.39 | 1 | |
| 24 | 8M0103805 | SCREW (M6 x 16 MM) Stainl Fuel Rail to Intake Manifold | 88552516 | SS | | $2.40 | $2.35 | 6 | |
| 25 | 8M0098781 | HOSE Balance | 8M0044724 | SS | | $336.50 | $316.89 | 1 | |
| 26 | 8M0046568 | CLAMP (20.5 mm) | ACT | $2.50 | $2.44 | 2 | |||
| 27 | 8M0046566 | CAP Service Point | ACT | $4.50 | $4.39 | 1 |
