Ref # Current
Part Nbr		 Description Superceded
From		 Status Notes List
Price		 Online
Price		 Quan
Used		 Order
Quan

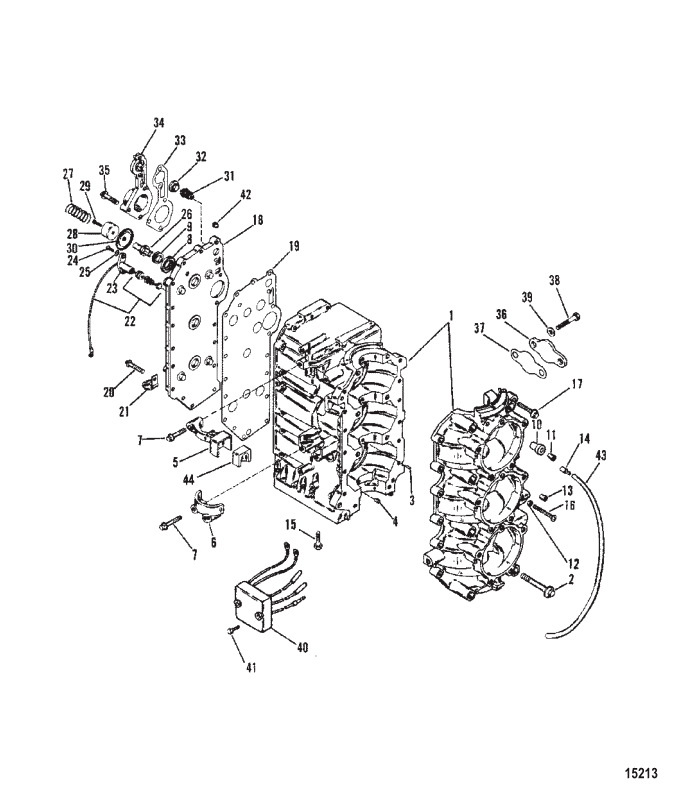

1 8947T49 CYLINDER BLOCK 75 8947A36 SS/NLA $0.00 $0.00 1
1 8947T50 CYLINDER BLOCK 75 Work 8947A37 SS/NLA $0.00 $0.00 1
1 8947T51 CYLINDER BLOCK 90 8947A38 SS/NLA $0.00 $0.00 1
2 4009680 ----SCREW (M10 x 80) ACT $1.80 $1.76 8
2 81742780 ----SCREW (M8 x 80) ACT $4.50 $4.39 8
3 8M0036405 ----PIN Bearing Race 67296 SS $4.40 $4.30 3
4 43044 ----PIN Dowel 20033 SS $2.50 $2.44 1
5 428842 ----COVER Top 42884 SS $94.58 $90.98 1
6 76867 ----COVER Bottom ACT $27.67 $27.17 1
7 81742750 ----SCREW (M8 x 50) NLA $0.00 $0.00 4
8 65848 ----CARRIER Use Where Applicable ACT $3.60 $3.52 1
9 64872 ----GROMMET Use Where Applicable ACT $3.60 $3.52 1
10 813801A1 ----CARRIER ASSEMBLY ACT $19.90 $19.41 1
11 42657A3 --------CHECK VALVE 42657A1 SS $7.30 $7.12 2
12 400212 ----NUT (M6) Stainless Steel ACT $2.90 $2.83 1
13 42942 ----CAP ACT $1.90 $1.86 1
14 426233 ----CHECK VALVE Press In 42623 SS $103.92 $97.86 1
15 821676A1 ----SCREW 40101120 SS $11.00 $10.73 8
16 814776 ----SCREW Adjusting (M6 x 55) ACT $3.20 $3.13 1
17 82127335 SCREW (M8 x 35 MM) ACT $5.20 $5.08 12
18 9003A2 COVER 9003A1 SS $577.57 $543.38 1
19 430057 GASKET 430056 SS $19.68 $19.32 1
20 82127335 SCREW (M8 x 35 MM) ACT $5.20 $5.08 14
21 814634 CLAMP ACT $5.10 $4.98 2
22 78799 SENDER Temperature (19.50 Inch) ACT $111.42 $104.93 1
23 44290T RETAINER 44290 SS $4.70 $4.59 1
24 48409 SCREW (#10-16 x .625) Sta ACT $2.50 $2.44 2
25 8M0204666 WASHER (.203 x .500 x .03 56681 SS $1.80 $1.76 2
26 86596 POPPET VALVE Spring Length Is 2.00 Inch ACT $11.30 $11.02 1
27 42996 SPRING (Stainless Steel) Spring Length Is 2.00 Inch ACT $1.80 $1.76 1
26 86596T POPPET VALVE Spring Length Is 3.00 Inch ACT $15.70 $15.31 1
27 42996 SPRING Spring Length Is 3.00 Inch 18336 SS $1.80 $1.76 1
28 94182 WASHER ACT $3.60 $3.52 1
29 69570 SCREW (#10-16 x .750) ACT $1.80 $1.76 1
30 648771 DIAPHRAGM 64877 SS $11.79 $11.51 1
31 75692 THERMOSTAT 143 Degrees ACT $25.99 $25.57 1
31 14586 THERMOSTAT 120 Degrees ACT $40.99 $40.16 1
32 8M0204714 GASKET 62386 SS $2.89 $2.82 1
33 430068 GASKET 430065 SS $9.80 $9.56 1
34 8M0047619 COVER 428852 SS $38.82 $38.14 1
35 82127335 SCREW (M8 x 35 MM) ACT $5.20 $5.08 5
36 12621 COVER Non Oil Injection ACT $10.00 $9.76 1
37 126201 GASKET Non Oil Injection ACT $4.60 $4.49 1
38 40007106 SCREW (M5 x 13) Non Oil Injection ACT $1.80 $1.76 2
39 4002314 WASHER ACT $3.70 $3.61 2
40 14857A16 MODULE ASSEMBLY Oil Warning 14857A7 SS $195.67 $184.26 1
41 4010630 SCREW (M6 x 30) Stainless Steel ACT $6.90 $6.73 2
42 328022 PLUG Pipe (.125-27) 32802 SS $7.59 $7.42 1
43 892024122 TUBING (20.00 Feet Bulk) 99130122 SS $48.17 $47.30 1
44 99162001 BOOT Non Oil Injection 99162 SS $6.90 $6.73 1
- 43004A99 GASKET SET 43004A90 SS $166.33 $156.64 1
- 13589T93 POWERHEAD ASSEMBLY Complete 75 NLA $0.00 $0.00 1
- 13600T93 POWERHEAD ASSEMBLY Complete 75 Commercial NLA $0.00 $0.00 1
- 15081T96 POWERHEAD ASSEMBLY Complete 90 NLA $0.00 $0.00 1
