| Ref # | Current Part Nbr |
Description | Superceded From |
Status | Notes | List Price |
Online Price |
Quan Used |
Order Quan |
|---|---|---|---|---|---|---|---|---|---|

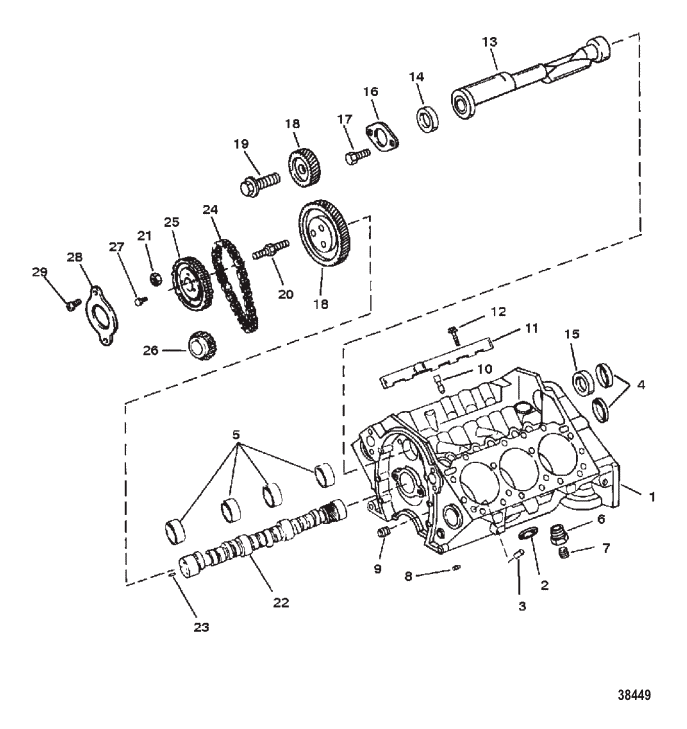

| 1 | 824146 | CYLINDER BLOCK | NLA |
|
$0.00 | $0.00 | 1 | ||
| 2 | 34270 | ----EXPANSION PLUG (1.625) | ACT | $9.80 | $9.56 | 8 | |||
| 3 | 35465 | ----PIN Dowel (.312) | ACT | $7.00 | $6.83 | 4 | |||
| 4 | 72640 | ----PLUG Expansion | ACT | $14.20 | $13.85 | 2 | |||
| 5 | 802999 | ----BEARING SET | ACT | $83.00 | $79.83 | 1 | |||
| 6 | 48556 | ----BUSHING Reducer (.250 To .125) | ACT | $8.01 | $7.81 | 2 | |||
| 7 | 328022 | ----PLUG Pipe (.125-27) | 32802 | SS |
|
$7.59 | $7.42 | 2 | |
| 8 | 42796 | ----VALVE Oil Filter Bypass | NLA |
|
$0.00 | $0.00 | 1 | ||
| 9 | 816565 | ----PLUG Cup (.468) | ACT | $10.70 | $10.44 | 1 | |||
| 10 | 811844T | LIFTER | 811844 | SS |
|
$144.75 | $136.32 | 12 | |
| 11 | 824331 | RETAINER | NLA |
|
$0.00 | $0.00 | 2 | ||
| 12 | 824332 | SCREW | NLA |
|
$0.00 | $0.00 | 4 | ||
| 13 | 824148 | SHAFT Balanced | NLA |
|
$0.00 | $0.00 | 1 | ||
| 14 | NSS | --------NOT SOLD SEPARATE NEEDLE BEARING (FRONT) |
|
$0.00 | $0.00 | 1 | |||
| 15 | 8M0158199 | BEARING Needle (REAR) | 824150 | SS |
|
$168.75 | $158.92 | 1 | |
| 16 | 824153 | RETAINER Balance Shaft | NLA |
|
$0.00 | $0.00 | 1 | ||
| 17 | 845943 | SCREW (.250-20 x .500) | 17343 | SS |
|
$6.80 | $6.64 | 2 | |
| 18 | 8241511 | GEAR KIT | 824151 | SS |
|
$314.67 | $296.33 | 1 | |
| 19 | 824152 | SCREW | NLA |
|
$0.00 | $0.00 | 1 | ||
| 20 | 824340 | STUD | NLA |
|
$0.00 | $0.00 | 1 | ||
| 21 | 824341 | NUT | NLA |
|
$0.00 | $0.00 | 1 | ||
| 22 | 803186 | CAMSHAFT | 824327 | SS |
|
$652.29 | $613.68 | 1 | |
| 23 | 843378 | PIN Dowel (1/4 In. Diameter) | 35312 | SS |
|
$16.00 | $15.61 | 1 | |
| 24 | 8M0187687 | CHAIN Timing | 17161 | SS |
|
$144.17 | $135.77 | 1 | |
| 25 | 883494 | SPROCKET CAMSHAFT | 824328 | SS |
|
$204.33 | $192.43 | 1 | |
| 26 | 8M0184208 | SPROCKET CRANKSHAFT | 17160 | SS |
|
$74.42 | $71.58 | 1 | |
| 27 | 824329 | SCREW (.312-18 x .750) | NLA |
|
$0.00 | $0.00 | 2 | ||
| 28 | 824333 | RETAINER Camshaft | ACT | $38.00 | $37.32 | 1 | |||
| 29 | 824334 | SCREW (.250-20 x .500) | ACT | $3.10 | $3.03 | 2 |
