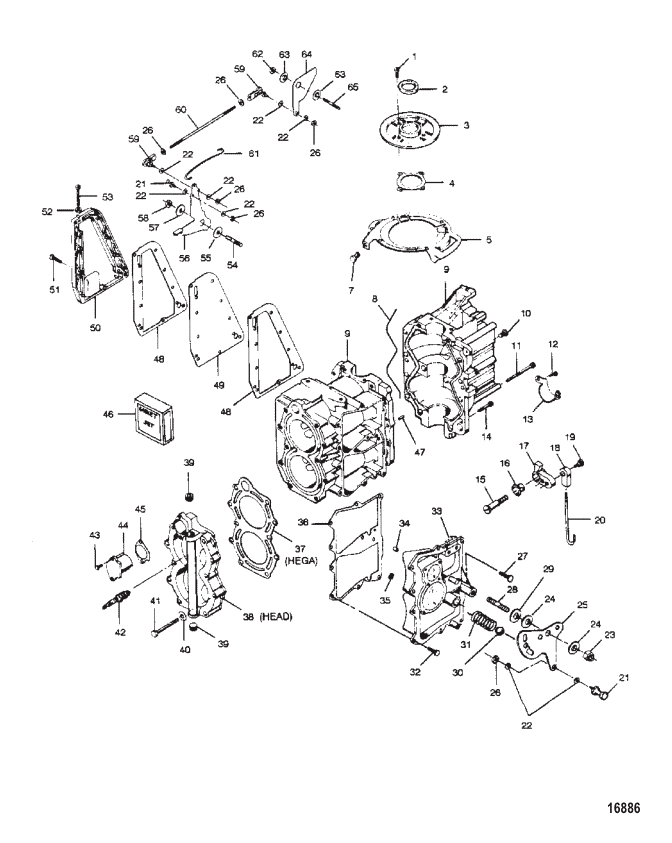

Ref # Current
Part Nbr		 Description Superceded
From		 Status Notes List
Price		 Online
Price		 Quan
Used		 Order
Quan
1 F1107 --------------------SCREW (.250-20 x .750) NLA $0.00 $0.00 4
2 F458146 SEAL Crankshaft Upper Main NLA $0.00 $0.00 1
3 FA458144 CAGE ASSEMBLY Crankshaft Bearing NLA $0.00 $0.00 1
4 F458277 GASKET Crankshaft Bearing Cage NLA $0.00 $0.00 1
5 817833A1 RING ASSEMBLY Magneto Stator NLA $0.00 $0.00 1
7 F1727 RIVET NLA $0.00 $0.00 1
8 F184122-1 SEAL Crankcase Parting Line ACT $20.70 $20.19 1
9 819466A2 CYLINDER W/CRANKCASE COVER NLA $0.00 $0.00 1
9 817920A2 SHORT BLOCK NLA $0.00 $0.00 1
10 28636 SCREW (.250-20 x .750) (.250-20 x .750) F1864 SS $1.80 $1.76 8
11 F2005 SCREW (.312 - 18 x 2.750) (.3125-18 x 2.75) NLA $0.00 $0.00 2
12 73286 SCREW (.250 - 20 X .500) (.250-20 x .500) F1689 SS $1.80 $1.76 2
13 F460317-2 CLAMP Solenoid For Electric Start F460317-1 SS/NLA $0.00 $0.00 1
14 47819 SCREW (.312 - 18 x 1.250) (.3125-18 x 2.75) F2013 SS/NLA $0.00 $0.00 4
15 F85026 SWIVEL Shift Interlock Lever NLA $0.00 $0.00 1
16 26841 BEARING F307818 SS $7.59 $7.42 1
17 F458977-3 LEVER Shift Interlock NLA $0.00 $0.00 1
18 816514 BEARING Shift Interlock Rod F84035-2 SS/NLA $0.00 $0.00 1
19 819625 SWIVEL Shift Interlock Bearing F84026 SS/NLA $0.00 $0.00 1
20 817805A1 ROD Shift Interlock NLA $0.00 $0.00 1
21 F98273 STUD NLA $11.21 $10.93 2
22 F8058 LOCKWASHER Internal (#10) NLA $0.00 $0.00 8
23 82670912 NUT (.375-16) (.375-16) F7004 SS $6.80 $6.64 1
24 F269052 BEARING NLA $0.00 $0.00 2
25 817808A2 LEVER Gear Shift NLA $0.00 $0.00 1
26 68219 NUT (#10-32) (#10-32) F1513 SS $3.00 $2.93 6
27 F1922 SCREW (.250-20 x .625) (.250-20 x .625) NLA $0.00 $0.00 1
28 8263872 STUD Gear Shift Lever F440209 SS/NLA $0.00 $0.00 1
29 34931 WASHER F2014 SS $2.60 $2.54 1
30 F458727 BALL Shift Lever Detent NLA $0.00 $0.00 1
31 F183300 SPRING Shift Detent NLA $0.00 $0.00 9
32 F1922 SCREW (.250-20 x .625) (.250-20 x .625) NLA $0.00 $0.00 9
33 FA659222 COVER Transfer Port NLA $0.00 $0.00 1
34 817741A1 CHECK VALVE F213740-1 SS/NLA $0.00 $0.00 2
35 F429811 SCREEN Cylinder Drain ACT $1.10 $1.08 2
36 819413 GASKET Transfer Port Cover F458223 SS/NLA $0.00 $0.00 1
37 F513529 GASKET Cylinder Head NLA $0.00 $0.00 1
38 817843A2 CYLINDER HEAD ASSEMBLY 817843A1 SS/NLA $0.00 $0.00 1
39 F458109 PLUG Cylinder Head NLA $0.00 $0.00 2
40 8M0204690 WASHER (Electric Start) F1739 SS $1.80 $1.76 7
41 F1882 SCREW Cylinder Head F458936 SS/NLA $0.00 $0.00 10
42 896323 SPARK PLUG (L82C) 8179962 SS $6.39 $6.25 2
42 NSS NOT SOLD SEPARATE Spark Plug (Champion QL-77-J4) For Canada (Obtain Locally) $0.00 $0.00 2
43 28635 SCREW (.250-20 x .625) (.250-20 x .625) F1854 SS $1.80 $1.76 2
44 F458066 COVER Thermostat NLA $0.00 $0.00 1
45 F458067 GASKET Thermostat Cover NLA $0.00 $0.00 1
46 FG1014-2 GASKET SET FG1014-1 SS/NLA $0.00 $0.00 1
-- F84792 ----GASKET Fuel Pump Vavlve ACT $3.40 $3.32 3
-- F433168 ----GASKET Carburetor Adapter ACT $2.70 $2.64 1
-- F433406 ----GASKET Delector Plate ACT $5.10 $4.98 1
-- 823606 ----GASKET Fuel Pump Bowl F438617 SS $14.90 $14.53 1
-- 820490 ----GASKET Fuel Pump F438760 SS $4.60 $4.49 1
-- F458067 ----GASKET Thermostat Cover NLA $0.00 $0.00 1
-- 819478 ----GASKET Exhaust Port Plate F458154 SS/NLA $0.00 $0.00 2
-- 819413 ----GASKET Transer Port Cover F458223 SS/NLA $0.00 $0.00 1
-- F458277 ----GASKET Crankshaft Bearing Cage NLA $0.00 $0.00 1
-- F458279 ----GASKET Cylinder Exhaust NLA $0.00 $0.00 1
-- F458453 ----GASKET Leg Exhaust NLA $0.00 $0.00 1
-- F513529 ----GASKET Cylinder Head NLA $0.00 $0.00 1
-- 828925 ----GASKET Carburetor F85906 SS $2.39 $2.33 1
-- F683279 ----GASKET Cylinder Exhaust NLA $0.00 $0.00 1
47 F8559 PIN NLA $0.00 $0.00 2
48 819478 GASKET Exhaust Port Plate F458154 SS/NLA $0.00 $0.00 2
49 F458151 PLATE Exhaust Port NLA $0.00 $0.00 1
50 F458152-1 COVER Exhaust Port NLA $0.00 $0.00 1
51 819110100 SCREW (.250-20 x 1.00) F1532 SS $0.50 $0.49 10
52 64015 NUT (.250-20) Stainless Steel F1341 SS $2.81 $2.75 1
53 F1072 --------------------SCREW (.250-20 x 1.75) Fill Head NLA $0.00 $0.00 1
54 F286440 STUD Magneto Control Lever NLA $0.00 $0.00 1
55 F183813 BEARING Control Lever NLA $0.00 $0.00 1
56 F2A458081 LEVER ASSEMBLY Magneto Control NLA $0.00 $0.00 1
57 F286282 WASHER NLA $0.00 $0.00 1
58 F1803 NUT (.312-24) NLA $0.00 $0.00 1
59 828514A1 BALL JOINT ASSEMBLY Ball Assembly F269141-1 SS $22.08 $21.69 2
60 F458502 ROD Throttle Cam NLA $0.00 $0.00 1
61 F458509 LINK Magneto Starter NLA $0.00 $0.00 1
62 8267088 NUT (.250-20) F7008 SS $1.70 $1.66 1
63 F269319 BEARING Throttle Cam NLA $0.00 $0.00 2
64 F458192-1 CAM Throttle F458192 SS/NLA $0.00 $0.00 1
65 F433209-1 STUD (.250-20 x 1.250) Throttle Cam NLA $0.00 $0.00 1
