Ref # Current
Part Nbr		 Description Superceded
From		 Status Notes List
Price		 Online
Price		 Quan
Used		 Order
Quan

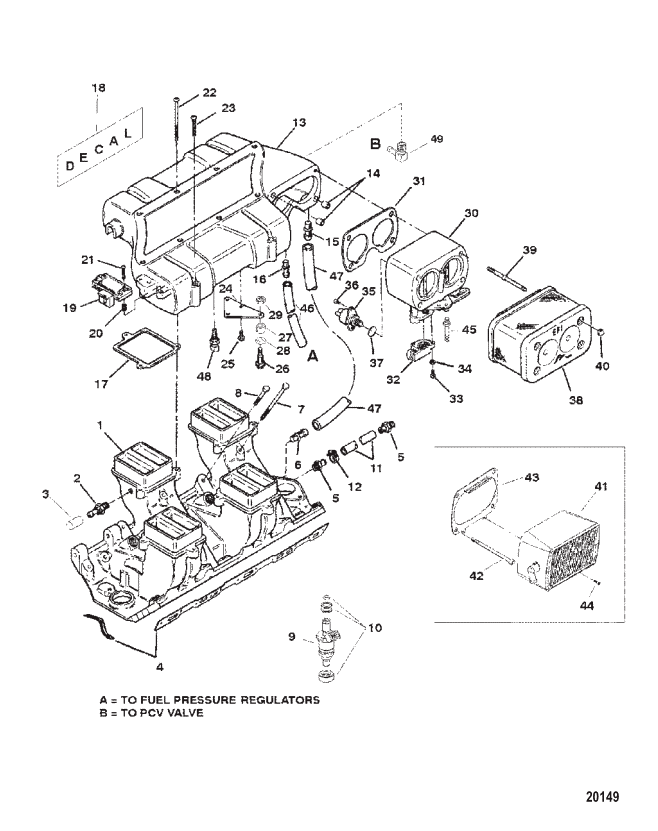

1 861300A2 MANIFOLD ASSEMBLY Intake NLA $0.00 $0.00 1
2 805691 ----FITTING (.250) Barb ACT $25.00 $24.55 1
3 854310 ----PLUG 806899 SS $4.60 $4.49 1
4 805403A1 ----GASKET SET ACT $112.66 $106.10 1
5 806242 ----CONNECTOR ACT $73.33 $70.54 2
6 805519 ----FITTING Barb (.250 Inch) NLA $0.00 $0.00 1
7 43749 SCREW (.375-16 x 5.750) ACT $8.80 $8.59 4
8 862020 SCREW (3/8-16 X 2 IN.) ACT $4.60 $4.49 12
9 861260T INJECTOR Fuel ACT $225.99 $211.06 8
10 851889 ----O-RING ACT $14.50 $14.14 16
11 8059871 HOSE Water Pump To Intake Manifold ACT $22.08 $21.69 1
12 815504212 CLAMP Worm Gear ACT $5.90 $5.76 2
13 805240A18 PLENUM ASSEMBLY Intake (CRINKLE PAINT) NLA $0.00 $0.00 1
13 805240A1 PLENUM ASSEMBLY Intake NLA $0.00 $0.00 1
14 52698 ----SLEEVE NLA $0.00 $0.00 2
15 805519 ----FITTING Barb (.250 Inch) NLA $0.00 $0.00 1
16 805598 ----FITTING (.1875) Barb ACT $12.10 $11.80 1
17 805522A1 ----GASKET SET ACT $55.49 $53.62 1
18 8613641 DECAL Molded NLA $0.00 $0.00 1
18 861369 DECAL NLA $0.00 $0.00 1
19 864856A1 SENSOR ASSEMBLY 805217A1 SS $282.67 $266.19 1
20 881733 ----SEAL 805412 SS $21.00 $20.62 1
21 807120 SCREW (#10-24 x 1.00) NLA $0.00 $0.00 2
22 805391 SCREW (5/16-18 X 4-1/2 IN.) (GOLD COLORED) 8053912 REP $12.30 $12.00 8
22 805391 SCREW (.312-18 x 4.500) ACT $12.30 $12.00 8
23 805390 SCREW (5/16-18 X 2-1/4 IN.) (GOLD COLORED) 8053902 REP $8.80 $8.59 4
23 805390 SCREW (.312-18 x 2.250) ACT $8.80 $8.59 4
24 805413T BRACKET Throttle Cable NLA $0.00 $0.00 1
25 73286 SCREW (.250-20 x .500) Stainless Steel ACT $1.80 $1.76 3
26 807132 SHOULDER BOLT NLA $0.00 $0.00 1
27 11284 SPACER (.62 Diameter) ACT $4.20 $4.10 1
28 26825 WASHER (.328 x .750 x .06 ACT $1.50 $1.47 1
29 8M0207776 NUT (.250-20) Stainless Steel 814101 SS $7.10 $6.93 1
30 861475A2 THROTTLE BODY ASSEMBLY (CRINKLE PAINT) NLA $0.00 $0.00 1
30 860204A5 THROTTLE BODY ASSEMBLY NLA $0.00 $0.00 1
31 805396 ----GASKET Throttle Body ACT $20.00 $19.64 1
32 805226A1 ----SENSOR ASSEMBLY TPS ACT $115.17 $108.46 1
33 805400 --------SCREW (#8-32 x .500) Stainless Steel ACT $1.70 $1.66 2
34 28001 --------WASHER (.188 x .438 x .049) NLA $0.00 $0.00 2
35 805224A1 ----MOTOR ASSEMBLY IAC NLA $0.00 $0.00 1
36 805400 --------SCREW (#8-32 x .500) Stainless Steel ACT $1.70 $1.66 2
37 808547 --------O-RING ACT $1.70 $1.66 1
38 807656A2 FLAME ARRESTOR (CRINKLE PAINT) 805401A4 REP $262.08 $246.81 1
39 805399 STUD NLA $0.00 $0.00 4
40 805402 NUT Acorn NLA $0.00 $0.00 2
41 807656A2 FLAME ARRESTOR ACT $262.08 $246.81 1
42 808040 SCREW (5/16-18 x 4.0) (5/16-18 X 4 IN.) ACT $9.30 $9.07 4
43 807654T BRACKET Flame Arrestor ACT $28.08 $27.58 1
44 808039 SCREW (#6-32) (#6-32) ACT $6.80 $6.64 2
45 807133 STUD (.250 x 1.750) ACT $4.10 $4.00 1
46 8M0063567 HOSE (52.00 Inches Bulk) 80617379 SS $37.67 $36.99 2
47 7381567 TUBING (42.00 Inches Bulk) ACT $30.99 $30.36 1
48 805223T SENSOR ACT $148.99 $140.32 1
49 687271 FITTING (.250-18) 90 Degree - Brass (TO PCV VALVE) ACT $31.92 $31.34 1
- 811572A94 GASKET SET Overhaul (454) NLA $0.00 $0.00 1
- 805396A92 GASKET SET Overhaul (8.2L) NLA $0.00 $0.00 1
