Ref # Current
Part Nbr		 Description Superceded
From		 Status Notes List
Price		 Online
Price		 Quan
Used		 Order
Quan

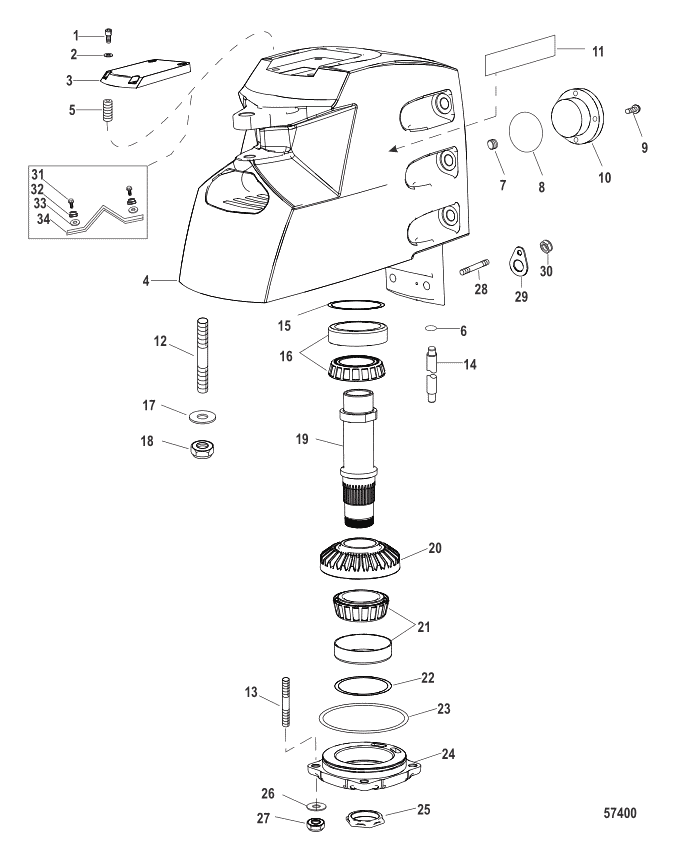

- 8M0077284 DRIVESHAFT HOUSING ASSEMBLY M8 LH 21:23 Complete ACT $30,309.09 $27,138.20 1
- 8M0077285 DRIVESHAFT HOUSING ASSEMBLY M8 RH 21:23 Complete ACT $30,309.09 $27,138.20 1
- 8M0077286 DRIVESHAFT HOUSING ASSEMBLY M8 LH 23:27 Complete ACT $30,023.29 $26,882.30 1
- 8M0077287 DRIVESHAFT HOUSING ASSEMBLY M8 RH 23:27 Complete ACT $30,023.29 $26,882.30 1
- 8M0077288 DRIVESHAFT HOUSING ASSEMBLY M8 LH 21:27 Complete ACT $29,587.45 $26,492.05 1
- 8M0077289 DRIVESHAFT HOUSING ASSEMBLY M8 RH 21:27 Complete ACT $29,587.45 $26,492.05 1
- 8M0077290 DRIVESHAFT HOUSING ASSEMBLY M8 LH 19:27 Complete ACT $29,516.00 $26,428.08 1
- 8M0077291 DRIVESHAFT HOUSING ASSEMBLY M8 RH 19:27 Complete ACT $29,516.00 $26,428.08 1
1 F2143 ----SCREW (.250-20 x 1.00) Stainless Steel ACT $3.20 $3.13 4
2 35950 ----WASHER (.273 x .437 x .03 ACT $1.80 $1.76 4
3 8M0087946 ----COVER Upper Housing, Anodized 8M8023746 SS $339.39 $324.31 1
4 8M0063650 ----UPPER HOUSING ASSEMBLY Upper 8M8025198 SS $10,255.67 $9,182.75 1
5 8M0007167 --------SET SCREW (.500-13 x 1.00 Tapped .250-20) ACT $17.85 $17.60 4
6 32509 --------O-RING (.489 x .070) ACT $2.39 $2.33 1
7 56800 --------PLUG Pipe (.0625-27) ACT $26.42 $25.94 1
8 8M0204681 --------O-RING (1.424 x .103) 457101 SS $3.79 $3.69 1
9 846347 --------SCREW (#10-32 x .625) Stainless Steel ACT $0.75 $0.75 4
10 8M0010256 --------COVER Seat Valve ACT $54.74 $53.14 1
11 8M0048296 --------DECAL M8 Drive ACT $88.69 $86.08 2
11 8M0121129 --------DECAL M-Icon Large Race ACT $22.83 $22.51 2
12 846385 --------STUD (.562-12/.562-18 x 3.810) ACT $41.97 $41.37 8
13 8M0041668 ----STUD (.437-14/.437-20 x 1.875) ACT $15.50 $15.12 4
14 8496781 ----TUBE Oil Transfer (2.13) ACT $40.37 $39.80 1
15 34822A1 ----SHIM SET ACT $15.78 $15.55 1
16 847375T1 ----BEARING SET Cup And Cone ACT $183.66 $175.50 1
17 844850 ----WASHER (.660 x 1.310 x .09) Stainless Steel ACT $1.21 $1.19 8
18 47302 ----NUT (.562-18) Stainless Steel ACT $14.26 $14.06 8
19 8M0051212 ----SHAFT Drive 847512 SS $1,241.75 $1,138.00 1
20 8M0051360 ----GEAR SET 841171A01 SS $6,994.96 $6,410.50 AR
20 843201A01 ----GEAR SET (23/27) ACT $4,279.86 $3,922.26 AR
20 849175A1 ----GEAR SET (21/27) ACT $4,215.55 $3,863.33 AR
20 848787A1 ----GEAR SET (19/27) ACT $4,058.36 $3,719.27 AR
20 849840A1 ----GEAR SET (19/29) ACT $2,093.49 $1,918.57 AR
21 847375T1 ----BEARING SET Cup And Cone ACT $183.66 $175.50 1
22 34822A1 ----SHIM SET ACT $15.78 $15.55 1
23 847376 ----O-RING (5.234 x .120) ACT $6.09 $6.01 1
24 8473112 ----COVER Bottom ACT $327.66 $313.10 1
25 848256 ----NUT (1.875-16) Special ACT $86.12 $83.60 1
26 842922 ----WASHER (.450 x .750 x .060) Stainless Steel ACT $1.00 $0.98 4
27 8M0204653 ----NUT (.437-20) Stainless S 34933 SS $5.29 $5.17 4
28 846345 STUD (#10-32 x .750) ACT $21.76 $21.36 1
29 847035 PLATE Bonding ACT $25.10 $24.74 1
30 8267096 NUT (#10-32) Stainless Steel ACT $3.70 $3.61 1
31 F2030 SCREW (.250-20 x 1.250) Stainless Steel For Lifting Only ACT $3.40 $3.32 2
32 35462 WASHER (.2656 x .625 x .0 For Lifting Only ACT $1.80 $1.76 2
33 8M0010880 BUSHING For Lifting Only ACT $5.04 $4.96 2
34 8M0192232 BRACKET Lifting Eye For Lifting Only 847398 SS $46.62 $45.95 1
