| Ref # | Current Part Nbr |
Description | Superceded From |
Status | Notes | List Price |
Online Price |
Quan Used |
Order Quan |
|---|---|---|---|---|---|---|---|---|---|

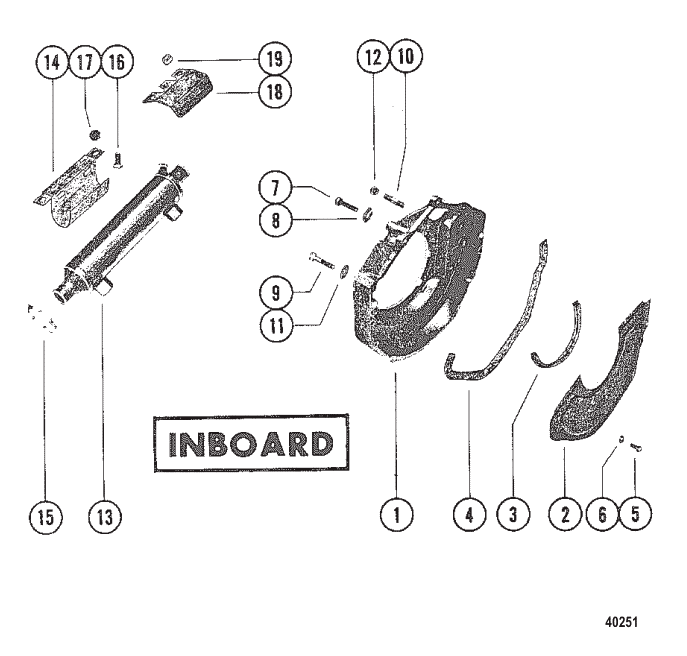

| 1 | 814309A1 | HOUSING FLYWHEEL | 86019 | SS |
|
$533.71 | $502.12 | 1 | |
| 2 | 818718A4 | COVER ASSEMBLY FLYWHEEL HOUSING | 86014A1 | SS |
|
$126.58 | $119.21 | 1 | |
| 3 | 87690 | ----SEAL FLYWHEEL HOUSING COVER | NLA |
|
$0.00 | $0.00 | 1 | ||
| 4 | 86015 | ----GASKET FLYWHEEL HOUSING COVERE | ACT | $11.50 | $11.22 | 1 | |||
| 5 | 98253 | SCREW (1/2 In.) COVER TO FLYWHEEL HOUSING | 20031 | SS |
|
$1.10 | $1.08 | 8 | |
| 6 | 26992 | LOCKWASHER (.250) Stainle COVER SCREW | ACT | $1.20 | $1.18 | 8 | |||
| 7 | 34353 | SCREW (.375-16 x 1.00) HOUSING TO ENGINE | ACT | $2.60 | $2.54 | 2 | |||
| 8 | 35048 | LOCKWASHER (3/8) HOUSING SCREW | 37459 | SS |
|
$1.20 | $1.18 | 7 | |
| 9 | 63826 | SCREW (.375-16 x 2.50) FLYWHEEL HOUSING TO ENGINE | ACT | $3.70 | $3.61 | 2 | |||
| 9 | 48424 | SCREW (.375-16 x 1.620) FLYWHEEL HOUSING TO ENGINE | ACT | $3.00 | $2.93 | 2 | |||
| 10 | 861316 | STUD (.375-16 x 2.750) Special FLYWHEEL HOUSING TO ENGINE | 64066 | SS |
|
$15.10 | $14.73 | 1 | |
| 11 | 20572 | WASHER (.390 x .750 x .093) FLYWHEEL HOUSING TO ENGINE SCREW | ACT | $1.60 | $1.57 | 2 | |||
| 12 | 32219 | NUT (.375-16) FLYWHEEL HOUSING STUD | ACT | $2.81 | $2.75 | 1 | |||
| 13 | 63832A1 | COOLER OIL (9") | 638321 | SS |
|
$713.07 | $670.86 | 1 | |
| 13 | 63832T | COOLER OIL (12") | 638322 | SS |
|
$682.00 | $641.63 | 1 | |
| 14 | 49748A1 | BRACKET OIL COOLER | NLA |
|
$0.00 | $0.00 | 1 | ||
| 15 | 815504228 | CLAMP OIL COOLER TO BRACKET | 32781 | SS |
|
$20.70 | $20.19 | 2 | |
| 16 | 98261 | SCREW (.375-16 x .75) OIL COOLER BRACKET | 27165 | SS |
|
$1.20 | $1.18 | 1 | |
| 17 | 52412 | NUT OIL COOLER BRACKET SCREW | NLA |
|
$0.00 | $0.00 | 1 | ||
| 18 | 49735A1 | BRACKET OIL COOLEER | 49735 | SS/NLA |
|
$0.00 | $0.00 | 1 | |
| 19 | 905201 | SPACER OIL COOLER BRACKET | 36365 | SS |
|
$7.40 | $7.22 | 2 |
