Ref # Current
Part Nbr		 Description Superceded
From		 Status Notes List
Price		 Online
Price		 Quan
Used		 Order
Quan

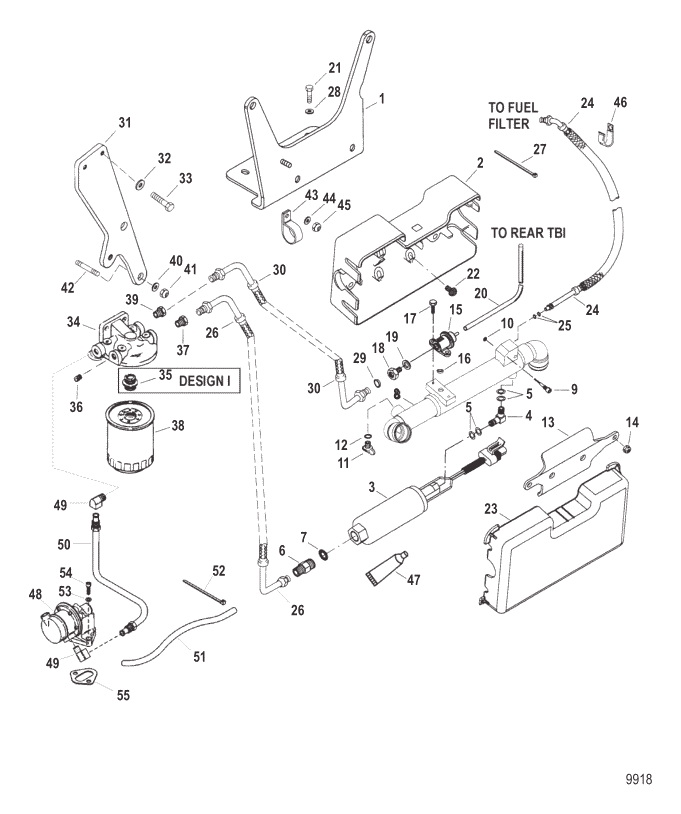

1 8M0050909 BRACKET Fuel Cooler 849904T SS/NLA $0.00 $0.00 1
2 807685T3 INSULATOR Base ACT $155.32 $143.75 1
3 849930T02 PUMP ASSEMBLY Fuel Includes Ref Numbers 5 And 7 849930T1 SS $906.91 $825.67 1
4 807783A1 FITTING ASSEMBLY 90 Degree ACT $42.99 $42.14 1
5 8M0204683 ----O-RING (.301 x .070) 805063 SS $2.79 $2.72 4
6 808001A1 FITTING ASSEMBLY ACT $34.99 $34.24 1
7 805062 ----O-RING (.530 x .082) ACT $4.19 $4.10 1
8 8M0125854 COOLER KIT Fuel 849929A1 SS $563.28 $512.83 1
9 866114 ----SCREW (.250-28) Special 861303 SS $6.89 $6.73 1
9 866114 ----SCREW (.250-28) Special ACT $6.89 $6.73 1
10 861414 ----RING Retaining ACT $1.10 $1.08 1
11 8M0119211 ----PLUG KIT (.500-13) Royal Drain 806608A1 SS $10.19 $9.95 1
12 32509 --------O-RING (.489 x .070) ACT $2.39 $2.33 1
13 807979T BRACKET ACT $114.49 $103.00 1
14 29598 NUT (.250-28) Stainless S ACT $2.89 $2.82 2
15 861126A1 REGULATOR KIT (43 PSI) ACT $202.49 $182.18 1
16 805406 ----FILTER ACT $6.89 $6.73 1
17 852368 SCREW (#10-24 x .750) ACT $1.70 $1.66 2
18 8080021 FITTING Stainless Steel ACT $81.52 $77.91 1
19 36533 WASHER (.328 x .562 x .0312) Copper ACT $1.50 $1.47 1
20 8M0063567 HOSE (52.00 Inches Bulk) (.156 x .500) Cut As Required 80617379 SS $37.99 $37.20 1
21 64014 SCREW (.250-28 x .500) ACT $1.82 $1.79 4
22 269011 BUMPER Rubber ACT $3.99 $3.91 8
23 807930T01 INSULATOR Fuel Cooler Cover 807930 SS $31.79 $31.18 1
24 8M0050923 LINE ASSEMBLY Fuel 849891T SS $165.71 $153.36 1
25 8M0204683 O-RING (.301 x .070) 805063 SS $2.79 $2.72 2
26 849871 LINE ASSEMBLY Fuel Seperator To Pump 849871T SS $85.50 $81.70 1
27 816311T TIE STRAP (8.00 Inches) ACT $0.60 $0.59 AR
28 846673 WASHER (.265 x .500 x .060) Stainless Steel ACT $1.10 $1.08 4
29 848438 GASKET Flare ACT $4.24 $4.19 1
30 849870 LINE ASSEMBLY Fuel Regulator To Pump 849870T SS/NLA $0.00 $0.00 1
31 8492261 BRACKET Seperator ACT $143.49 $129.14 1
32 8M0042642 WASHER (.323 x .563 x .06 70132 SS $1.80 $1.76 2
33 849377 SCREW (.312-24 x .750) Stainless Steel ACT $15.13 $14.92 2
34 89876A3 BASE ASSEMBLY Fuel Filter/Water Seperator ACT $67.49 $63.41 1
35 816133 ----FITTING ACT $13.19 $12.88 1
36 8M0204652 ----PLUG Pipe - Allen Head (. 32561 SS $6.79 $6.64 1
37 808003 CONNECTOR ACT $29.49 $28.97 1
38 802893Q01 FILTER Fuel/Water Separating - Quicksilver Brand 802893Q SS $19.79 $19.31 1
39 33821 CONNECTOR ACT $9.69 $9.46 1
40 45176 WASHER (.453 x .812 x .10 ACT $1.50 $1.47 2
41 859135 NUT (.437-20) Brass/Nicke ACT $6.09 $5.95 2
42 8M0133358 STUD (.437-14/.437-20 x 2.060) 579203 SS $17.29 $16.94 1
43 62494 CLIP Hose Support ACT $7.49 $7.32 1
44 8M0214963 WASHER (.406 x .750 x .10 856774 SS $2.59 $2.53 1
45 82670912 NUT (.375-16) Stainless S ACT $6.79 $6.64 1
46 848183 J CLIP Port - Fuel Line To Mount ACT $18.69 $18.24 2
47 8M0082339 COMPOUND Heat Transfer - Six Grams 805701 REP $8.99 $8.77 AR
48 889275T PUMP ASSEMBLY Fuel 842429T SS $235.87 $218.30 1
49 93385 FITTING (90 Degree) ACT $13.19 $12.88 2
50 842423 LINE ASSEMBLY Fuel Pump To Seperator NLA $0.00 $0.00 1
51 8M8023638 TUBING (54.00 Inches Bulk) Cut 48.00 Inches 84862872 SS $135.57 $125.47 1
52 56762 TIE STRAP (4.00 Inches) ACT $0.50 $0.49 2
53 34931 WASHER (.406 x .734 x .063) Stainless Steel ACT $2.59 $2.53 2
54 34354 SCREW (.375-16 x 1.50) ACT $2.39 $2.33 2
55 34213 GASKET ACT $7.09 $6.93 1
- 842129A1 GASKET/SEAL SET Engine Overhaul NLA $0.00 $0.00 1
