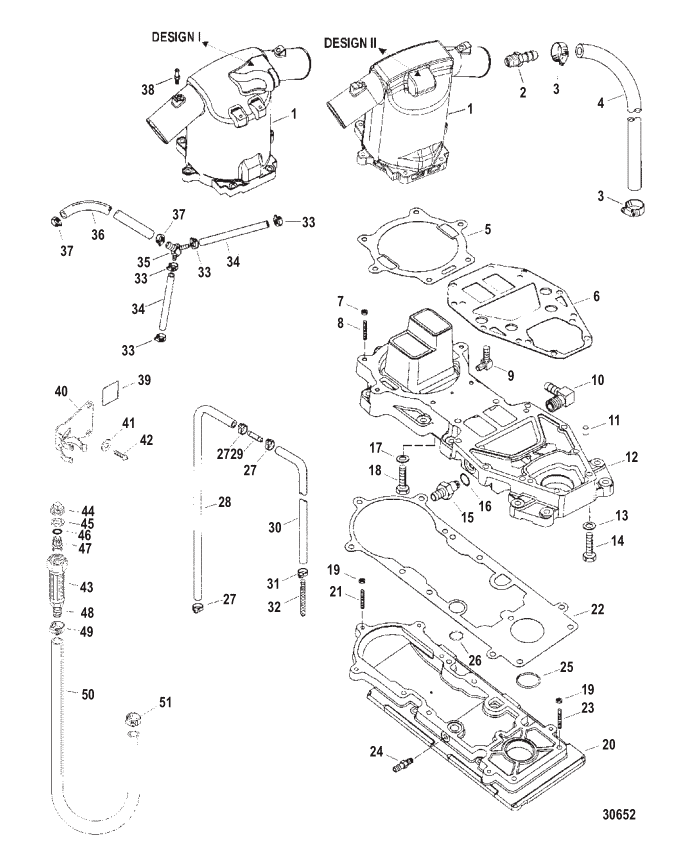

| Ref # | Current Part Nbr | Description | Superceded From | Status | Notes | List Price | Online Price | Quan Used | Order Quan |
|---|---|---|---|---|---|---|---|---|---|
| 1 | 879890A3 | CHAMBER Expansion | 859394T | SS |  | $1,199.93 | $1,100.00 | 1 | |
| 1 | 879890A3 | CHAMBER KIT Expansion - With Hose 21.00 Inches | ACT | | $1,199.93 | $1,100.00 | 1 | ||
| 2 | 42683 | CONNECTOR (.750-14) | ACT | $29.42 | $28.89 | 1 | |||
| 3 | 815504310 | CLAMP Worm Gear | ACT | $17.30 | $16.87 | 2 | |||
| 4 | 8M0062634 | HOSE (44.00 Inches Bulk) Cut As Required | 4285069 | SS | | $39.42 | $38.71 | 1 | |
| 5 | 880738 | GASKET Expansion Chamber | 879864 | SS | | $26.00 | $25.53 | 1 | |
| 6 | 8231423 | GASKET Block To Exhaust Expansion Chamber | ACT | | $64.58 | $62.12 | 1 | ||
| 7 | 826365 | NUT (M8) | ACT | $5.70 | $5.56 | 6 | |||
| 8 | 884824 | STUD (M8 x 50) | ACT | $7.70 | $7.51 | 6 | |||
| 9 | 629101 | FITTING Elbow - 90 Degree (.125-27) | ACT | $12.90 | $12.58 | 1 | |||
| 10 | 860346 | FITTING Elbow (90 Degree) (.750) | ACT | $27.08 | $26.60 | 1 | |||
| 11 | 43044 | PIN Dowel - Without Hole (.375 x .625) Locating | ACT | $2.40 | $2.35 | 2 | |||
| 12 | 859395T | ADAPTER Engine | ACT | $1,615.71 | $1,481.16 | 1 | |||
| 13 | 37828 | WASHER (.390 x .625 x .062) Stainless Steel | ACT | $0.80 | $0.79 | 8 | |||
| 14 | 35787 | SCREW (.375-16 x 2.250) | ACT | $2.70 | $2.64 | 8 | |||
| 15 | 877311 | FITTING Strainer | ACT | $52.83 | $50.82 | 1 | |||
| 16 | 45711 | O-RING (.612 x .103) Strainer Fitting | ACT | | $1.70 | $1.66 | 1 | ||
| 17 | 37828 | WASHER (.390 x .625 x .062) Stainless Steel | ACT | $0.80 | $0.79 | 2 | |||
| 18 | 72094 | SCREW (.375-16 x 3.750) | ACT | $5.30 | $5.17 | 2 | |||
| 19 | 826292 | NUT (M10) Brass/Nickel Plated | ACT | $4.00 | $3.91 | 11 | |||
| 20 | 859396A1 | COVER ASSEMBLY Top Of Jet Drive Housing | ACT | | $999.93 | $940.74 | 1 | ||
| 21 | 853303 | ----STUD (M10 x 53) | ACT | $7.20 | $7.03 | 5 | |||
| 22 | 859398 | ----GASKET Engine Adaptor | ACT | | $45.92 | $45.09 | 1 | ||
| 23 | 859764 | ----STUD (M10 x 101) | ACT | $28.25 | $27.74 | 6 | |||
| 24 | 70146 | ----CONNECTOR Barbed (.250-18) | ACT | $8.00 | $7.81 | 1 | |||
| 25 | 20826 | O-RING (2.230 x .139) Top Cover | ACT | | $5.10 | $4.98 | 1 | ||
| 26 | 8M0204673 | O-RING (.921 x .139) Top Cover | 90196 | SS | | $4.80 | $4.69 | 1 | |
| 27 | 816311T | TIE STRAP (8.00 Inches) | ACT | $0.59 | $0.58 | 3 | |||
| 28 | 8M0038468 | HOSE (9.00 Feet Bulk) Siphon - Cut 42.00 Inches | 1678978 | SS | | $41.83 | $41.08 | 1 | |
| 29 | 858456 | SIPHON BREAK | ACT | $3.20 | $3.13 | 1 | |||
| 30 | 8M0038468 | HOSE (9.00 Feet Bulk) Siphon - Cut 18.00 Inches | 1678978 | SS | | $41.83 | $41.08 | 1 | |
| 31 | 415825 | CLAMP Nylon | ACT | $3.80 | $3.71 | 1 | |||
| 32 | 8348084 | FILTER Siphon Hose | 826703 | SS | | $20.42 | $20.05 | 1 | |
| 33 | 815504104 | CLAMP Worm Gear | ACT | $6.50 | $6.34 | 4 | |||
| 34 | 8M0108349 | TUBING (.312) (70.00 Inches Bulk) Cut 6.00 Inches | 830757130 | SS | | $62.25 | $59.88 | 2 | |
| 35 | 877539 | FITTING | ACT | $17.58 | $17.27 | 1 | |||
| 36 | 85525884 | HOSE (32.00 Inches) | ACT | $63.67 | $61.24 | 1 | |||
| 37 | 815504206 | CLAMP Worm Gear | ACT | $6.50 | $6.34 | 2 | |||
| 38 | 16604 | FITTING Straight (.125-27) | ACT | $11.10 | $10.83 | 2 | |||
| 39 | 850390 | DECAL Flushing Adapter | ACT | $1.40 | $1.37 | 1 | |||
| 40 | 820543A6 | CLIP Flushing Assembly Holder | 850160 | REP | | $115.50 | $108.77 | 1 | |
| 41 | 4002314 | WASHER | ACT | $3.60 | $3.52 | 3 | |||
| 42 | 88417 | SCREW (#12-24 x .620) | ACT | $1.70 | $1.66 | 3 | |||
| 43 | 820543A5 | ADAPTER ASSEMBLY Flushing | ACT | | $30.83 | $30.28 | 1 | ||
| 44 | 821908 | ----PLUG Top | ACT | $7.10 | $6.93 | 1 | |||
| 45 | 821915 | ----WASHER | ACT | $4.00 | $3.91 | 1 | |||
| 46 | 30641 | ----O-RING (.299 x .103) | ACT | $3.10 | $3.03 | 1 | |||
| 47 | 8219631 | ----CHECK VALVE | 821963 | SS | | $17.58 | $17.27 | 1 | |
| 48 | 33066 | ----CONNECTOR (.500-14) Straight - Brass | ACT | $18.33 | $18.01 | 1 | |||
| 49 | 815504206 | CLAMP Worm Gear | ACT | $6.50 | $6.34 | 1 | |||
| 50 | 855258112 | HOSE (60.00 Inches Bulk) Cut As Required | ACT | $43.25 | $42.47 | 1 | |||
| 51 | 815504206 | CLAMP Worm Gear | ACT | $6.50 | $6.34 | 1 | |||
| - | 883264A1 | SEAL/GASKET SET Jet Drive Housing | 877896A1 | SS | | $401.42 | $378.02 | 1 | |
| - | 804986A1 | GASKET/SEAL SET Powerhead | ACT | $402.64 | $384.87 | 1 | |||
| - | 858257R21 | POWERHEAD ASSEMBLY | 858257T18 | SS/NLA | | $7,894.69 | $7,452.59 | 1 |
