Ref # Current
Part Nbr		 Description Superceded
From		 Status Notes List
Price		 Online
Price		 Quan
Used		 Order
Quan

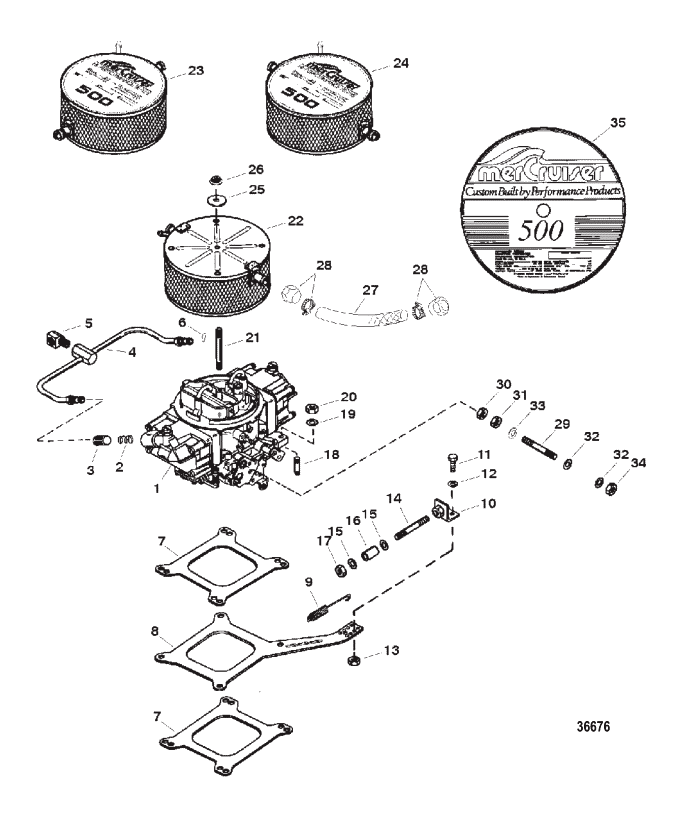

1 13549T21 CARB-BLUE-500CARB 13549A15 SS/NLA $0.00 $0.00 1
1 13549T21 CARB-BLUE-500CARB 13549A21 SS/NLA $0.00 $0.00 1
2 9032 ----SPRING Filter 48143 SS $7.89 $7.71 2
3 93568 ----FILTER-FUEL ACT $15.68 $15.47 2
4 8485911 ----LINE-FUEL (BLUE) Fuel Inlet NLA $0.00 $0.00 1
5 93385 ----FITTING Fuel Inlet Tube ACT $13.19 $12.88 1
6 848438 ----GASKET Flair (Copper) ACT $4.24 $4.19 2
NS 13220 ----REBUILD KIT Carburetor Overhaul ACT $265.85 $254.04 1
NS 42270A1 ----GASKET SET Carburetor NLA $0.00 $0.00 1
NS 848243 ----POWERVALVE NLA $0.00 $0.00 1
NS 816827 ----PUMP KIT Accelerator NLA $0.00 $0.00 2
NS 42268 ----CHOKE KIT-ELEC Electric NLA $0.00 $0.00 1
NS 848750 ----VALVE Umbrella NLA $0.00 $0.00 2
NS 848751 ----BAFFLE NLA $0.00 $0.00 2
NS 848752 ----O RING NLA $0.00 $0.00 2
NS 848755 ----DIAPHRAM Accelerator Pump NLA $0.00 $0.00 2
NS 848749 ----FLOAT-CARB (Black-Solid Plastic) NLA $0.00 $0.00 2
NS 848742A1 ----GASKET SET Float Adjust NLA $0.00 $0.00 2
NS 650875 ----JET-.082 Main NLA $0.00 $0.00 1
NS 650893 ----JET-.105 Main NLA $0.00 $0.00 1
NS 650889 ----JET-.104 Main NLA $0.00 $0.00 1
NS 650881 ----JET-.093 Main NLA $0.00 $0.00 2
7 41610 GASKET Spacer ACT $19.19 $18.73 2
8 940701 BRACKET Throttle ACT $66.99 $64.40 1
9 897454 SPRING Throttle Return 32817 SS $12.29 $12.00 1
10 15017 BRACKET Throttle ACT $65.49 $63.00 1
11 78291 SCREW Throttle Bracket ACT $0.50 $0.49 2
12 26996 LOCKWASHER Throttle Bracket Screw ACT $1.20 $1.18 2
13 79989 NUT Throttle Bracket Screw ACT $2.79 $2.72 2
14 728091 STUD Cable 72809 SS $9.49 $9.27 1
15 69056 WASHER Cable Stud 21631 SS $1.80 $1.76 2
16 31866 SPACER Cable Stud ACT $5.69 $5.56 1
17 826709109 NUT Cable Stud 35045 SS $3.59 $3.50 1
18 46857 STUD (.312 x 1.875) ACT $28.49 $27.91 4
19 848136 WASHER Carburetor Stud ACT $24.79 $24.31 4
20 82670911 NUT Carburetor Stud 35814 SS $4.99 $4.88 4
21 848176 STUD Flame Arrestor ACT $24.49 $24.06 1
22 8M0119614 ARRESTOR-FLAME Flame 848585 SS $390.99 $373.40 1
23 848912 FLAME ARRESTOR Flame NLA $0.00 $0.00 1
24 849706 FLAME ARRESTOR Flame NLA $0.00 $0.00 1
25 86400 WASHER Flame Arrestor Stud ACT $1.70 $1.66 1
26 35888 NUT Flame Arrestor Stud ACT $6.89 $6.73 1
27 821284A11 HOSE Vent NLA $0.00 $0.00 2
27 821284A21 HOSE ASSY Vent NLA $0.00 $0.00 2
28 84763012 ----CLAMP/COVER-RED Vent Hose NLA $0.00 $0.00 4
29 8M0113178 STUD 96112 SS $3.09 $3.01 1
30 8267089 NUT Throttle Cable Stud 20361 SS $1.50 $1.47 1
31 69057 ORD 12-69057 (.250-28)-Throttle Cable Stud 28426 REP $1.80 $1.76 1
32 8M0204649 WASHER 29245 SS $1.20 $1.18 2
33 818894 BUSHING Throttle Cable Stud ACT $19.55 $19.27 1
34 8267089 NUT Throttle Cable Stud 20361 SS $1.50 $1.47 1
35 848597 DECAL Flame Arrestor NLA $0.00 $0.00 1
- 818572A98 GASKET SET Engine Overhaul 818572A97 SS/NLA $0.00 $0.00 1
- 818572A98 GASKET SET Engine Overhaul NLA $0.00 $0.00 1
