| Ref # | Current Part Nbr |
Description | Superceded From |
Status | Notes | List Price |
Online Price |
Quan Used |
Order Quan |
|---|---|---|---|---|---|---|---|---|---|

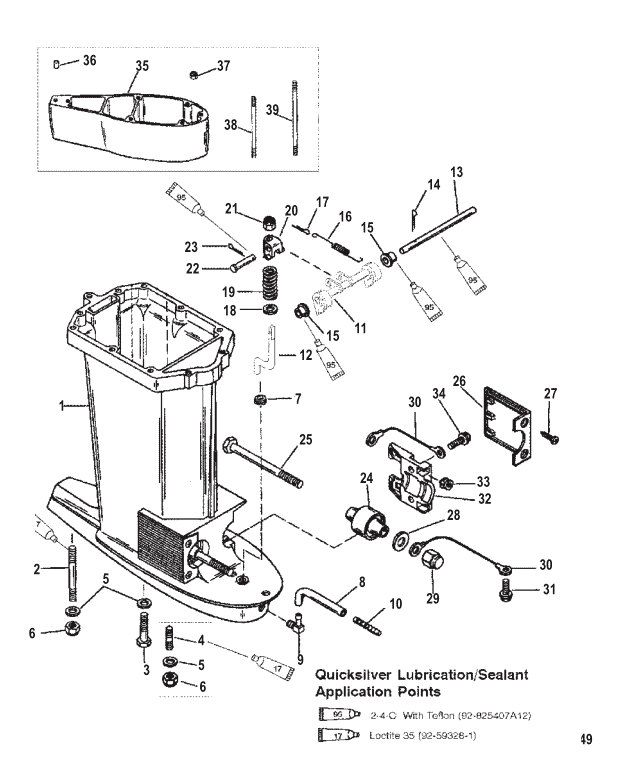

| 1 | 898289A49 | HOUSING ASSEMBLY Driveshaft | 8974A23 | SS/NLA |
|
$0.00 | $0.00 | 1 | |
| 1 | 898289A49 | HOUSING ASSEMBLY Driveshaft | 8974A24 | SS/NLA |
|
$0.00 | $0.00 | 1 | |
| 1 | 898289A49 | HOUSING KIT Driveshaft | 8974A25 | SS/NLA |
|
$0.00 | $0.00 | 1 | |
| 1 | 8974A26 | HOUSING ASSEMBLY Driveshaft | NLA |
|
$0.00 | $0.00 | 1 | ||
| 1 | 8974A27 | HOUSING ASSEMBLY Driveshaft | NLA |
|
$0.00 | $0.00 | 1 | ||
| 2 | 903501 | ----STUD (M10 x 100) | ACT |
|
$14.20 | $13.85 | 1 | ||
| 2 | 8M0034445 | ----STUD (M10 x 166) | 8168664 | SS |
|
$31.33 | $30.77 | 1 | |
| 3 | 4000380 | SCREW (M10 x 45) | ACT |
|
$5.30 | $5.17 | 4 | ||
| 4 | 9035012 | STUD (M10 x 63) | ACT |
|
$13.90 | $13.56 | 4 | ||
| 4 | 8M0034446 | STUD (M10 x 124) | 8168663 | SS |
|
$21.00 | $20.62 | 4 | |
| 5 | 45176 | WASHER (.453 x .812 x .10 | ACT | $1.50 | $1.47 | 5 | |||
| 6 | 40140 | NUT (M10) | 13914 | SS |
|
$3.39 | $3.30 | 5 | |
| 7 | 429222 | GUIDE | NLA |
|
$0.00 | $0.00 | 1 | ||
| 8 | 85822A4 | PICKUP ASSEMBLY Speedometer | ACT |
|
$9.80 | $9.56 | 1 | ||
| 9 | 433351 | ----CONNECTOR 90 Degree (.125-27) Nylon | 43335 | SS |
|
$5.90 | $5.76 | 1 | |
| 10 | 85822T | ----CONNECTOR Straight | 85822 | SS |
|
$2.60 | $2.54 | 1 | |
| 11 | 14664A2 | HOOK ASSEMBLY Reverse | NLA |
|
$0.00 | $0.00 | 1 | ||
| 12 | 16686 | PUSH ROD | NLA |
|
$0.00 | $0.00 | 1 | ||
| 13 | 99606 | SHAFT | NLA |
|
$0.00 | $0.00 | 1 | ||
| 14 | 45882 | COTTER PIN | ACT |
|
$2.82 | $2.77 | 1 | ||
| 15 | 69132 | BUSHING | NLA |
|
$0.00 | $0.00 | 2 | ||
| 16 | 996261 | SPRING | NLA |
|
$0.00 | $0.00 | 1 | ||
| 17 | 47959 | COTTER PIN | ACT |
|
$2.99 | $2.92 | 1 | ||
| 18 | 8M0042642 | WASHER (.323 x .563 x .06 | 70132 | SS |
|
$1.80 | $1.76 | 1 | |
| 19 | 16733 | SPRING | NLA |
|
$0.00 | $0.00 | 1 | ||
| 20 | 996361 | YOKE | NLA |
|
$0.00 | $0.00 | 1 | ||
| 21 | 82670911 | NUT (.312-24) Stainless S | 35814 | SS |
|
$4.98 | $4.86 | 1 | |
| 22 | 99663 | PIN Clevis | NLA |
|
$0.00 | $0.00 | 1 | ||
| 23 | 25191 | COTTER PIN | ACT |
|
$3.80 | $3.71 | 1 | ||
| 24 | 42930A1 | MOUNT ASSEMBLY Lower | ACT |
|
$131.83 | $124.15 | 2 | ||
| 24 | 44343T1 | MOUNT | 443431 | SS |
|
$89.08 | $85.69 | 2 | |
| 25 | 898835001 | BOLT (M12 x 154) | 42973 | SS |
|
$21.33 | $20.95 | 2 | |
| 26 | 8M4500752 | COVER Black | 67077T | SS |
|
$24.25 | $23.82 | 2 | |
| 26 | 8M4500752 | COVER Gray | 67077F1 | REP |
|
$24.25 | $23.82 | 2 | |
| 26 | 8M4500752 | COVER | 67077F2 | SS |
|
$24.25 | $23.82 | 2 | |
| 27 | 88417 | SCREW (#12-24 x .620) | ACT | $1.80 | $1.76 | 4 | |||
| 28 | 30119 | WASHER (.875 Inch Outside Diameter) | ACT | $2.70 | $2.64 | 2 | |||
| 29 | 8M0204662 | NUT (M12) | 43528 | SS |
|
$14.60 | $14.24 | 2 | |
| 30 | 88238A10 | CABLE ASSEMBLY Ground | ACT | $8.30 | $8.10 | 2 | |||
| 31 | 41508 | SCREW (.250-20 x .500) Stainless Steel | ACT | $3.80 | $3.71 | 1 | |||
| 32 | 8M0036730 | CLAMP | 93192 | SS |
|
$27.58 | $27.09 | 2 | |
| 33 | 35521 | NUT | ACT | $2.81 | $2.75 | 4 | |||
| 34 | 4010725 | SCREW (M8 x 25) | ACT | $5.80 | $5.66 | 4 | |||
| 35 | 816696T7 | SPACER | 816696F7 | SS/NLA |
|
$0.00 | $0.00 | 1 | |
| 35 | 816696T8 | SPACER | 816696F8 | SS/NLA |
|
$0.00 | $0.00 | 1 | |
| 35 | 12092A3 | SPACER KIT | ACT |
|
$382.58 | $360.28 | 1 | ||
| 35 | 12092A4 | SPACER KIT | NLA |
|
$0.00 | $0.00 | 1 | ||
| 36 | 43044 | ----PIN Dowel - Without Hole (.375 x .625) | ACT |
|
$2.50 | $2.44 | 1 | ||
| 36 | 8M0084244 | ----PIN Dowel - With Hole (.375 x .625) | 43043 | SS |
|
$3.30 | $3.22 | 1 | |
| 37 | 40140 | NUT (M10) | 13914 | SS |
|
$3.39 | $3.30 | 4 | |
| 38 | 8M0034446 | STUD (M10 x 124) | 8168663 | SS |
|
$21.00 | $20.62 | 4 | |
| 38 | 903503 | STUD (M10 x 190) | ACT |
|
$25.50 | $25.04 | 4 | ||
| 39 | 8M0034445 | STUD (M10 x 166) | 8168664 | SS |
|
$31.33 | $30.77 | 1 | |
| 39 | 903502 | STUD (M10 x 227) | ACT |
|
$86.08 | $82.80 | 1 |
