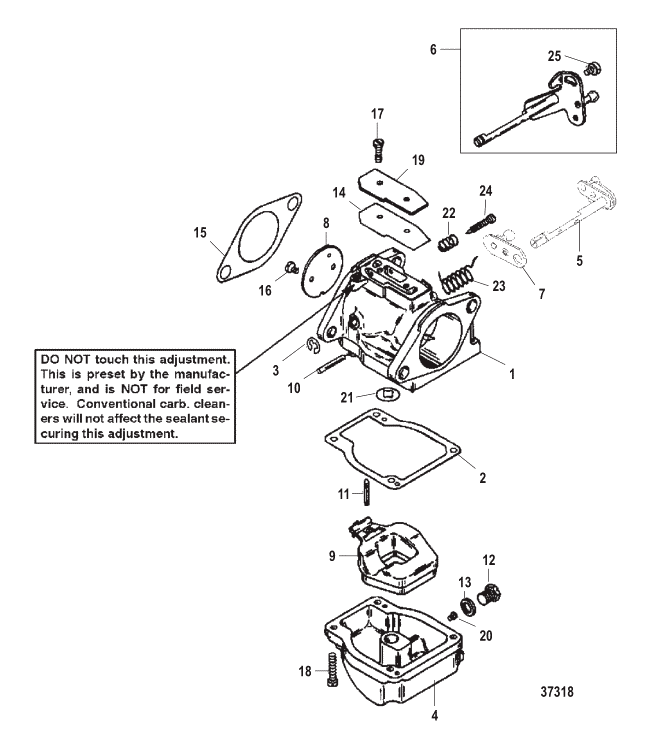

Ref # Current
Part Nbr		 Description Superceded
From		 Status Notes List
Price		 Online
Price		 Quan
Used		 Order
Quan
1 823799T39 CARBURETOR 821679A29 SS/NLA $0.00 $0.00 1
1 823799T40 CARBURETOR 821679A30 SS/NLA $0.00 $0.00 1
1 823799T41 CARBURETOR 821679A31 SS $321.08 $302.37 1
1 823799T42 CARBURETOR 821679A32 SS/NLA $0.00 $0.00 1
1 884586T07 CARBURETOR 824902A5 SS $314.42 $296.11 1
1 884586T08 CARBURETOR 824902A6 SS $297.00 $279.69 1
1 884586T09 CARBURETOR 824902A7 SS $434.79 $415.61 1
1 884586T10 CARBURETOR 824902A8 SS $324.17 $305.27 1
1 884587T07 CARBURETOR 821680A5 SS/NLA $0.00 $0.00 1
1 884587T08 CARBURETOR 821680A6 SS/NLA $0.00 $0.00 1
1 884587T09 CARBURETOR 821680A7 SS/NLA $0.00 $0.00 1
1 884587T10 CARBURETOR 821680A8 SS/NLA $0.00 $0.00 1
1 823799T39 CARBURETOR 823799A19 SS/NLA $0.00 $0.00 1
1 823799T40 CARBURETOR 823799A20 SS/NLA $0.00 $0.00 1
1 823799T41 CARBURETOR 823799A21 SS $321.08 $302.37 1
1 823799T42 CARBURETOR 823799A22 SS/NLA $0.00 $0.00 1
1 884586T07 CARBURETOR 824902A19 SS $314.42 $296.11 1
1 884586T08 CARBURETOR 824902A20 SS $297.00 $279.69 1
1 884586T09 CARBURETOR 824902A21 SS $434.79 $415.61 1
1 884586T10 CARBURETOR 824902A22 SS $324.17 $305.27 1
1 884587T07 CARBURETOR 824894A4 SS/NLA $0.00 $0.00 1
1 884587T08 CARBURETOR 824894A5 SS/NLA $0.00 $0.00 1
1 884587T09 CARBURETOR 824894A6 SS/NLA $0.00 $0.00 1
1 884587T10 CARBURETOR 824894A7 SS/NLA $0.00 $0.00 1
2 NSS --------NOT SOLD SEPARATE Gasket-Fuel Bowl $0.00 $0.00 4
3 NSS --------NOT SOLD SEPARATE Retaining Ring $0.00 $0.00 4
4 811693 ----BOWL Fuel ACT $96.25 $92.58 4
5 823632 ----SHAFT Throttle (WME-1/3/4) ACT $64.08 $61.64 3
6 8236321 ----SHAFT Throttle (WME-2) NLA $0.00 $0.00 1
7 8087461 ----LEVER Throttle (WME-1/3/4) ACT $20.50 $20.13 3
8 97241 ----VALVE Throttle NLA $0.00 $0.00 4
8 97244 ----VALVE Throttle NLA $0.00 $0.00 4
9 9594 ----FLOAT ACT $27.58 $27.04 4
10 F10064 ----SHAFT ACT $4.60 $4.49 4
11 879194011 ----VALVE Inlet ACT $16.99 $16.64 4
12 811694 ----PLUG KIT ACT $21.92 $21.54 4
13 802731 --------SEAL (CONSISTS OF 4 SEALS) ACT $25.67 $25.21 1
14 NSS --------NOT SOLD SEPARATE Gasket-Cover Plate $0.00 $0.00 4
15 151724 ----GASKET 151723 SS $2.60 $2.54 4
16 F10155 ----SCREW Throttle Valve ACT $2.81 $2.75 8
17 811220 ----SCREW Cover Plate NLA $0.00 $0.00 8
18 808612 ----SCREW AND WASHER (#8-32 x ACT $2.70 $2.64 16
19 811221 ----COVER PLATE ACT $16.83 $16.53 4
20 6359 ----JET (.052) ACT $4.10 $4.00 1
20 6028 ----JET (.050) ACT $4.10 $4.00 2
20 6359 ----JET (.052) ACT $4.10 $4.00 1
20 4217 ----JET Main (.062) ACT $4.10 $4.00 3
20 4216 ----JET (.064) ACT $4.10 $4.00 1
20 6030 ----JET (.070) ACT $4.10 $4.00 1
20 6201 ----JET (.080) ACT $16.00 $15.61 2
20 3518 ----JET (.082) ACT $4.10 $4.00 1
20 6359 ----JET (.052) ACT $4.10 $4.00 1
20 6028 ----JET (.050) ACT $4.10 $4.00 2
20 6359 ----JET (.052) ACT $4.10 $4.00 1
20 6487 ----JET Main (.060) ACT $15.39 $15.02 1
20 4216 ----JET (.064) ACT $4.10 $4.00 1
20 4217 ----JET Main (.062) ACT $4.10 $4.00 3
20 6030 ----JET (.070) ACT $4.10 $4.00 1
20 6201 ----JET (.080) ACT $16.00 $15.61 2
20 3518 ----JET (.082) ACT $4.10 $4.00 1
21 808738 ----GASKET ACT $7.00 $6.83 4
22 NSS --------NOT SOLD SEPARATE Spring-Idle Needle $0.00 $0.00 2
23 NSS --------NOT SOLD SEPARATE Spring-Throttle Return $0.00 $0.00 4
24 NSS --------NOT SOLD SEPARATE Idle Needle $0.00 $0.00 2
25 823634 ----SCREW NLA $0.00 $0.00 3
- 8112231 GASKET SET Carburetor ACT $16.49 $16.16 1
- 8236354 REPAIR KIT Carburetor ACT $64.49 $62.28 1
- 13461A99 GASKET SET 13461A90 SS $281.17 $264.78 1
