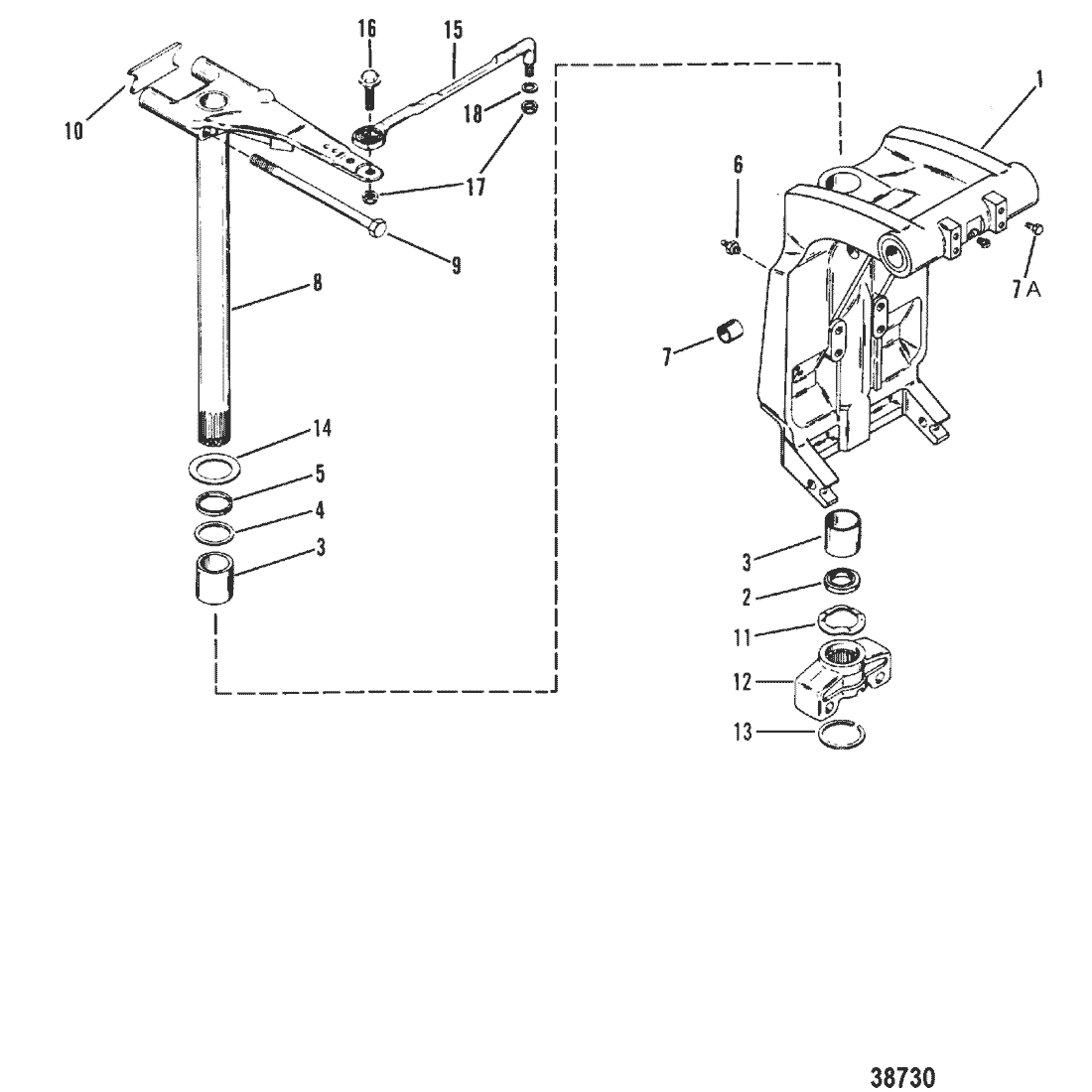

| Ref # | Current Part Nbr |
Description | Superceded From |
Status | Notes | List Price |
Online Price |
Quan Used |
Order Quan |
|---|---|---|---|---|---|---|---|---|---|
| 1 | 8M0102865 | SWIVEL BRACKET ASSEMBLY | 8710A20 | SS/ACT |
 |
$1,539.00 | $1,410.84 | 1 | |
| 2 | 87735 | --SEAL, Oil (LOWER) | ACT | $28.75 | $28.23 | 1 | |||
| 3 | 818764 | --BUSHING, LOWER AND UPPER | 67669 | SS/ACT |
|
$30.00 | $29.46 | 2 | |
| 4 | 33466 | --O-RING, UPPER | ACT | $3.10 | $3.03 | 1 | |||
| 5 | 67668 | --SPACER, UPPER | SS |
|
$0.00 | $0.00 | 1 | ||
| 6 | 8M0169589 | --FITTING, Grease | 74036 | SS/ACT |
|
$4.60 | $4.49 | 2 | |
| 7 | 821207 | --BUSHING | 99608 | SS/ACT |
|
$11.10 | $10.83 | 2 | |
| 7A | 64014 | --SCREW, (.250-28 x .500) | ACT | $1.70 | $1.67 | 2 | |||
| 8 | 99661A2 | SWIVEL PIN ASSEMBLY | SS |
|
$0.00 | $0.00 | 1 | ||
| 9 | 99621 | SCREW, (.437-20 x 6.620) | SS |
|
$0.00 | $0.00 | 2 | ||
| 10 | 28203 | BUMPER | SS |
|
$0.00 | $0.00 | 1 | ||
| 11 | 78854 | WAVE WASHER | ACT | $13.40 | $13.07 | 1 | |||
| 12 | 42961T | YOKE, Bottom | SS |
|
$0.00 | $0.00 | 1 | ||
| 13 | 67684 | --RING, Retaining | ACT | $4.30 | $4.20 | 1 | |||
| 14 | 67670 | WASHER | SS |
|
$0.00 | $0.00 | 1 | ||
| 15 | 92876A12 | LINK ASSEMBLY, Steering | 92876A1 | SS/ACT |
|
$87.45 | $84.13 | 1 | |
| 16 | 849838 | SCREW, (.375-24 x 1.25) | 14000 | SS/ACT |
|
$21.25 | $20.87 | 1 | |
| 17 | 8M0204726 | NUT, (.375-24) | 34863 | SS/ACT |
|
$1.70 | $1.66 | 2 | |
| 18 | 34931 | WASHER, (.406 x .734 x .063) Stainless Steel | ACT | $2.50 | $2.44 | 2 | |||
| - | 85489A87 | GASKET SET | SS |
|
$0.00 | $0.00 | 1 |
