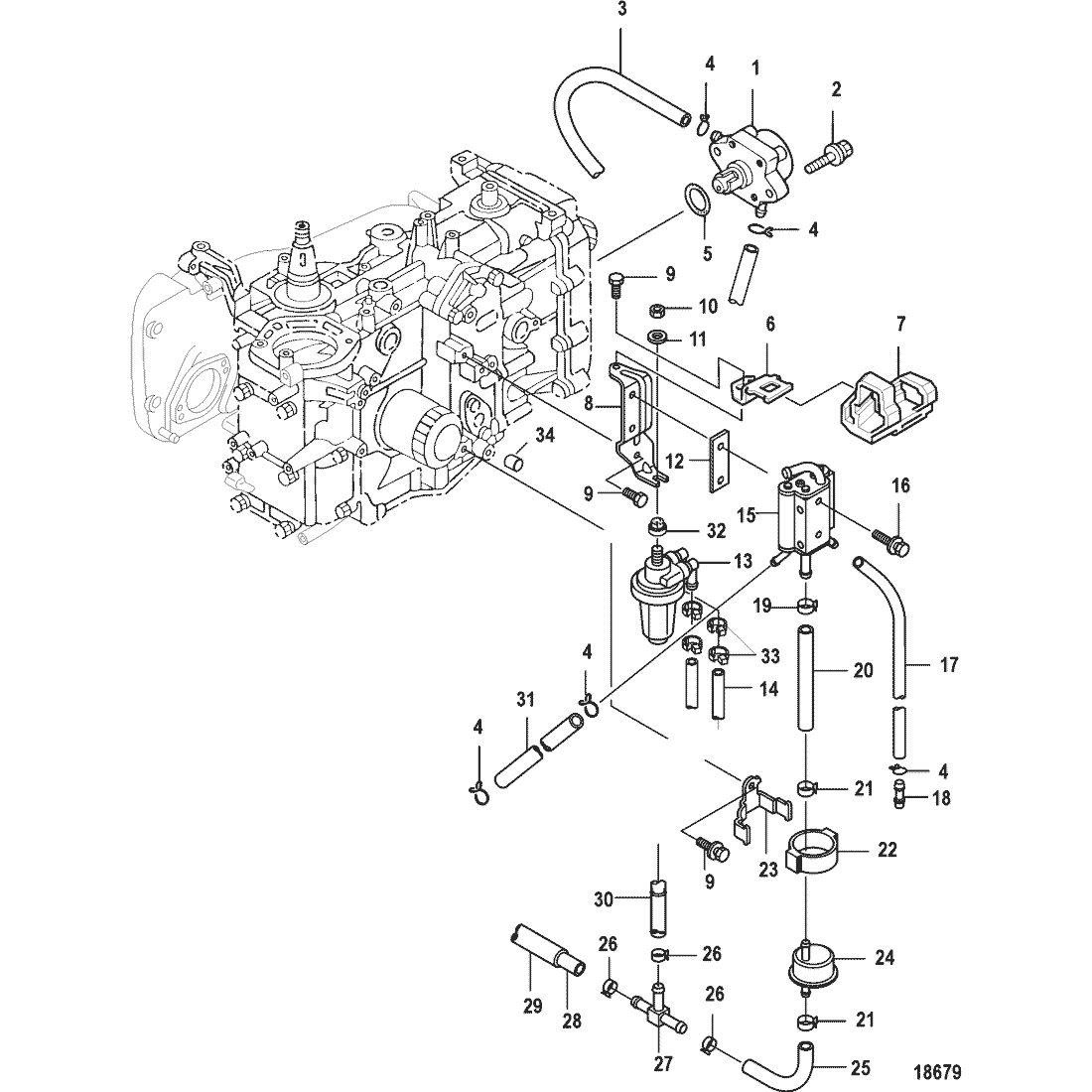

| Ref # | Current Part Nbr |
Description | Superceded From |
Status | Notes | List Price |
Online Price |
Quan Used |
Order Quan |
|---|---|---|---|---|---|---|---|---|---|
| 1 | 803529T04 | PUMP ASSEMBLY, Fuel | ACT | $167.33 | $157.58 | 1 | |||
| 2 | 823042 | BOLT, Stainless Steel | 825702002 | SS/ACT |
 |
$3.70 | $3.61 | 2 | |
| 3 | 804821004 | HOSE, Fuel (600 mm), To Vapor Seperator | SS |
|
$0.00 | $0.00 | 1 | ||
| 4 | 95395 | CLIP, Stainless Steel | ACT | $3.00 | $2.93 | AR | |||
| 5 | 16109003 | O-RING | 161313 | SS/ACT |
|
$4.60 | $4.49 | 1 | |
| 6 | 898101222 | BRACKET | ACT | $6.60 | $6.44 | 1 | |||
| 7 | 898101223 | MOUNT, Rubber | ACT | $28.92 | $28.40 | 1 | |||
| 8 | 898101033 | PLATE | ACT | $22.50 | $22.10 | 1 | |||
| 9 | 8248324 | SCREW, (M6 x 16) | ACT | $1.70 | $1.66 | 3 | |||
| 10 | 8537227 | NUT, Nylon | ACT | $5.80 | $5.66 | 1 | |||
| 11 | 953921 | WASHER | 895118002 | SS/ACT |
|
$5.40 | $5.27 | 1 | |
| 12 | 898101066 | GASKET, Fuel Cooler | ACT | $12.60 | $12.29 | 1 | |||
| 13 | 8M0088825 | FILTER, Fuel | 898101T68 | SS/ACT |
|
$71.08 | $68.37 | 1 | |
| 14 | 898101266 | HOSE, Fuel Filter to Fuel Pump | ACT | $15.80 | $15.41 | 1 | |||
| 15 | 898101T65 | COOLER, Fuel | ACT | $666.43 | $626.98 | 1 | |||
| 16 | 8M0098606 | BOLT | 82304230 | SS/ACT |
|
$3.80 | $3.71 | 2 | |
| 17 | 8M0105119 | HOSE, Rubber (700 mm), Fuel Cooler to Water Connector | 898101156 | SS/ACT |
|
$14.50 | $14.14 | 1 | |
| 18 | 898101219 | CONNECTOR | ACT | $6.70 | $6.54 | 1 | |||
| 19 | 898101237 | CLAMP, (16.8) | ACT | $7.20 | $7.03 | 1 | |||
| 20 | 8M0120630 | HOSE, Rubber, Fuel Cooler to High Pressure Fuel Filter | 898101268 | SS/ACT |
|
$26.58 | $26.11 | 1 | |
| 21 | 803525004 | CLIP | 898101027 | SS/ACT |
|
$3.50 | $3.42 | 2 | |
| 22 | 898101070 | MOUNT, Rubber-Fuel Filter | ACT | $17.00 | $16.58 | 1 | |||
| 23 | 898101069 | BRACKET, Fuel Filter | ACT | $16.20 | $15.80 | 1 | |||
| 24 | 898101093 | FILTER, Fuel-High Pressure | ACT | $61.92 | $59.56 | 1 | |||
| 25 | 898101271 | HOSE | ACT | $18.25 | $17.92 | 1 | |||
| 26 | 856880002 | CLAMP | ACT | $11.10 | $10.83 | 3 | |||
| 27 | 898101211 | FITTING | ACT | $7.00 | $6.83 | 1 | |||
| 28 | 898101269 | HOSE, Rubber, To Fuel Rail | SS |
|
$0.00 | $0.00 | 1 | ||
| 29 | 898101104 | SLEEVE | ACT | $7.90 | $7.71 | 1 | |||
| 30 | 898101270 | HOSE, Rubber, To Vapor Seperator | ACT | $61.25 | $58.92 | 1 | |||
| 31 | 898101100 | HOSE, (600 mm), To Cylinder Block | ACT | $13.50 | $13.17 | 1 | |||
| 32 | 898101274 | COLLAR | ACT | $7.80 | $7.61 | 1 | |||
| 33 | 816311T | TIE STRAP | 898101275 | SS/ACT |
|
$0.60 | $0.59 | 4 | |
| 34 | 898101925 | PLUG | ACT |
|
$9.40 | $9.17 | 1 |
