Ref # Current
Part Nbr		 Description Superceded
From		 Status Notes List
Price		 Online
Price		 Quan
Used		 Order
Quan

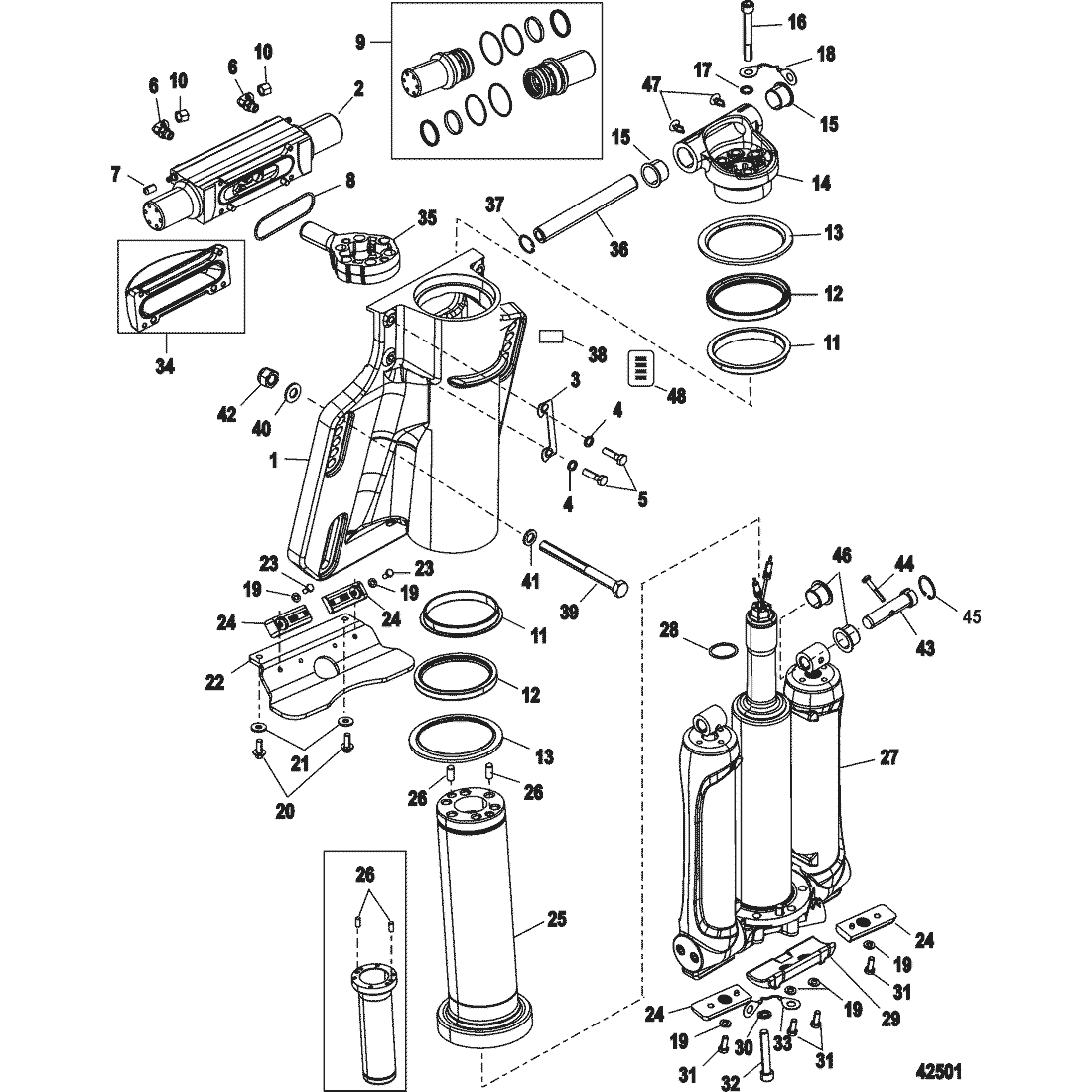

- NSS NOT SOLD SEPARATE, Transom Assembly $0.00 $0.00 1
1 880652T02 --PEDESTAL 880652T01 SS $1,442.49 $1,322.11 1
2 8M0118141 --STEERING CYLINDER KIT 896500A01 NLA $1,000.09 $908.09 1
3 8M0168425 ----RETAINER 893409 SS $81.49 $78.31 2
4 895853 ----WASHER ACT $2.29 $2.24 4
5 88509530 ----SCREW, (M8 x 30) ACT $19.49 $19.07 4
6 889552 ----ELBOW ACT $58.99 $56.59 1
7 889550 ----CAP, Bleeder - Vinyl ACT $1.10 $1.08 2
8 8M0155530 ----SEAL 880667 SS $11.69 $11.41 1
9 8M0045604 ----SEAL KIT, Steering Cylinder 896173A01 SS $146.49 $137.96 1
10 892524 ----CAP, Fitting ACT $28.43 $28.04 2
11 8M0217557 --BEARING 8806621 SS $34.99 $34.36 2
12 8M0217558 --SEAL 880661 SS $54.49 $52.26 2
13 8M0217560 --BEARING 8806561 SS $41.49 $40.58 2
14 880654T03 --HEAD, Steering ACT $1,099.49 $1,007.81 1
15 8806551 --BEARING, (1.25 Inch) ACT $33.99 $33.39 2
16 885094105 --SCREW, (M14 x 105) ACT $39.49 $38.77 6
17 8M0217559 --WASHER 885112 SS $5.49 $5.37 7
18 88238T23 --CABLE ASSEMBLY ACT $20.79 $20.38 1
19 8M0161430 --WASHER 889545 SS $1.50 $1.47 6
20 4010720 --SCREW, (M8 x 20) ACT $4.19 $4.10 2
21 72397 --WASHER ACT $5.49 $5.37 2
22 8M0045157 --PLATE, Deflector (Silver) 896120T NLA $164.49 $154.84 1
22 8M0045157 --PLATE, Deflector (Black) ACT $164.49 $154.84 1
23 4000327 --SCREW, (M6 x 14) ACT $2.99 $2.92 2
24 893404 --ANODE ACT $29.09 $28.56 4
25 8M0220571 --TUBE, Steering 880660T01 SS $742.99 $698.82 1
26 885111 --PIN, Dowel (.375 x .875) ACT $14.19 $13.85 6/8
27 8M0142342 --POWER TRIM ASSEMBLY 880658T01 SS $3,642.99 $3,339.42 1
28 8M0217562 --O-RING 895854 SS $3.79 $3.69 1
29 880653 --ANODE ACT $70.49 $67.57 1
30 889549 --WASHER ACT $19.59 $19.23 6
31 889543016 --BOLT ACT $2.99 $2.92 4
32 88510450 --SCREW ACT $36.99 $36.30 6
33 88238T24 --CABLE ASSEMBLY ACT $15.09 $14.73 1
34 8M0217564 --COVER 893405T SS $219.99 $207.18 1
35 880665T01 --ARM, Steering ACT $326.99 $307.55 1
36 8M0228705 TILT PIN 895390 SS $103.99 $97.86 1
37 8M0038931 RING, Retaining 885100 SS $9.49 $9.27 1
38 NSS NOT SOLD SEPARATE, Decal-Serial Overlaminate $0.00 $0.00 1
39 8M0038370 SCREW, (.500-20 x 5.500) 67755003 SS $25.29 $24.80 4
40 8M0204648 WASHER, (1.5 x 3.05 x 0.13) Stainless Steel 28421 SS $3.99 $3.91 4
41 8M0204704 WASHER 895062 SS $1.90 $1.86 4
42 82671117 NUT, (.500-20) ACT $8.99 $8.78 4
43 8M0146467 PIN 884889002 SS $149.99 $140.95 2
44 821539 PIN, Trilobe ACT $6.29 $6.15 2
45 895304 RING, Retaining ACT $5.69 $5.56 2
46 8806641 BEARING, (.625 Inch) ACT $5.89 $5.76 4
46 8M0085825 BEARING, Flanged Journal 8M0032437 SS $9.89 $9.66 4
47 95925 PLUG ACT $5.19 $5.08 2
48 8M0043059 DECAL, Warning ACT $1.10 $1.08 1
