| Ref # | Current Part Nbr |
Description | Superceded From |
Status | Notes | List Price |
Online Price |
Quan Used |
Order Quan |
|---|---|---|---|---|---|---|---|---|---|

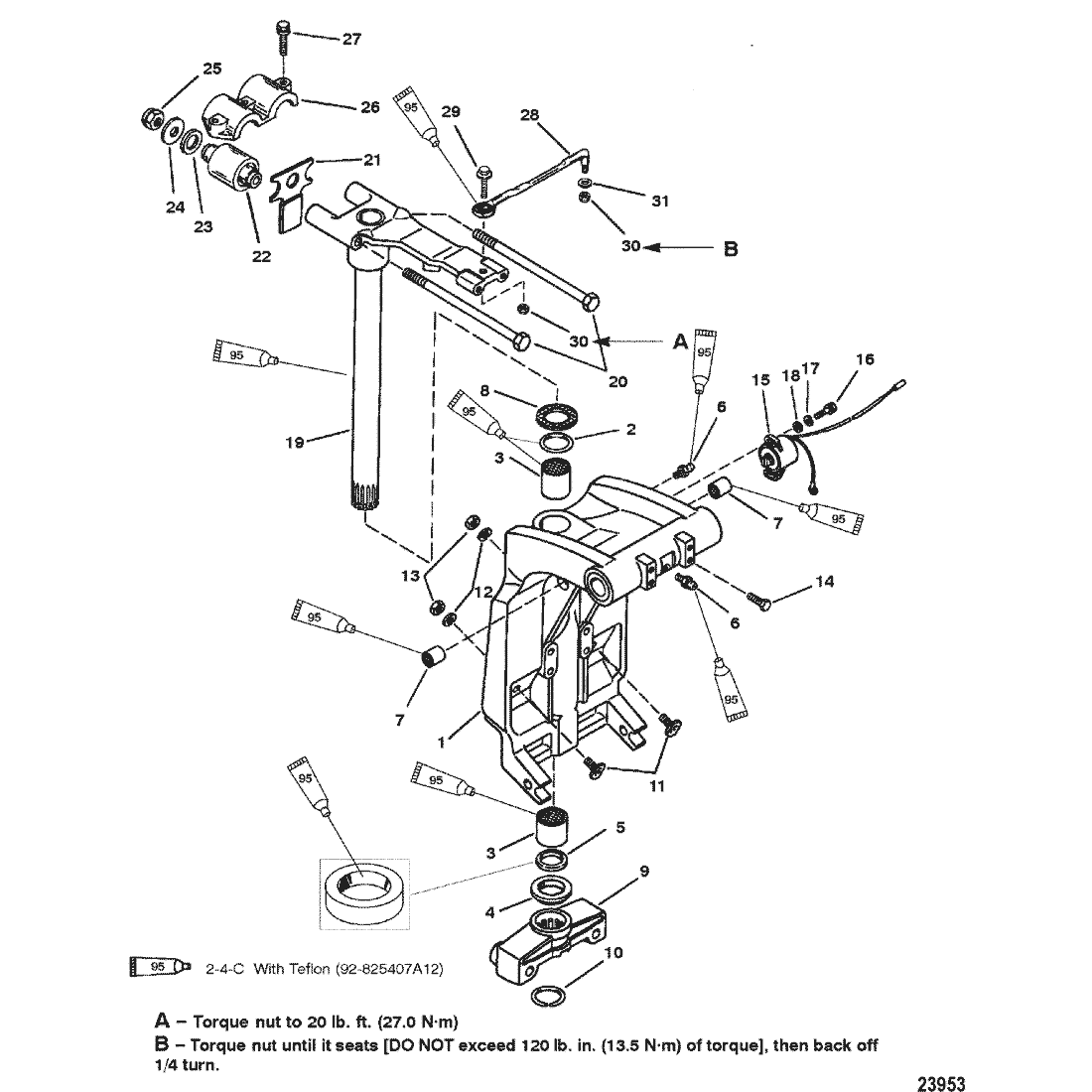

| 1 | 8M0102865 | SWIVEL BRACKET ASSEMBLY | 8710A20 | SS/ACT |
 |
$1,539.00 | $1,410.84 | 1 | |
| 1 | 8710T21 | SWIVEL BRACKET ASSEMBLY | SS |
|
$0.00 | $0.00 | 1 | ||
| 1 | 8710A23 | SWIVEL BRACKET | SS |
|
$0.00 | $0.00 | 1 | ||
| 2 | 33504 | --O-RING | ACT | $2.80 | $2.74 | 1 | |||
| 3 | 818764 | --BUSHING | ACT | $30.00 | $29.46 | 2 | |||
| 4 | 816039 | --SPACER | ACT | $13.30 | $12.97 | 1 | |||
| 5 | 87735 | --SEAL, Oil (LOWER) | ACT | $28.75 | $28.23 | 1 | |||
| 6 | 8M0169589 | --FITTING, Grease | 74036 | SS/ACT |
|
$4.60 | $4.49 | 2 | |
| 7 | 821207 | --BUSHING | ACT | $11.10 | $10.83 | 2 | |||
| 8 | 816432 | --THRUST WASHER | ACT | $6.70 | $6.54 | 1 | |||
| 9 | 814084F1 | YOKE, Bottom | ACT |
|
$325.00 | $306.06 | 1 | ||
| 9 | 814084F2 | YOKE, Bottom | SS |
|
$0.00 | $0.00 | 1 | ||
| 9 | 826364T | YOKE, Bottom | 826364F1 | SS/ACT |
|
$467.07 | $446.46 | 1 | |
| 9 | 826364F2 | YOKE, Bottom | SS |
|
$0.00 | $0.00 | 1 | ||
| 9 | 826364F3 | YOKE, Bottom | SS |
|
$0.00 | $0.00 | 1 | ||
| 10 | 67684 | RING, Retaining | ACT | $4.30 | $4.20 | 1 | |||
| 11 | 8M0045383 | STRIKER PLATE | 996301 | SS/ACT |
|
$11.80 | $11.51 | 2 | |
| 12 | 58643 | LOCKWASHER, (.375) | ACT | $1.70 | $1.66 | 2 | |||
| 13 | 46335 | NUT, (.375-24) | ACT | $2.83 | $2.77 | 2 | |||
| 14 | 64014 | SCREW, (.250-28 x .500) | ACT | $1.70 | $1.67 | 2 | |||
| 15 | 8M0074846 | SENDER ASSEMBLY, Trim | SS |
|
$0.00 | $0.00 | 1 | ||
| 16 | 852368 | SCREW, (#10-24 x .750) | 56682 | SS/ACT |
|
$1.60 | $1.57 | 2 | |
| 17 | 26996 | LOCKWASHER, (#10) Stainless Steel | ACT | $1.20 | $1.18 | 2 | |||
| 18 | 89302 | WASHER, (.203 x .406 x .040) | ACT | $1.70 | $1.66 | 2 | |||
| 19 | 67706A55 | SWIVEL PIN ASSEMBLY, Steering Arm | SS |
|
$0.00 | $0.00 | 1 | ||
| 19 | 67706A55 | SWIVEL PIN ASSEMBLY, Steering Arm | SS |
|
$0.00 | $0.00 | 1 | ||
| 19 | 8M0132731 | SWIVEL PIN ASSEMBLY, Steering Arm - Stainless Steel | ACT |
|
$996.64 | $937.65 | 1 | ||
| 19 | 826432A3 | SWIVEL PIN ASSEMBLY, Steering Arm - Stainless Steel | SS |
|
$0.00 | $0.00 | 1 | ||
| 19 | 8M0132731 | SWIVEL PIN ASSEMBLY | 826432A6 | SS/ACT |
|
$996.64 | $937.65 | 1 | |
| 20 | 8M0141069 | SCREW, (M12 x 190) | 816386 | SS/ACT |
|
$16.80 | $16.39 | 2 | |
| 21 | 824998001 | BUMPER | 824998 | SS/ACT |
|
$14.70 | $14.34 | 1 | |
| 22 | 8163851 | MOUNT, Upper | ACT | $80.17 | $77.11 | 2 | |||
| 23 | 8154371 | WASHER | 815437 | SS/ACT |
|
$6.20 | $6.05 | 2 | |
| 24 | 815436 | WASHER | ACT | $8.70 | $8.49 | 2 | |||
| 25 | 896963 | NUT, (M12) | 90099 | SS/ACT |
|
$5.90 | $5.76 | 2 | |
| 26 | 8M0036783 | CLAMP | 813769 | SS/ACT |
|
$49.92 | $49.02 | 1 | |
| 27 | 81893435 | SCREW, (M8 x 35) | ACT | $3.80 | $3.71 | 3 | |||
| 28 | 92876A12 | LINK ASSEMBLY, Steering | 92876A1 | SS/ACT |
|
$87.45 | $84.13 | 1 | |
| 29 | 849838 | SCREW, (.375-24 x 1.25) | 14000 | SS/ACT |
|
$21.25 | $20.87 | 1 | |
| 30 | 8M0204726 | NUT, (.375-24) | 34863 | SS/ACT |
|
$1.70 | $1.66 | 2 | |
| 31 | 37828 | WASHER, (.390 x .625 x .062) Stainless Steel | ACT | $0.80 | $0.79 | 2 |
