| Ref # | Current Part Nbr |
Description | Superceded From |
Status | Notes | List Price |
Online Price |
Quan Used |
Order Quan |
|---|---|---|---|---|---|---|---|---|---|

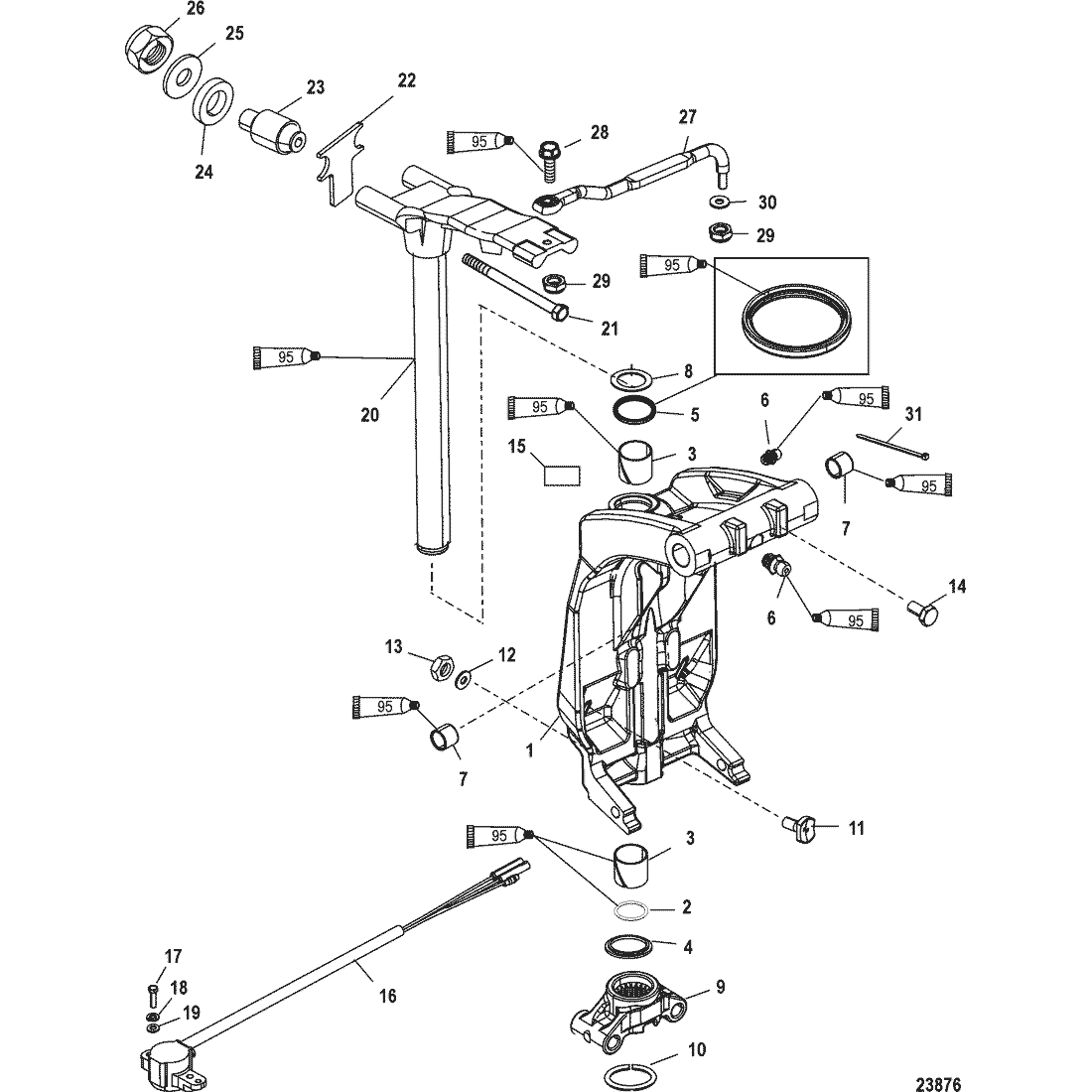

| 1 | 8M0102865 | SWIVEL BRACKET ASSEMBLY, Black | 8710T20 | SS/ACT |
 |
$1,539.00 | $1,410.84 | 1 | |
| 2 | 33504 | --O-RING | ACT | $2.80 | $2.74 | 1 | |||
| 3 | 818764 | --BUSHING | ACT | $30.00 | $29.46 | 2 | |||
| 4 | 816039 | --SPACER | ACT | $13.30 | $12.97 | 1 | |||
| 5 | 87735 | --SEAL, Oil, Lower | ACT | $28.75 | $28.23 | 1 | |||
| 6 | 8M0169589 | --FITTING, Grease | 74036 | SS/ACT |
|
$4.60 | $4.49 | 2 | |
| 7 | 821207 | --BUSHING | ACT | $11.10 | $10.83 | 2 | |||
| 8 | 816432 | --THRUST WASHER | ACT | $6.70 | $6.54 | 1 | |||
| 9 | 878182T01 | YOKE, Bottom | ACT | $146.58 | $138.04 | 1 | |||
| 10 | 67684 | RING, Retaining | ACT | $4.30 | $4.20 | 1 | |||
| 11 | 8M0045383 | STRIKER PLATE | 996301 | SS/ACT |
|
$11.80 | $11.51 | 2 | |
| 12 | 58643 | LOCKWASHER, (.375) | ACT | $1.70 | $1.66 | 2 | |||
| 13 | 46335 | NUT, (.375-24) | ACT | $2.83 | $2.77 | 2 | |||
| 14 | 64014 | SCREW, (.250-28 x .500) | ACT | $1.70 | $1.67 | 2 | |||
| 15 | NSS | NOT SOLD SEPARATE, Decal-Serial Overlaminate |
|
$0.00 | $0.00 | 1 | |||
| 16 | 896688001 | SENDER ASSEMBLY, Trim, Digital | ACT | $187.00 | $176.10 | 1 | |||
| 16 | 8M0074846 | SENDER ASSEMBLY, Trim, Analog | SS |
|
$0.00 | $0.00 | 1 | ||
| 17 | 852368 | SCREW, (#10-24 x .750) | ACT | $1.60 | $1.57 | 2 | |||
| 18 | 26996 | LOCKWASHER, (#10) Stainless Steel | ACT | $1.20 | $1.18 | 2 | |||
| 19 | 89302 | WASHER, (.203 x .406 x .040) | ACT | $1.70 | $1.66 | 2 | |||
| 20 | 8M0132731 | SWIVEL PIN ASSEMBLY, Steering Arm - Stainless Steel | ACT | $996.64 | $937.65 | 1 | |||
| 21 | 8M0176309 | SCREW, (.437-20 x 7.500) | 8M0000491 | SS/ACT |
|
$12.20 | $11.90 | 2 | |
| 22 | 8M0000516 | BUMPER, Top Yoke | ACT | $15.00 | $14.63 | 1 | |||
| 23 | 77326 | MOUNT | ACT | $155.50 | $146.44 | 2 | |||
| 24 | 66921 | WASHER | ACT | $5.50 | $5.37 | 2 | |||
| 25 | 78688 | WASHER | ACT | $1.70 | $1.66 | 2 | |||
| 26 | 8M0204653 | NUT, (.437-20) Stainless Steel | 34933 | SS/ACT |
|
$5.10 | $4.98 | 2 | |
| 27 | 92876A12 | LINK ROD ASSEMBLY | ACT |
|
$87.45 | $84.13 | 1 | ||
| 28 | 849838 | --SCREW, (.375-24 x 1.250) | ACT | $21.25 | $20.87 | 1 | |||
| 29 | 8M0204726 | --NUT, (.375-24) Stainless Steel | 826709113 | SS/ACT |
|
$1.70 | $1.66 | 1 | |
| 29 | 8M0204726 | --NUT, (.375-24) Brass | 8M0042636 | SS/ACT |
|
$1.70 | $1.66 | 1 | |
| 30 | 37828 | --WASHER, (.390 x .625 x .062) Stainless Steel | ACT | $0.80 | $0.79 | 2 | |||
| 31 | 816311T | TIE STRAP, (8.00 Inches) | ACT | $0.60 | $0.59 | 1 |
