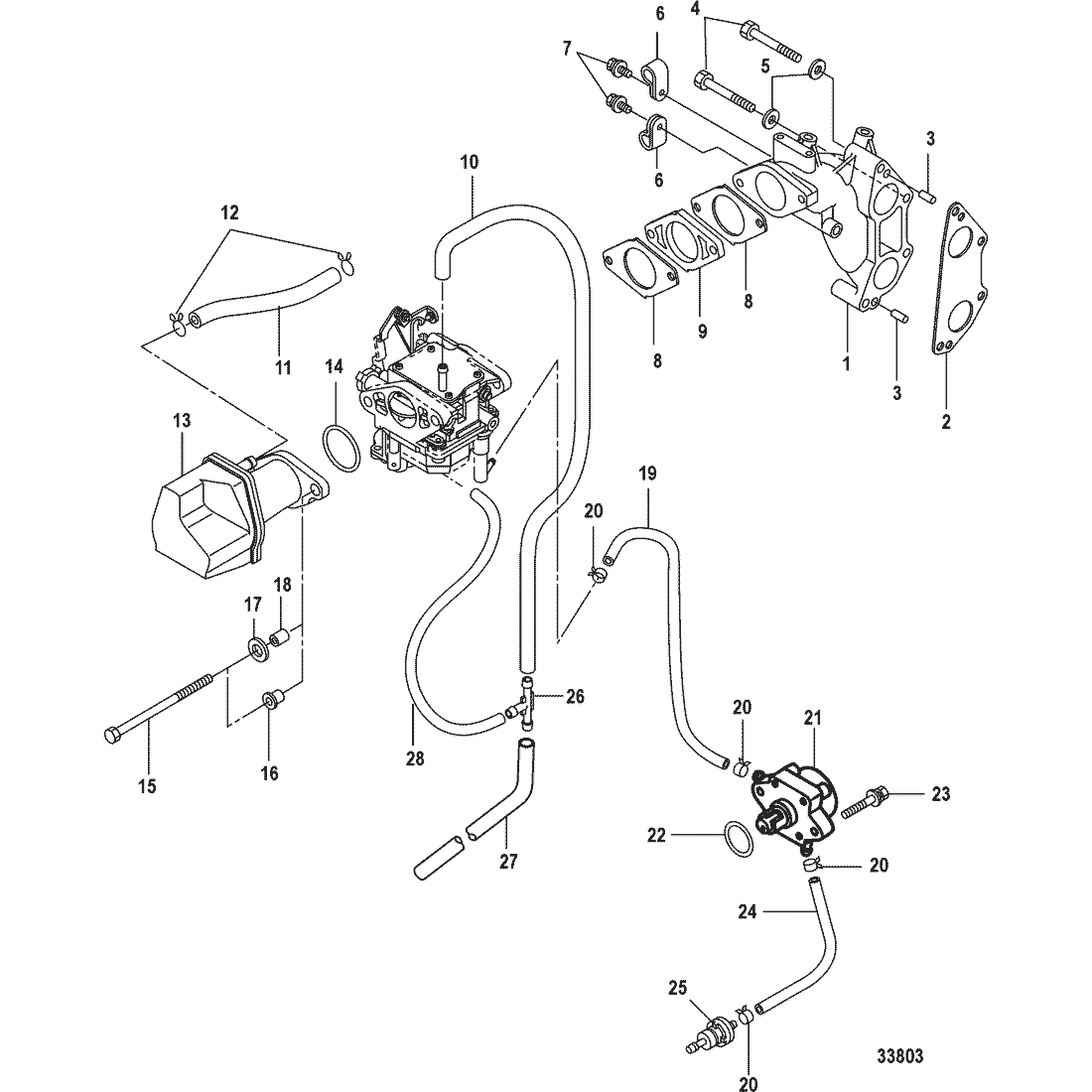

| Ref # | Current Part Nbr |
Description | Superceded From |
Status | Notes | List Price |
Online Price |
Quan Used |
Order Quan |
|---|---|---|---|---|---|---|---|---|---|
| 1 | 879147T64 | MANIFOLD, Intake | ACT | $88.99 | $83.82 | 1 | |||
| 2 | 898101980 | GASKET | ACT | $12.79 | $12.49 | 1 | |||
| 3 | 16119 | PIN, Dowel | ACT | $8.19 | $8.00 | 2 | |||
| 4 | 16125 | BOLT | ACT | $8.19 | $8.00 | 5 | |||
| 5 | 16826 | WASHER | 879194338 | SS |
|
$3.29 | $3.21 | 5 | |
| 6 | 953951 | CLAMP | ACT | $9.29 | $9.07 | 1 | |||
| 7 | 8230427 | BOLT, (M6 x 12) | ACT | $4.09 | $4.00 | 2 | |||
| 8 | 898101981 | GASKET, Carburetor | ACT | $6.79 | $6.64 | 2 | |||
| 9 | 898101983 | INSULATOR | ACT |
|
$5.79 | $5.66 | 1 | ||
| 9 | 8M0084959 | THROTTLE LIMITER | ACT |
|
$13.39 | $13.07 | 1 | ||
| 10 | 898103186 | HOSE, Breather-Carburetor | ACT | $23.09 | $22.67 | 1 | |||
| 11 | 8M0057114 | HOSE, Rubber (120 mm), Breather | 898101985 | NLA |
|
$18.99 | $18.58 | 1 | |
| 12 | 952245 | CLAMP | ACT | $3.19 | $3.11 | 2 | |||
| 13 | 879147T65 | SILENCER, Intake | ACT | $33.99 | $33.25 | 1 | |||
| 14 | 898101984 | O-RING | ACT | $3.19 | $3.11 | 1 | |||
| 15 | 855809001 | BOLT | ACT | $14.19 | $13.85 | 2 | |||
| 16 | 898101941 | COLLAR | ACT |
|
$6.09 | $5.95 | 2 | ||
| 17 | 16826 | WASHER | 879194338 | SS |
|
$3.29 | $3.21 | 1 | |
| 18 | 952868 | COLLAR | ACT |
|
$3.69 | $3.59 | 2 | ||
| 19 | 8M0057113 | TUBING, (300 mm) | 851848011 | NLA |
|
$27.79 | $27.25 | 1 | |
| 20 | 8M0129429 | CLIP | 851817004 | SS |
|
$5.49 | $5.37 | 4 | |
| 21 | 803529T04 | PUMP ASSEMBLY, Fuel | ACT | $179.49 | $161.82 | 1 | |||
| 22 | 16109003 | O-RING | 161313 | SS |
|
$4.79 | $4.69 | 1 | |
| 23 | 823042 | BOLT | 879194263 | SS |
|
$3.79 | $3.69 | 2 | |
| 24 | 8M0057113 | HOSE, (150 mm) | 851848006 | NLA |
|
$27.79 | $27.25 | 1 | |
| 25 | 8M0157133 | FILTER, Fuel | 16248 | SS |
|
$21.39 | $20.95 | 1 | |
| 26 | 8M0073649 | FITTING, Tee | 898103185 | SS |
|
$4.79 | $4.69 | 1 | |
| 27 | 898103187 | HOSE, Breather | ACT | $25.09 | $24.63 | 1 | |||
| 28 | 8M0057118 | HOSE, (200mm) | 898103189 | SS |
|
$28.49 | $27.91 | 1 | |
| - | 8M0145938 | SHORT BLOCK | 895274T08 | SS |
|
$4,028.55 | $3,608.20 | 1 | |
| - | 803663A08 | GASKET SET, Powerhead | ACT | $264.49 | $238.15 | 1 |
