| Ref # | Current Part Nbr |
Description | Superceded From |
Status | Notes | List Price |
Online Price |
Quan Used |
Order Quan |
|---|---|---|---|---|---|---|---|---|---|

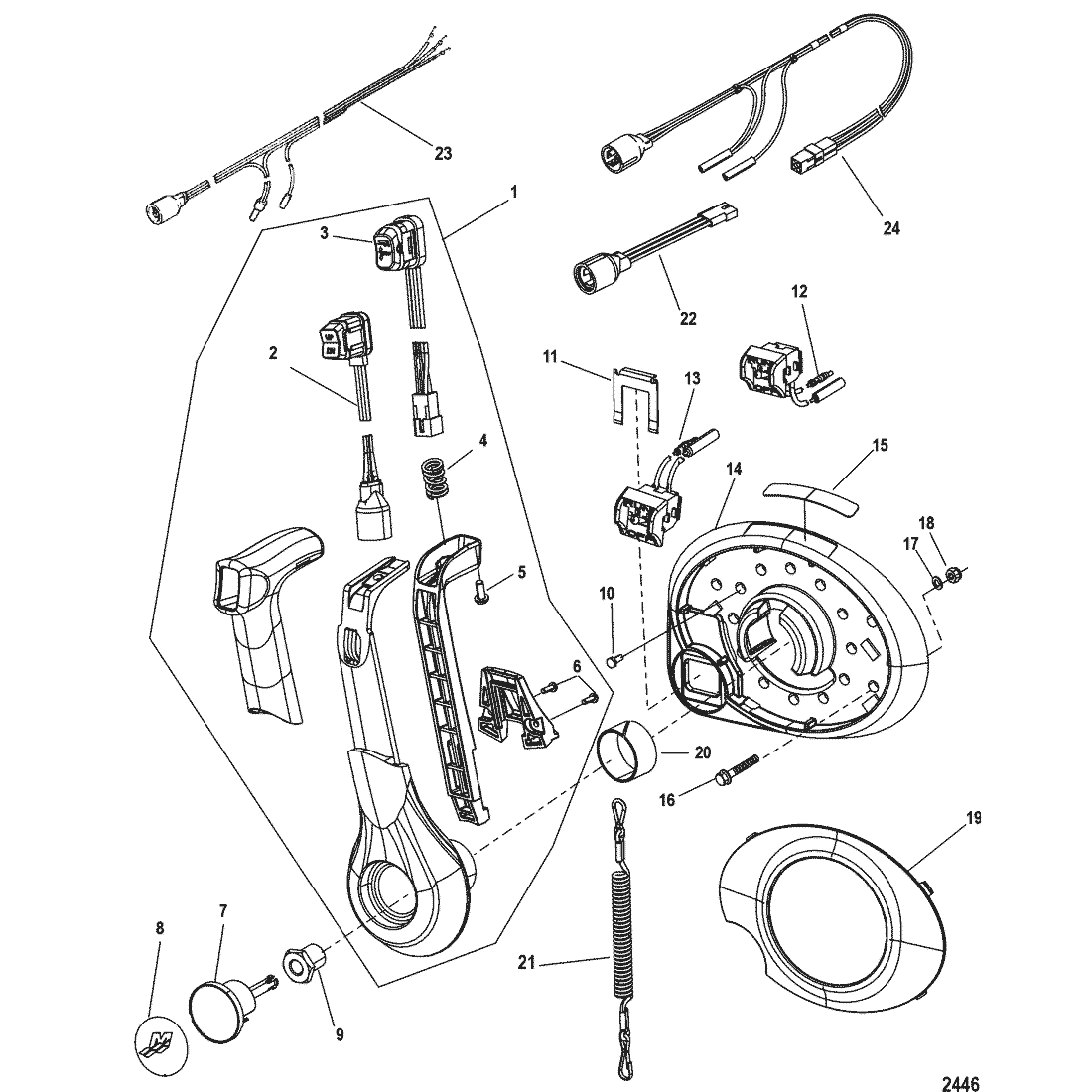

| - | 883710A01 | REMOTE CONTROL, (Non Trim) | ACT |
|
$459.47 | $414.23 | 1 | ||
| - | 883710A02 | REMOTE CONTROL | ACT |
|
$528.03 | $465.40 | 1 | ||
| - | 883710A03 | REMOTE CONTROL | ACT |
|
$553.89 | $488.23 | 1 | ||
| - | 883710A04 | REMOTE CONTROL, (Non Trim) | NLA |
|
$0.00 | $0.00 | 1 | ||
| - | 8M0099936 | REMOTE CONTROL, Outboard with MC Trim Handle | NLA |
|
$0.00 | $0.00 | 1 | ||
| 1 | 898971T01 | --HANDLE ASSEMBLY, Outboard Trim | 891902T01 | SS |
|
$113.05 | $101.90 | 1 | |
| 1 | 898971T01 | --HANDLE ASSEMBLY, Outboard Trim | ACT | $113.05 | $101.90 | 1 | |||
| 1 | 898971T02 | --HANDLE ASSEMBLY, MCM Trim | 891902T02 | SS |
|
$113.05 | $101.90 | 1 | |
| 1 | 898971T02 | --HANDLE ASSEMBLY, MCM Trim | ACT |
|
$113.05 | $101.90 | 1 | ||
| 1 | 898971T03 | --HANDLE ASSEMBLY, Non Trim | NLA |
|
$0.00 | $0.00 | 1 | ||
| 1 | 898971T03 | --HANDLE ASSEMBLY, Non Trim | 891902T03 | SS |
|
$0.00 | $0.00 | 1 | |
| 2 | 859032T02 | ----SWITCH /HARNESS ASSEMBLY | ACT |
|
$42.01 | $41.26 | 1 | ||
| 3 | 858679T1 | ----SWITCH/HARNESS ASSEMBLY | ACT |
|
$95.49 | $89.86 | 1 | ||
| 4 | 16924 | ----SPRING, Handle | ACT | $1.58 | $1.55 | 1 | |||
| 5 | 87775510 | ----SCREW, (M4 x 10) | ACT | $4.59 | $4.49 | 1 | |||
| 6 | 897481 | ----SCREW, (#6-32 x .375) | NLA |
|
$0.00 | $0.00 | 2 | ||
| 7 | 891645A01 | --BUTTON ASSEMBLY, Throttle Only | ACT |
|
$9.79 | $9.56 | 1 | ||
| 8 | 891656 | ----EMBLEM, Mercury | ACT | $8.69 | $8.49 | 1 | |||
| 9 | 8222131 | --BOLT, Locking Special | ACT | $6.06 | $5.95 | 1 | |||
| 10 | 19923062 | --SCREW, (.250-20 x .625) | ACT | $4.69 | $4.59 | 3 | |||
| 11 | 8M0032846 | --RETAINER, Brass | 120441 | SS |
|
$4.61 | $4.52 | 1 | |
| 12 | 133982 | --SWITCH ASSEMBLY, Stop | ACT |
|
$67.17 | $63.26 | 1 | ||
| 13 | 133983 | --SWITCH ASSEMBLY, Stop, Stop | ACT |
|
$67.17 | $63.26 | 1 | ||
| 14 | 891647T | --BEZEL | ACT | $30.85 | $30.31 | 1 | |||
| 15 | 891905001 | --DECAL, F-N-R | ACT |
|
$1.40 | $1.37 | 1 | ||
| 15 | 891905002 | --DECAL, R-N-F | ACT |
|
$28.72 | $28.20 | AR | ||
| 16 | 859031 | --SCREW, (.250-20 x 1.50) | ACT | $1.80 | $1.76 | 3 | |||
| 17 | 859664 | --WASHER | ACT | $1.80 | $1.76 | 3 | |||
| 18 | 8267088 | --NUT, (.250-20) | ACT | $1.70 | $1.66 | 3 | |||
| 19 | 891648T | --COVER, Dark Gray | ACT | $3.26 | $3.19 | 1 | |||
| 19 | 891648001 | --COVER, Woodgrain | NLA |
|
$0.00 | $0.00 | Opt | ||
| 19 | 891648002 | --COVER, Burlwood Gold Woodgrain | NLA |
|
$0.00 | $0.00 | Opt | ||
| 20 | 859016 | --BUSHING | ACT | $8.69 | $8.49 | 1 | |||
| 21 | 15920Q54 | --LANYARD ASSEMBLY | NLA |
|
$0.00 | $0.00 | 1 | ||
| 22 | 824783A11 | --HARNESS ASSEMBLY, Trim Switch | ACT |
|
$19.96 | $19.59 | 1 | ||
| 23 | 8M0087765 | --DECAL, Lanyard, White | ACT | $3.06 | $3.00 | 1 | |||
| 24 | 817659A1 | HARNESS ASSEMBLY, Trim - 16 Foot | ACT |
|
$31.46 | $30.92 | 1 | ||
| 25 | 881125A1 | HARNESS ASSEMBLY, Trim - 24 Foot | ACT |
|
$40.83 | $40.08 | 1 | ||
| NS | 892547A01 | INDICATOR TOOL, Shift Load | NLA |
|
$0.00 | $0.00 | 1 |
