| Ref # | Current Part Nbr |
Description | Superceded From |
Status | Notes | List Price |
Online Price |
Quan Used |
Order Quan |
|---|---|---|---|---|---|---|---|---|---|

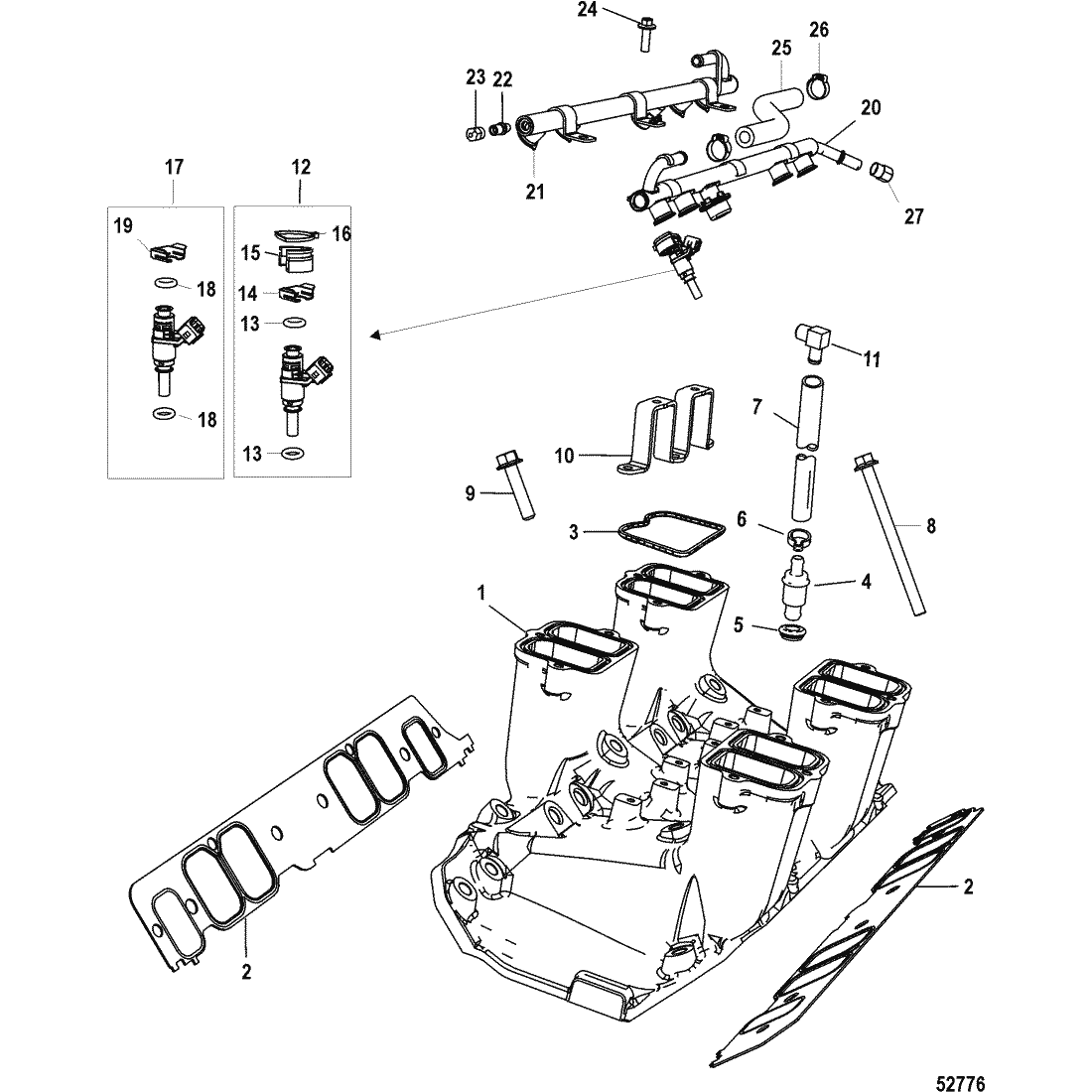

| 1 | 8M0045256 | MANIFOLD ASSEMBLY, Intake | ACT |
|
$1,291.99 | $1,157.12 | 1 | ||
| 2 | 805403A1 | --GASKET SET | ACT | $112.99 | $101.57 | 1 | |||
| 3 | 8M0044310 | --SEAL, Intake Manifold | ACT | $7.39 | $7.22 | 4 | |||
| 4 | 8M0099429 | VALVE ASSEMBLY, Crankcase Vent | 848578 | SS |
|
$31.09 | $30.53 | 1 | |
| 5 | 811553 | GROMMET | ACT | $83.49 | $78.40 | 1 | |||
| 6 | 848764 | CLAMP, (21 mm) | ACT | $3.99 | $3.91 | 1 | |||
| 7 | 8M0042521 | HOSE, PCV Valve to Plenum | ACT | $12.49 | $12.19 | 1 | |||
| 8 | 8M2017579 | SCREW, (.375-16 x 5.25), Intake Manifold to Head | ACT | $13.09 | $12.78 | 4 | |||
| 9 | 8M0046395 | SCREW, (.375-16 x 1.75) | ACT | $6.99 | $6.83 | 12 | |||
| 10 | 8M0043145 | BRACKET, Wire Harness | ACT | $21.59 | $21.20 | 2 | |||
| 11 | 687271 | FITTING, (.250-18) 90 Degree - Brass | ACT | $31.99 | $31.34 | 1 | |||
| 12 | 8M0081415 | INJECTOR KIT, Fuel, Design-I | 8M0082332 | SS |
|
$362.49 | $326.65 | 8 | |
| 13 | 879150A09 | --SEAL KIT | ACT |
|
$207.99 | $187.44 | 2 | ||
| 14 | 8M0045267 | --RETAINER KIT, Design-I | ACT |
|
$41.49 | $40.67 | 2 | ||
| 15 | 8M0050100 | --CLIP, Fuel Injector, Secondary | ACT |
|
$17.89 | $17.46 | 8 | ||
| 16 | 8M0064024 | --CABLE TIE, Design-I | 8M0050294 | NLA |
|
$1.20 | $1.18 | 8 | |
| 17 | 8M0081412 | INJECTOR KIT, Fuel, Design-II | 8M0082333 | SS |
|
$291.99 | $263.24 | 8 | |
| 18 | 879150A09 | --SEAL KIT | ACT |
|
$207.99 | $187.44 | 1 | ||
| 19 | 8M2001570 | --CLIP, Design-II | ACT |
|
$17.69 | $17.26 | 8 | ||
| 20 | 8M0081416 | FUEL RAIL, Port | 8M0044743 | SS |
|
$403.49 | $363.76 | 1 | |
| 20 | 8M0134249 | FUEL RAIL, Port,Includes Injector Clips | 8M0081453 | SS |
|
$404.49 | $364.51 | 1 | |
| 21 | 8M0081417 | FUEL RAIL, Starboard | 8M0044754 | SS |
|
$403.49 | $363.76 | 1 | |
| 21 | 8M0134250 | FUEL RAIL, Starboard,Includes Injector Clips | 8M0081452 | SS |
|
$404.49 | $364.51 | 1 | |
| 22 | 8M0044726 | VALVE ASSEMBLY | ACT | $50.49 | $47.50 | 1 | |||
| 23 | 8M0046566 | CAP, Shrader Valve - Brass | 805515 | NLA |
|
$4.69 | $4.59 | 1 | |
| 24 | 8M0103805 | SCREW, (M6 x 16 MM) Stainless Steel, Fuel Rail to Intake Manifold | 88552516 | SS |
|
$2.49 | $2.43 | 6 | |
| 25 | 8M0098781 | HOSE, Balance | 8M0044724 | SS |
|
$349.99 | $315.53 | 1 | |
| 26 | 8M0046568 | CLAMP, (20.5 mm) | ACT | $2.59 | $2.53 | 2 | |||
| 27 | 8M0046566 | CAP, Service Point | ACT | $4.69 | $4.59 | 1 |
