| Ref # | Current Part Nbr |
Description | Superceded From |
Status | Notes | List Price |
Online Price |
Quan Used |
Order Quan |
|---|---|---|---|---|---|---|---|---|---|

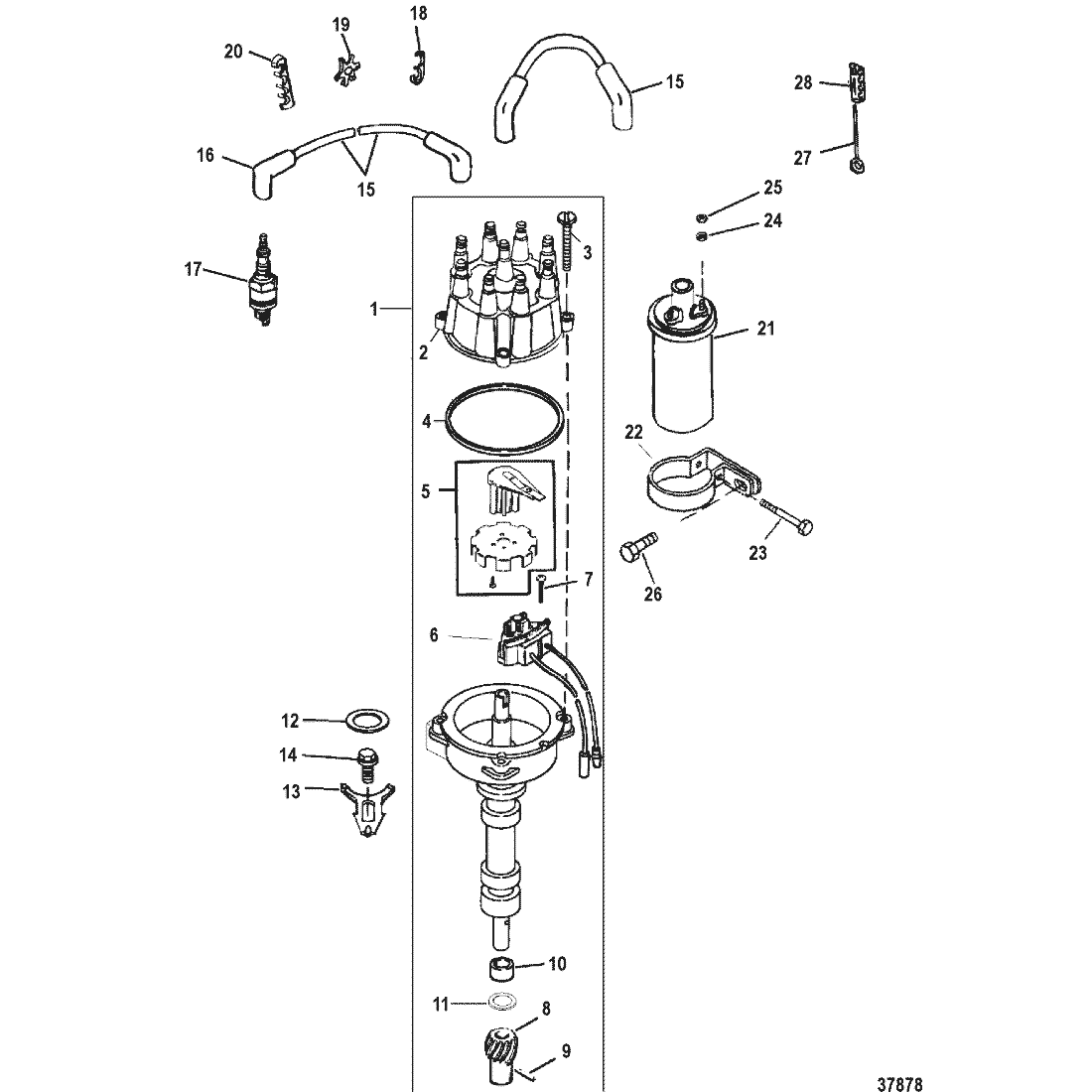

| 1 | 805185A36 | DISTRIBUTOR ASSEMBLY | 805185A26 | SS |
|
$481.49 | $460.04 | 1 | |
| 2 | 805759T1 | --CAP ASSEMBLY | 805759A2 | SS |
|
$65.49 | $62.92 | 1 | |
| 3 | 90926 | --SCREW, (#10-32 x .810) | ACT | $1.00 | $0.98 | 4 | |||
| 4 | 805760 | --GASKET | ACT | $5.39 | $5.27 | 1 | |||
| 5 | 13524T1 | --WHEEL ASSEMBLY | 13524A1 | SS |
|
$18.59 | $18.14 | 1 | |
| 6 | 892150Q02 | --SENSOR ASSEMBLY | 91019A6 | SS |
|
$111.49 | $104.93 | 1 | |
| 7 | 66686 | --SCREW, (#10-32 x 1.00) | ACT | $1.80 | $1.76 | 1 | |||
| 7 | 72202 | --SCREW, (#10-32 x 1.25) | ACT | $3.39 | $3.30 | 1 | |||
| 8 | 8M0115498 | --GEAR | 818807 | SS |
|
$89.99 | $86.33 | 1 | |
| 9 | 47617 | --PIN | ACT | $3.19 | $3.11 | 1 | |||
| 10 | 90915 | --BUSHING | ACT | $9.89 | $9.66 | 2 | |||
| 11 | 90931 | --THRUST WASHER | ACT | $1.00 | $0.98 | 1 | |||
| 12 | 344863 | GASKET | ACT | $2.69 | $2.62 | 1 | |||
| 13 | 88731 | CLAMP | 52185 | SS |
|
$9.99 | $9.76 | 1 | |
| 14 | 806681 | SCREW, (.375-16 x .875) | ACT | $7.39 | $7.22 | 1 | |||
| 15 | 816608Q61 | CABLE KIT, Ignition (Spark Plugs & Coil) | 816608A61 | SS |
|
$103.99 | $97.63 | 1 | |
| 16 | 63709A1 | --BOOT/TERMINAL KIT | ACT | $8.19 | $8.00 | 8 | |||
| 17 | 8M0204752 | SPARK PLUG | 59571 | SS |
|
$8.29 | $8.10 | 8 | |
| 18 | 54676 | RETAINER, Two Wire | ACT | $5.19 | $5.08 | 2 | |||
| 19 | 32783 | RETAINER, Three Wire | ACT | $4.09 | $4.00 | 2 | |||
| 20 | 32784 | RETAINER, Four Wire | NLA |
|
$0.00 | $0.00 | 2 | ||
| 21 | 8M0079202 | COIL KIT, Ignition | 805570A2 | SS |
|
$127.49 | $119.84 | 1 | |
| 22 | 65970T1 | --BRACKET, Coil | ACT | $17.89 | $17.46 | 1 | |||
| 23 | 41408 | --SCREW, (#10-32 x 1.50) | ACT | $3.39 | $3.30 | 1 | |||
| 24 | 26996 | --LOCKWASHER, (#10) Stainless Steel | ACT | $1.20 | $1.18 | 2 | |||
| 25 | 68219 | --NUT, (#10-32) Stainless Steel | ACT | $2.99 | $2.92 | 2 | |||
| 26 | 92913 | SCREW, (.437-14 x .750) | ACT | $15.49 | $15.12 | 1 | |||
| 27 | 90096A1 | STUD ASSEMBLY, (#10-32 x Special) | ACT |
|
$15.59 | $15.22 | 2 | ||
| 28 | 72821 | --RETAINER | ACT | $5.49 | $5.37 | 2 | |||
| - | 850470A96 | GASKET SET, Overhaul | ACT |
|
$1,076.49 | $986.85 | 1 | ||
| - | 850465A96 | GASKET SET, Overhaul | NLA |
|
$0.00 | $0.00 | 1 |
