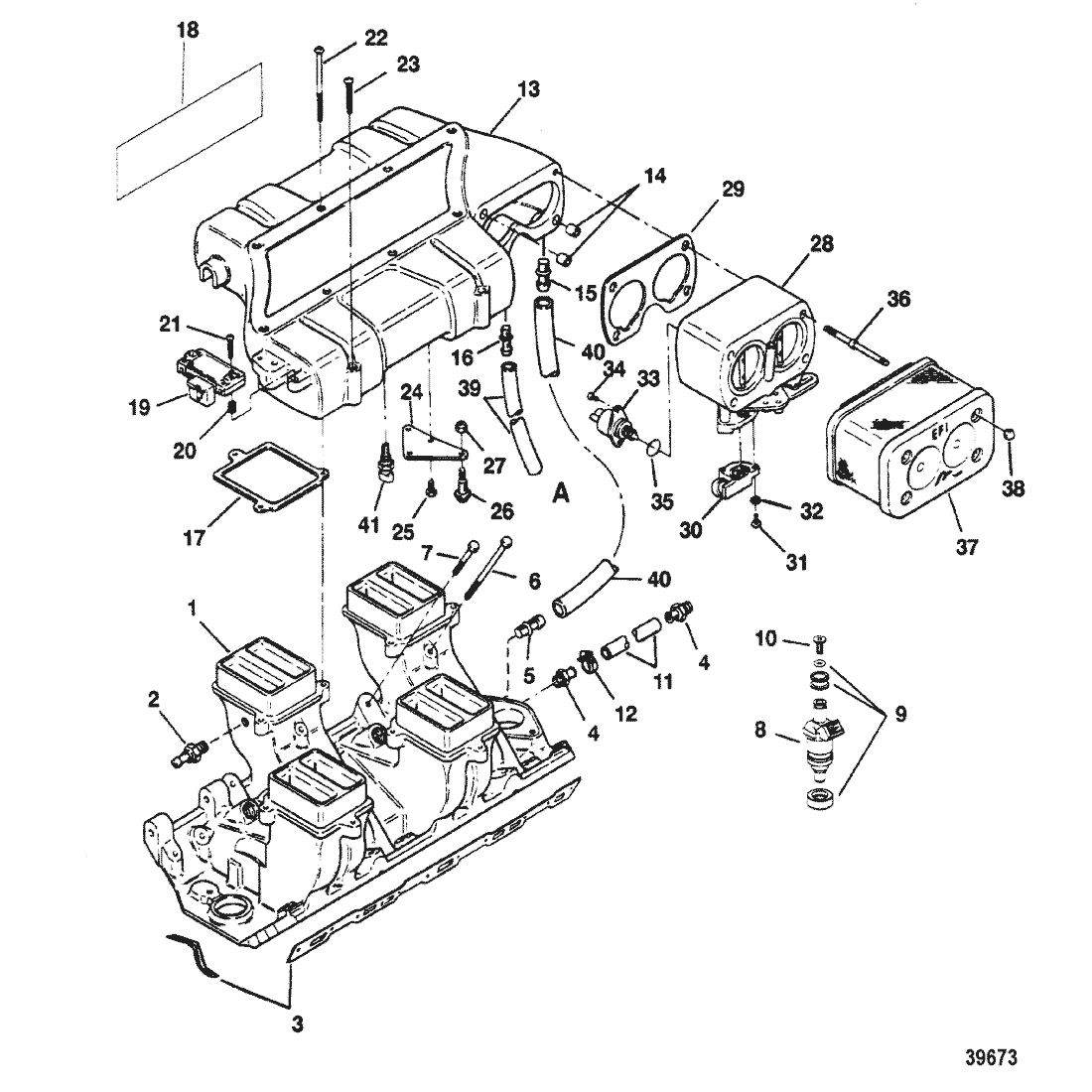

- A = TO FUEL PRESSURE REGULATOR
| Ref # | Current Part Nbr |
Description | Superceded From |
Status | Notes | List Price |
Online Price |
Quan Used |
Order Quan |
|---|---|---|---|---|---|---|---|---|---|
| 1 | 805233A6 | MANIFOLD ASSEMBLY, Intake | SS |
 |
$0.00 | $0.00 | 1 | ||
| 2 | 805691 | --FITTING, (.250) Barb | ACT | $24.00 | $23.57 | 1 | |||
| 3 | 805403A1 | --GASKET SET | ACT |
|
$108.33 | $102.02 | 1 | ||
| 4 | 806242 | --CONNECTOR | ACT | $70.50 | $67.81 | 2 | |||
| 5 | 805519 | --FITTING, Barb (.250 Inch) | SS |
|
$0.00 | $0.00 | 1 | ||
| 6 | 807640 | SCREW, (.375-16 x 5.5) (5-1/2 IN.) | SS |
|
$0.00 | $0.00 | 4 | ||
| 7 | 807641 | SCREW, (.375-16 x 1.75) (1-1/2 IN.) | ACT | $8.50 | $8.29 | 12 | |||
| 8 | 805225A1 | INJECTOR ASSEMBLY, Fuel | ACT |
|
$306.75 | $288.87 | 8 | ||
| 9 | 805511A1 | --SEALING KIT, Fuel Injector | ACT |
|
$23.33 | $22.92 | 8 | ||
| 10 | 17422 | --FILTER | ACT | $30.50 | $29.95 | 8 | |||
| 11 | 8059871 | HOSE, Water Pump To Intake Manifold | ACT | $21.25 | $20.87 | 1 | |||
| 12 | 8M0204717 | CLAMP, Worm Gear | ACT | $6.60 | $6.44 | 2 | |||
| 13 | 805240A1 | PLENUM ASSEMBLY, Intake | SS |
|
$0.00 | $0.00 | 1 | ||
| 14 | 52698 | --SLEEVE | SS |
|
$0.00 | $0.00 | 2 | ||
| 15 | 805519 | --FITTING, Barb (.250 Inch) | SS |
|
$0.00 | $0.00 | 1 | ||
| 16 | 805598 | --FITTING, (.1875) Barb | ACT | $11.60 | $11.32 | 1 | |||
| 17 | 805522A1 | --GASKET SET | ACT |
|
$53.33 | $51.30 | 1 | ||
| 18 | 8238166 | --DECAL | SS |
|
$0.00 | $0.00 | 1 | ||
| 18 | 8238165 | --DECAL | SS |
|
$0.00 | $0.00 | 1 | ||
| 19 | 864856A1 | SENSOR ASSEMBLY | 805217A1 | SS/ACT |
|
$271.83 | $255.99 | 1 | |
| 20 | 881733 | --SEAL | 805412 | SS/ACT |
|
$20.17 | $19.81 | 1 | |
| 21 | 805393 | --SCREW | SS |
|
$0.00 | $0.00 | 2 | ||
| 22 | 805391 | SCREW, (.312-18 x 4.500) | ACT | $11.80 | $11.51 | 8 | |||
| 23 | 805390 | SCREW, (.312-18 x 2.250) | ACT | $8.50 | $8.29 | 4 | |||
| 24 | 805413T | BRACKET, Throttle Cable | SS |
|
$0.00 | $0.00 | 1 | ||
| 25 | 73286 | SCREW, (.250-20 x .500) Stainless Steel | ACT | $1.70 | $1.66 | 3 | |||
| 26 | 96430 | SHOULDER SCREW | ACT | $3.55 | $3.47 | 1 | |||
| 27 | 8M0207776 | NUT, (.250-20) Stainless Steel | 814101 | SS/ACT |
|
$6.80 | $6.64 | 1 | |
| 28 | 805243A12 | THROTTLE BODY ASSEMBLY | SS |
|
$0.00 | $0.00 | 1 | ||
| 29 | 805396 | --GASKET, Throttle Body | ACT |
|
$22.56 | $21.98 | 1 | ||
| 30 | 805226A1 | --SENSOR ASSEMBLY, TPS | ACT |
|
$110.75 | $104.30 | 1 | ||
| 31 | 805400 | ----SCREW, (#8-32 x .500) Stainless Steel | ACT | $1.60 | $1.57 | 2 | |||
| 32 | 28001 | ----WASHER, (.188 x .438 x .049) | SS |
|
$0.00 | $0.00 | 2 | ||
| 33 | 805224A1 | --MOTOR ASSEMBLY, IAC | ACT |
|
$157.58 | $148.40 | 1 | ||
| 34 | 805400 | ----SCREW, (#8-32 x .500) Stainless Steel | ACT | $1.60 | $1.57 | 2 | |||
| 35 | 808547 | ----O-RING | ACT | $1.60 | $1.57 | 1 | |||
| 36 | 805399 | STUD | SS |
|
$0.00 | $0.00 | 4 | ||
| 37 | 807656A2 | FLAME ARRESTOR | 805401A2 | SS/ACT |
|
$252.00 | $237.31 | 1 | |
| 38 | 805402 | NUT, Acorn | SS |
|
$0.00 | $0.00 | 4 | ||
| 39 | 8M0063567 | HOSE | 80617333 | SS/ACT |
|
$36.25 | $35.60 | 1 | |
| 40 | 7381567 | TUBING, (42.00 Inches Bulk) | ACT | $29.75 | $29.22 | 1 | |||
| 41 | 805223T | SENSOR | ACT | $138.50 | $130.43 | 1 | |||
| - | 811572A94 | GASKET SET, Overhaul | SS |
|
$0.00 | $0.00 | 1 | ||
| - | 805396A92 | GASKET SET, Overhaul | SS |
|
$0.00 | $0.00 | 1 |
