| Ref # | Current Part Nbr |
Description | Superceded From |
Status | Notes | List Price |
Online Price |
Quan Used |
Order Quan |
|---|---|---|---|---|---|---|---|---|---|

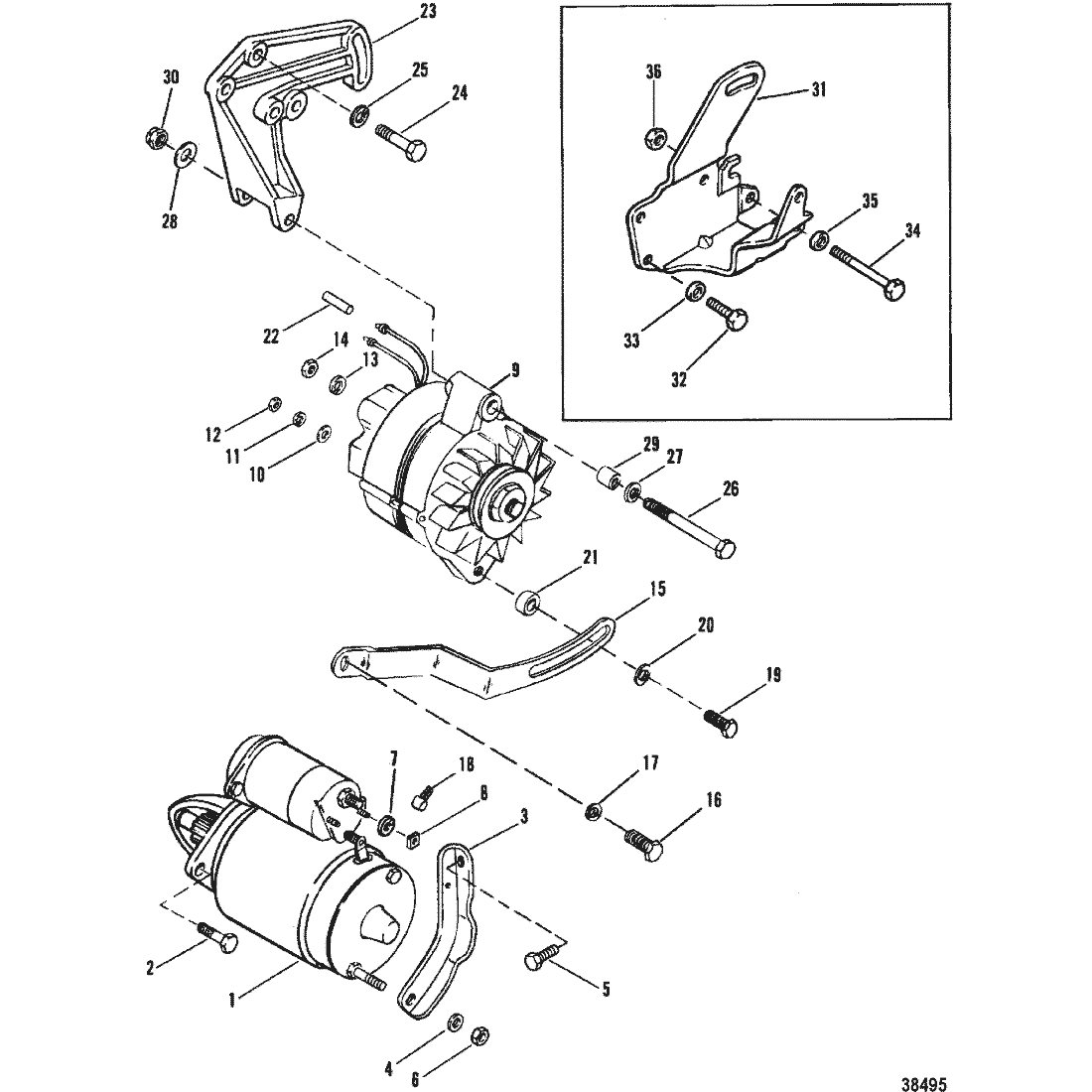

| 1 | 863007A1 | STARTER MOTOR ASSEMBLY | 12177A2 | SS |
|
$316.99 | $285.40 | 1 | |
| 2 | 94435001 | BOLT, (.375-16 x 4.600) | 94435 | SS |
|
$0.00 | $0.00 | 2 | |
| 3 | 12404 | BRACE | NLA |
|
$0.00 | $0.00 | 1 | ||
| 4 | 8M0204649 | WASHER, (.281 x .500 x .060) Stainless Steel | 29245 | SS |
|
$1.20 | $1.18 | 2 | |
| 5 | 35765A1 | SCREW AND LOCKWASHER, (.312-18 x .625) | ACT |
|
$1.50 | $1.47 | 1 | ||
| 1 | 863007A1 | STARTER MOTOR ASSEMBLY, 3-1/4 Diameter End Cap | 812604A2 | SS |
|
$316.99 | $285.40 | 1 | |
| 2 | 8053432 | SCREW, (.375-16 x 4.33) | ACT |
|
$17.09 | $16.68 | 2 | ||
| 6 | 15874 | NUT, (M10) | ACT |
|
$2.79 | $2.72 | 1 | ||
| 6 | 8267088 | NUT, (.250-20) | 72008 | SS |
|
$1.70 | $1.66 | 1 | |
| 7 | 26996 | LOCKWASHER, (#10) Stainless Steel | ACT |
|
$1.20 | $1.18 | 1 | ||
| 8 | 26419 | NUT, (#8-32) Brass | ACT |
|
$1.70 | $1.66 | 1 | ||
| 8 | 400211 | NUT, (M5) Stainless Steel | ACT |
|
$3.59 | $3.50 | 1 | ||
| 1 | 863007A1 | STARTER MOTOR ASSEMBLY | 806964A3 | SS |
|
$316.99 | $285.40 | 1 | |
| 2 | 8053432 | SCREW, (.375-16 x 4.33) | ACT |
|
$17.09 | $16.68 | 2 | ||
| 6 | 806949 | NUT, (M8-1.5) | ACT |
|
$3.79 | $3.69 | 1 | ||
| 8 | 400211 | NUT, (M5) Stainless Steel | ACT |
|
$3.59 | $3.50 | 1 | ||
| 9 | 817119A4 | ALTERNATOR ASSEMBLY, (55 Ampere) | 92497A3 | SS |
|
$351.49 | $316.51 | 1 | |
| 10 | 96457 | WASHER, Phenolic (.27 x .81 x .062) | ACT |
|
$1.70 | $1.66 | 1 | ||
| 11 | 26996 | LOCKWASHER, (#10) Stainless Steel | ACT |
|
$1.20 | $1.18 | 1 | ||
| 12 | 79989 | NUT, (#10-24) Stainless Steel | ACT |
|
$2.79 | $2.72 | 1 | ||
| 13 | 21272 | LOCKWASHER, (.250) | ACT |
|
$1.10 | $1.08 | 1 | ||
| 14 | 64015 | NUT, (.250-20) | ACT |
|
$2.79 | $2.72 | 1 | ||
| 9 | 817119A4 | ALTERNATOR | ACT |
|
$351.49 | $316.51 | 1 | ||
| 10 | 96457 | WASHER, Phenolic (.27 x .81 x .062) | ACT |
|
$1.70 | $1.66 | 1 | ||
| 11 | 26996 | LOCKWASHER, (#10) Stainless Steel | ACT |
|
$1.20 | $1.18 | 1 | ||
| 12 | 79989 | NUT, (#10-24) Stainless Steel | ACT |
|
$2.79 | $2.72 | 1 | ||
| 13 | 8M0204649 | WASHER, (.281 x .500 x .060) Stainless Steel | 29245 | SS |
|
$1.20 | $1.18 | 1 | |
| 14 | 94330 | NUT, (.250-20) Brass | ACT |
|
$1.70 | $1.66 | 1 | ||
| 15 | 85013T | BRACE | ACT | $68.49 | $64.43 | 1 | |||
| 16 | 98261 | SCREW, (.375-16 x .750) | ACT |
|
$1.20 | $1.18 | 1 | ||
| 16 | 26487 | SCREW, (.375-16 x 1.12) | NLA |
|
$0.00 | $0.00 | 1 | ||
| 17 | 35048 | LOCKWASHER, (.375) | ACT |
|
$1.20 | $1.18 | 1 | ||
| 18 | 79695T | BOOT, Insulator - Black | 79695 | SS |
|
$5.49 | $5.37 | 1 | |
| 19 | 29198 | SCREW AND LOCKWASHER, (.312-18 x .875) | ACT | $4.59 | $4.49 | 1 | |||
| 20 | 26168 | WASHER | ACT | $1.70 | $1.66 | 1 | |||
| 21 | 52095 | SPACER | NLA |
|
$0.00 | $0.00 | 1 | ||
| 22 | 5790811 | SLEEVE, (10.00 Inches Bulk) | ACT | $16.39 | $16.00 | 2 | |||
| 23 | 87115A1 | BRACKET | NLA |
|
$0.00 | $0.00 | 1 | ||
| 24 | 37612 | SCREW, (.375-16 x 1.250) | ACT |
|
$2.49 | $2.43 | 2 | ||
| 24 | 34354 | SCREW, (.375-16 x 1.50) | ACT |
|
$2.39 | $2.33 | 1 | ||
| 25 | 35048 | LOCKWASHER, (.375) | ACT |
|
$1.20 | $1.18 | 3 | ||
| 26 | 48308 | SCREW, (.375-24 x 3.750) | ACT |
|
$4.49 | $4.39 | 1 | ||
| 27 | 20553 | WASHER, (.406 x .734 x .063) | ACT |
|
$1.50 | $1.47 | 1 | ||
| 28 | 34714 | WASHER | ACT |
|
$2.39 | $2.33 | 1 | ||
| 29 | 33186 | BUSHING | ACT |
|
$24.79 | $24.31 | 1 | ||
| 30 | 23161 | NUT, (.375-24) | ACT |
|
$2.89 | $2.82 | 1 | ||
| 31 | 15083T | BRACKET | NLA |
|
$0.00 | $0.00 | 1 | ||
| 32 | 37612 | SCREW, (.375-16 x 1.250) | ACT |
|
$2.49 | $2.43 | 2 | ||
| 33 | 20553 | WASHER, (.406 x .734 x .063) | ACT |
|
$1.50 | $1.47 | 2 | ||
| 32 | 34353 | SCREW, (.375-16 x 1.00) | ACT |
|
$2.59 | $2.53 | 1 | ||
| 33 | 20553 | WASHER, (.406 x .734 x .063) | ACT |
|
$1.50 | $1.47 | 1 | ||
| 32 | 48424 | SCREW, (.375-16 x 1.620) | ACT |
|
$2.99 | $2.92 | 1 | ||
| 33 | 35048 | LOCKWASHER, (.375) | ACT |
|
$1.20 | $1.18 | 1 | ||
| 34 | 56743 | SCREW, (.375-24 x 3.125) | ACT |
|
$7.09 | $6.93 | 1 | ||
| 35 | 34714 | WASHER | ACT |
|
$2.39 | $2.33 | 1 | ||
| 36 | 23161 | NUT, (.375-24) | ACT |
|
$2.89 | $2.82 | 1 |
