| Ref # | Current Part Nbr |
Description | Superceded From |
Status | Notes | List Price |
Online Price |
Quan Used |
Order Quan |
|---|---|---|---|---|---|---|---|---|---|

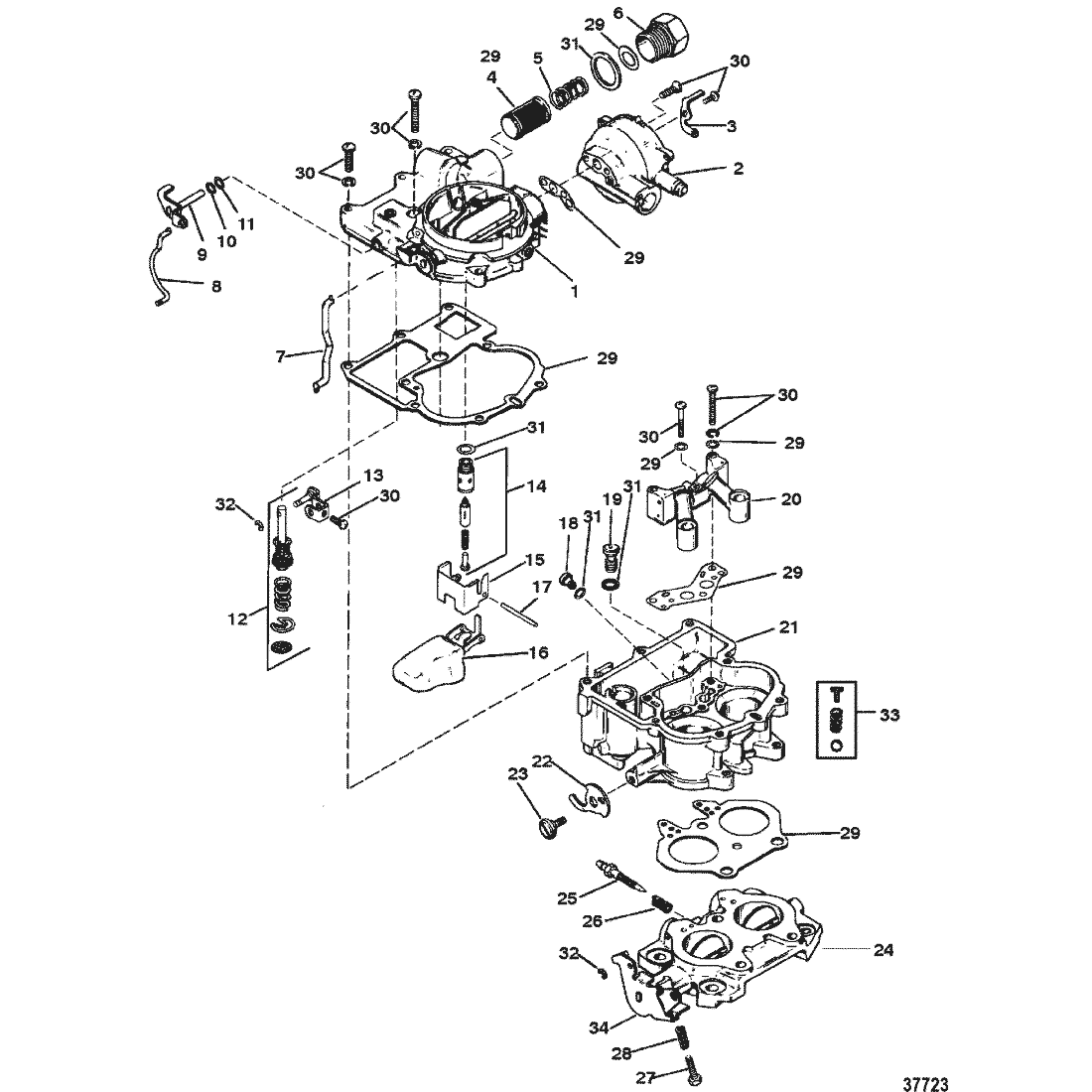

| - | 807312A1 | CARBURETOR ASSEMBLY | ACT |
|
$1,015.49 | $930.67 | 1 | ||
| 1 | NSS | --NOT SOLD SEPARATE, AIR HORN |
|
$0.00 | $0.00 | 1 | |||
| 2 | NSS | --NOT SOLD SEPARATE, CHOKE HOUSING |
|
$0.00 | $0.00 | 1 | |||
| 3 | 9037 | --ARM, Choke | NLA |
|
$0.00 | $0.00 | 1 | ||
| 4 | 53336Q | --STRAINER | 53336 | SS |
|
$10.39 | $10.15 | 1 | |
| 5 | 9032 | --SPRING | ACT | $7.89 | $7.71 | 1 | |||
| 6 | 90341 | --CONNECTOR | NLA |
|
$0.00 | $0.00 | 1 | ||
| 7 | 9042 | --ROD, Choke | NLA |
|
$0.00 | $0.00 | 1 | ||
| 8 | 8109201 | --ROD | ACT | $7.79 | $7.61 | 1 | |||
| 9 | 8237251 | --LEVER | NLA |
|
$0.00 | $0.00 | 1 | ||
| 10 | 9039 | --WASHER | NLA |
|
$0.00 | $0.00 | 2 | ||
| 11 | 810919 | --WASHER | NLA |
|
$0.00 | $0.00 | 1 | ||
| 12 | 96551 | --PUMP KIT, Accelerator | ACT | $119.99 | $112.70 | 1 | |||
| 13 | 810916 | --ARM | ACT | $13.09 | $12.78 | 1 | |||
| 14 | 804689 | --SEAT KIT, Inlet | 9029 | SS |
|
$56.99 | $54.73 | 1 | |
| 15 | 803854 | --PLATE, Baffle | 90381 | SS |
|
$7.39 | $7.22 | 1 | |
| 16 | 9031 | --FLOAT | ACT | $30.99 | $30.36 | 1 | |||
| 17 | 90301 | --PIN, Float | ACT | $5.89 | $5.76 | 1 | |||
| 18 | 9058 | --JET, Main | ACT | $16.79 | $16.45 | 2 | |||
| 19 | 9059 | --JET POWER | ACT | $22.49 | $22.02 | 1 | |||
| 21 | NSS | --NOT SOLD SEPARATE, CARBURETOR BODY |
|
$0.00 | $0.00 | 1 | |||
| 22 | 9048 | --CAM | ACT | $12.39 | $12.10 | 1 | |||
| 23 | 9049 | --SHAFT | ACT | $4.59 | $4.49 | 1 | |||
| 24 | NSS | --NOT SOLD SEPARATE, FLANGE ASSEMBLY |
|
$0.00 | $0.00 | 1 | |||
| 25 | 9052 | --SCREW | ACT | $30.49 | $29.95 | 1 | |||
| 26 | 9053 | --SPRING | NLA |
|
$6.66 | $6.50 | 1 | ||
| 27 | 9060 | --SCREW | NLA |
|
$7.98 | $7.79 | 1 | ||
| 28 | 9054 | --SPRING | NLA |
|
$0.00 | $0.00 | 1 | ||
| 29 | 810929004 | --GASKET SET | 90611 | SS |
|
$72.99 | $69.90 | 1 | |
| 30 | 8109301 | --SCREW KIT | NLA |
|
$0.00 | $0.00 | 1 | ||
| 31 | 9044 | --PACKING SET | 90441 | SS |
|
$10.69 | $10.44 | 1 | |
| 32 | 808675 | ----CLIP, Spring | ACT | $1.80 | $1.76 | 2 | |||
| 33 | 809520 | --CHECK BALL KIT | ACT | $15.99 | $15.61 | 1 | |||
| 34 | 834989 | --LEVER/SHAFT ASSEMBLY, Throttle | NLA |
|
$0.00 | $0.00 | 1 |
