| Ref # | Current Part Nbr |
Description | Superceded From |
Status | Notes | List Price |
Online Price |
Quan Used |
Order Quan |
|---|---|---|---|---|---|---|---|---|---|

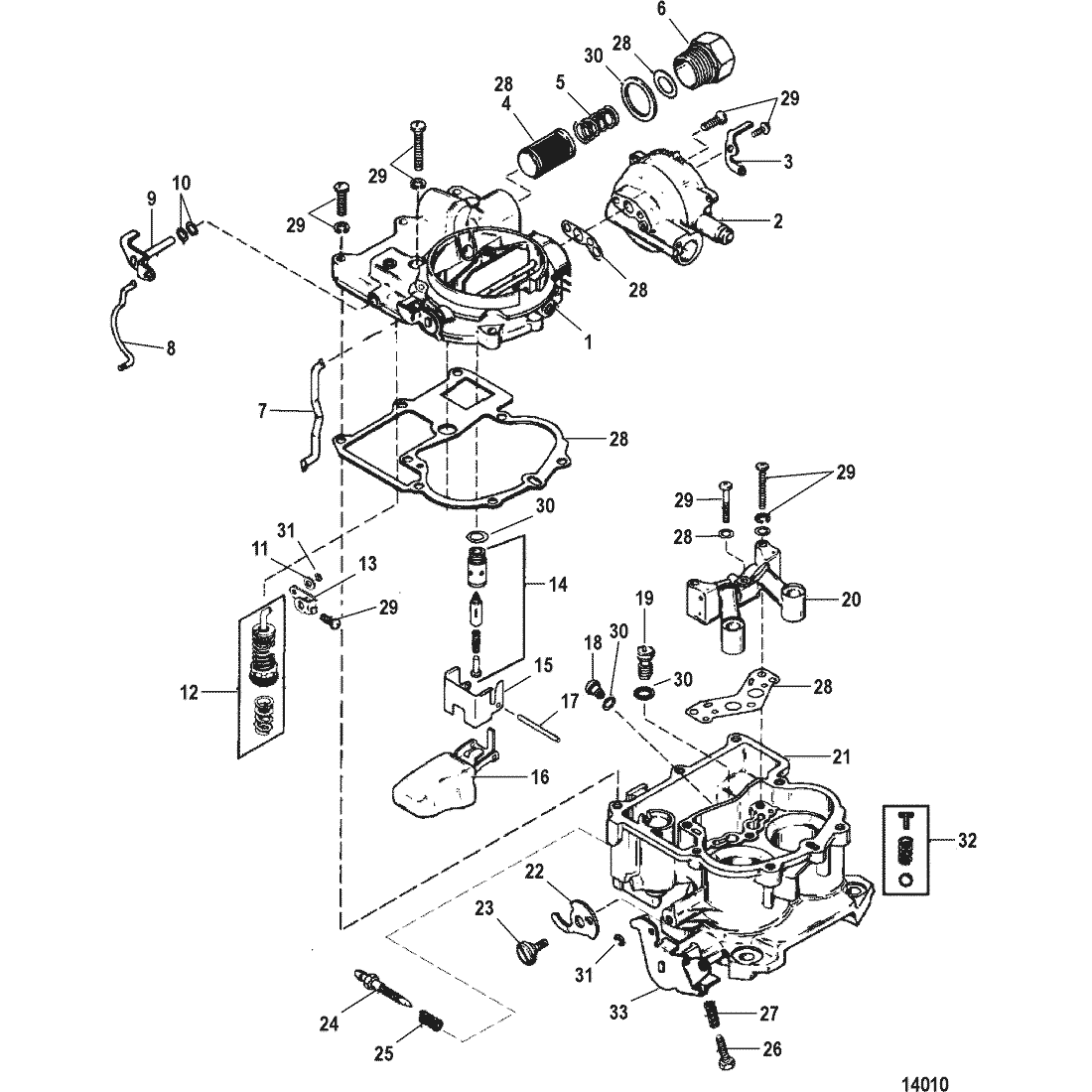

| - | 864942A01 | CARBURETOR ASSEMBLY | 861448A1 | SS/ACT |
 |
$1,033.79 | $947.70 | 1 | |
| - | 864943A01 | CARBURETOR ASSEMBLY | 861245A1 | SS/ACT |
|
$880.29 | $828.18 | 1 | |
| 1 | NSS | --NOT SOLD SEPARATE, Air Housing |
|
$0.00 | $0.00 | 1 | |||
| 2 | NSS | --NOT SOLD SEPARATE, Housing - Choke |
|
$0.00 | $0.00 | 1 | |||
| 3 | 9037 | --ARM, Choke | SS |
|
$0.00 | $0.00 | 1 | ||
| 4 | 53336Q | --STRAINER | ACT | $10.00 | $9.76 | 1 | |||
| 5 | 9032 | --SPRING | ACT | $7.60 | $7.42 | 1 | |||
| 6 | 90341 | --CONNECTOR | SS |
|
$0.00 | $0.00 | 1 | ||
| 7 | 9042 | --ROD, Choke | SS |
|
$0.00 | $0.00 | 1 | ||
| 8 | 8109201 | --ROD | ACT | $7.50 | $7.32 | 1 | |||
| 9 | 8237251 | --LEVER | SS |
|
$0.00 | $0.00 | 1 | ||
| 10 | 9039 | --WASHER | SS |
|
$0.00 | $0.00 | 2 | ||
| 11 | 810919 | --WASHER | ACT | $2.70 | $2.64 | 1 | |||
| 12 | 96551 | --PUMP KIT, Accelerator | ACT | $115.08 | $108.38 | 1 | |||
| 13 | 810916 | --ARM | ACT | $12.60 | $12.29 | 1 | |||
| 14 | 804689 | --SEAT KIT, Inlet | ACT | $51.92 | $49.94 | 1 | |||
| 15 | 803854 | --PLATE, Baffle | ACT | $7.10 | $6.93 | 1 | |||
| 16 | 9031 | --FLOAT | ACT | $24.75 | $24.31 | 1 | |||
| 17 | 90301 | --PIN, Float | ACT | $5.70 | $5.56 | 1 | |||
| 18 | 9058 | --JET, Main | ACT | $19.30 | $18.82 | 2 | |||
| 19 | 9059 | --JET POWER | ACT | $21.58 | $21.20 | 1 | |||
| 20 | 802744T | --VENTURI | SS |
|
$0.00 | $0.00 | 1 | ||
| 20 | 802745T | --VENTURI | ACT |
|
$339.42 | $319.63 | 1 | ||
| 21 | NSS | --NOT SOLD SEPARATE, Body - Carburator |
|
$0.00 | $0.00 | 1 | |||
| 22 | 9048 | --CAM | ACT | $11.90 | $11.61 | 1 | |||
| 23 | 9049 | --SHAFT | ACT | $4.40 | $4.30 | 1 | |||
| 24 | 9052 | --SCREW | ACT | $29.33 | $28.81 | 1 | |||
| 25 | 9053 | --SPRING | ACT | $5.78 | $5.64 | 1 | |||
| 26 | 9060 | --SCREW | ACT | $6.93 | $6.77 | 1 | |||
| 27 | 9054 | --SPRING | SS |
|
$0.00 | $0.00 | 1 | ||
| 28 | 810929004 | --GASKET SET | 8109292 | SS/ACT |
|
$69.83 | $67.17 | 1 | |
| 29 | 8109301 | --SCREW KIT | SS |
|
$0.00 | $0.00 | 1 | ||
| 30 | 9044 | --PACKING SET | 90441 | SS/ACT |
|
$10.30 | $10.05 | 1 | |
| 31 | 808675 | ----CLIP, Spring | ACT | $1.70 | $1.66 | 2 | |||
| 32 | 809520 | --CHECK BALL KIT | ACT | $15.40 | $15.02 | 1 | |||
| 33 | 834989 | --LEVER/SHAFT ASSEMBLY, Throttle | SS |
|
$0.00 | $0.00 | 1 |
