| Ref # | Current Part Nbr |
Description | Superceded From |
Status | Notes | List Price |
Online Price |
Quan Used |
Order Quan |
|---|---|---|---|---|---|---|---|---|---|

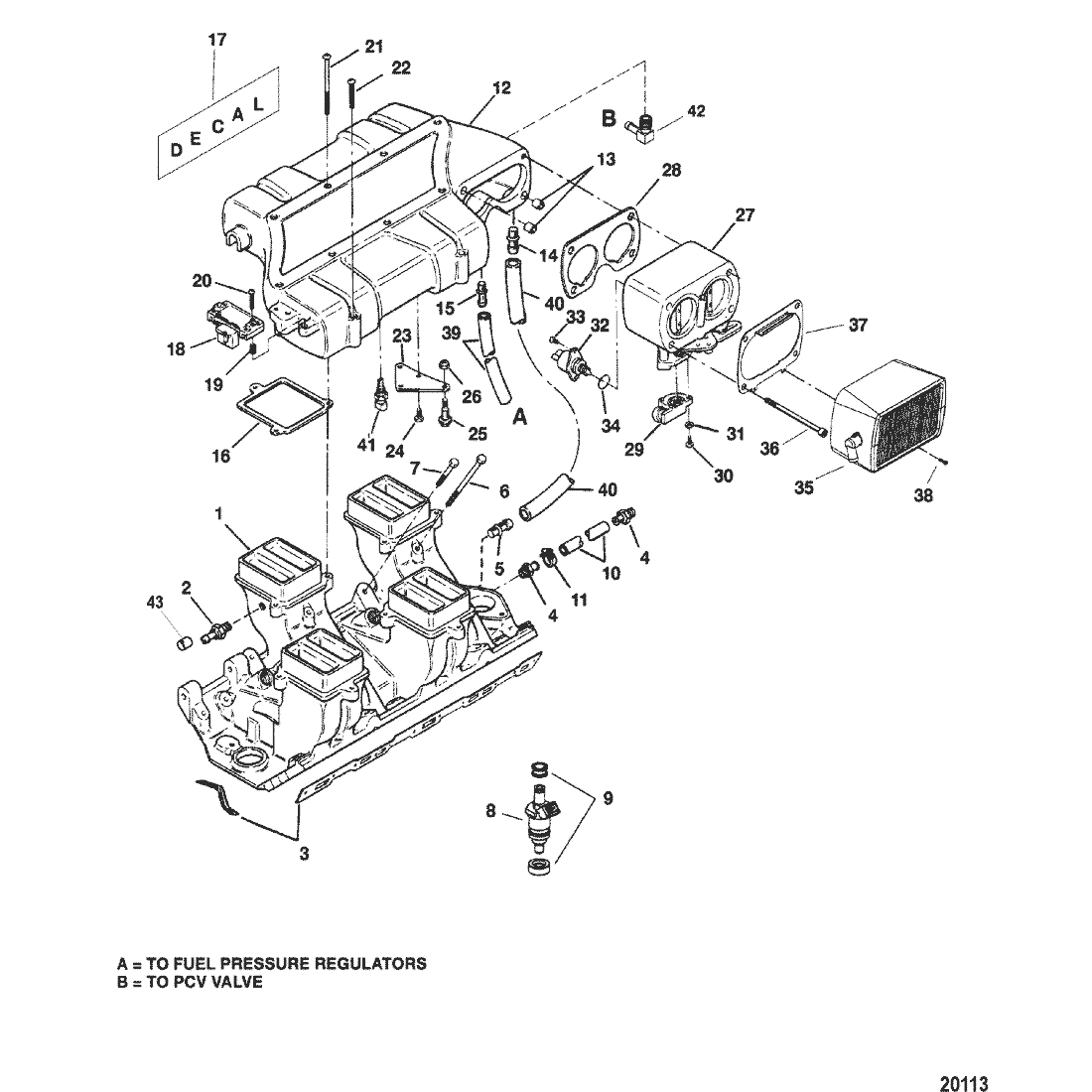

| 1 | 861300A2 | MANIFOLD ASSEMBLY, Intake | NLA |
|
$0.00 | $0.00 | 1 | ||
| 2 | 805691 | --FITTING, (.250) Barb | ACT | $24.99 | $24.55 | 1 | |||
| 3 | 805403A1 | --GASKET SET | ACT | $112.99 | $101.57 | 1 | |||
| 4 | 806242 | --CONNECTOR | ACT | $73.49 | $69.06 | 2 | |||
| 5 | 805519 | --FITTING, Barb (.250 Inch) | NLA |
|
$0.00 | $0.00 | 1 | ||
| 6 | 43749 | SCREW, (.375-16 x 5.750) | ACT | $5.89 | $5.76 | 4 | |||
| 7 | 862020 | SCREW (3/8-16 X 2 IN.) | ACT | $4.59 | $4.49 | 12 | |||
| 8 | 861260T | INJECTOR, Fuel | ACT |
|
$225.99 | $203.74 | 8 | ||
| 9 | 851889 | --O-RING | ACT | $14.49 | $14.14 | 16 | |||
| 10 | 8059871 | HOSE, Water Pump To Intake Manifold | ACT | $22.09 | $21.69 | 1 | |||
| 11 | 815504212 | CLAMP, Worm Gear | ACT | $5.89 | $5.76 | 2 | |||
| 12 | 805240A1 | PLENUM ASSEMBLY, Intake | NLA |
|
$0.00 | $0.00 | 1 | ||
| 13 | 52698 | --SLEEVE | NLA |
|
$0.00 | $0.00 | 2 | ||
| 14 | 805519 | --FITTING, Barb (.250 Inch) | NLA |
|
$0.00 | $0.00 | 1 | ||
| 15 | 805598 | --FITTING, (.1875) Barb | ACT | $12.09 | $11.80 | 1 | |||
| 16 | 805522A1 | --GASKET SET | ACT | $55.49 | $52.27 | 1 | |||
| 17 | 86131415 | DECAL | NLA |
|
$0.00 | $0.00 | 1 | ||
| 17 | 86131433 | DECAL | NLA |
|
$0.00 | $0.00 | 1 | ||
| 18 | 864856A1 | SENSOR ASSEMBLY | 805217A1 | SS |
|
$299.99 | $270.38 | 1 | |
| 19 | 881733 | --SEAL | 805412 | SS |
|
$20.99 | $20.62 | 1 | |
| 20 | 807120 | SCREW, (#10-24 x 1.00) | NLA |
|
$0.00 | $0.00 | 2 | ||
| 21 | 805391 | SCREW, (.312-18 x 4.500) | ACT | $12.29 | $12.00 | 8 | |||
| 22 | 805390 | SCREW, (.312-18 x 2.250) | ACT | $8.79 | $8.59 | 4 | |||
| 23 | 805413T | BRACKET, Throttle Cable | NLA |
|
$0.00 | $0.00 | 1 | ||
| 24 | 73286 | SCREW, (.250-20 x .500) Stainless Steel | ACT | $1.80 | $1.76 | 3 | |||
| 25 | 96430 | SHOULDER SCREW | NLA |
|
$0.00 | $0.00 | 1 | ||
| 26 | 8M0207776 | NUT, (.250-20) Stainless Steel | 814101 | SS |
|
$7.09 | $6.93 | 1 | |
| 27 | 860204A5 | THROTTLE BODY ASSEMBLY | NLA |
|
$0.00 | $0.00 | 1 | ||
| 28 | 805396 | --GASKET, Throttle Body | ACT | $19.99 | $19.64 | 1 | |||
| 29 | 805226A1 | --SENSOR ASSEMBLY, TPS | ACT |
|
$115.49 | $103.83 | 1 | ||
| 30 | 805400 | ----SCREW, (#8-32 x .500) Stainless Steel | ACT | $1.70 | $1.66 | 2 | |||
| 31 | 28001 | ----WASHER, (.188 x .438 x .049) | NLA |
|
$0.00 | $0.00 | 2 | ||
| 32 | 805224A1 | --MOTOR ASSEMBLY, IAC | SS |
|
$0.00 | $0.00 | 1 | ||
| 33 | 805400 | ----SCREW, (#8-32 x .500) Stainless Steel | ACT | $1.70 | $1.66 | 2 | |||
| 34 | 808547 | ----O-RING | ACT | $1.70 | $1.66 | 1 | |||
| 35 | 807656A2 | FLAME ARRESTOR | ACT | $262.49 | $236.27 | 1 | |||
| 36 | 808040 | SCREW, (5/16-18 x 4.0) (5/16-18 X 4 IN.) | ACT | $9.29 | $9.07 | 4 | |||
| 37 | 807654T | BRACKET, Flame Arrestor | ACT | $28.09 | $27.58 | 1 | |||
| 38 | 808039 | SCREW, (#6-32) (#6-32) | ACT | $6.79 | $6.64 | 2 | |||
| 39 | 8M0063567 | HOSE, (52.00 Inches Bulk) | 80617379 | SS |
|
$37.99 | $37.20 | 2 | |
| 40 | 7381567 | TUBING, (42.00 Inches Bulk) | ACT | $30.99 | $30.36 | 1 | |||
| 41 | 805223T | SENSOR | ACT | $160.99 | $145.07 | 1 | |||
| 42 | 687271 | FITTING, (.250-18) 90 Degree - Brass (TO PCV VALVE) | ACT | $31.99 | $31.34 | 1 | |||
| 43 | 854310 | PLUG | 806899 | SS |
|
$4.59 | $4.49 | 1 | |
| - | 811572A94 | GASKET SET, Overhaul | NLA |
|
$0.00 | $0.00 | 1 | ||
| - | 805396A92 | GASKET SET, Overhaul | NLA |
|
$0.00 | $0.00 | 1 |
