| Ref # | Current Part Nbr |
Description | Superceded From |
Status | Notes | List Price |
Online Price |
Quan Used |
Order Quan |
|---|---|---|---|---|---|---|---|---|---|

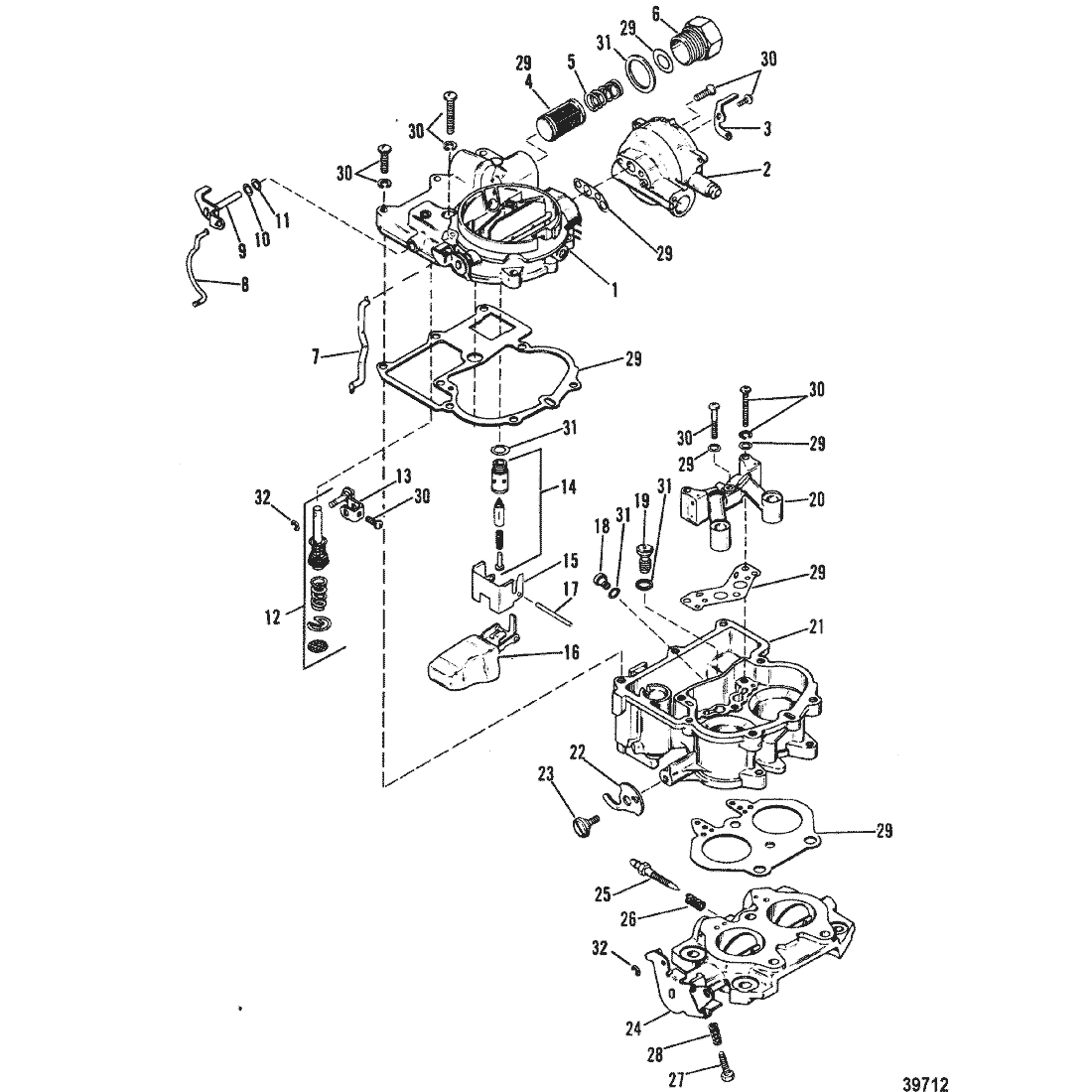

| - | 807764A1 | CARBURETOR | 9565A7 | SS |
|
$1,222.99 | $1,120.83 | 1 | |
| 3 | 9037 | --ARM, Choke | NLA |
|
$0.00 | $0.00 | 1 | ||
| 4 | 53336Q | --STRAINER | 9033 | SS |
|
$10.39 | $10.15 | 1 | |
| 5 | 9032 | --SPRING | ACT | $7.89 | $7.71 | 1 | |||
| 6 | 879194018 | --CONNECTOR | 9034 | SS |
|
$106.49 | $100.30 | 1 | |
| 7 | 9042 | --ROD, Choke | NLA |
|
$0.00 | $0.00 | 1 | ||
| 8 | 810920 | --ROD, Pump | 9041 | SS |
|
$0.00 | $0.00 | 1 | |
| 9 | 823725 | --LEVER | 9035 | SS |
|
$0.00 | $0.00 | 1 | |
| 10 | 9039 | --WASHER | NLA |
|
$0.00 | $0.00 | 1 | ||
| 11 | 810919 | --WASHER | 9040 | SS |
|
$0.00 | $0.00 | 1 | |
| 12 | 96551 | --PUMP KIT, Accelerator | 9655 | SS |
|
$119.99 | $112.70 | 1 | |
| 13 | 9036 | --ARM | NLA |
|
$0.00 | $0.00 | 1 | ||
| 14 | 9407 | --SEAT KIT, Inlet | ACT | $34.49 | $33.83 | 1 | |||
| 15 | 803854 | --PLATE, Baffle | 9038 | SS |
|
$7.39 | $7.22 | 1 | |
| 16 | 9031 | --FLOAT | ACT | $30.99 | $30.36 | 1 | |||
| 17 | 90301 | --PIN, Float | 9030 | SS |
|
$5.89 | $5.76 | 1 | |
| 18 | 810923 | --JET, Main | ACT | $25.99 | $25.53 | 1 | |||
| 19 | 9435 | --JET, Power | ACT | $19.49 | $19.07 | 1 | |||
| 20 | 9436 | --VENTURI | NLA |
|
$0.00 | $0.00 | 1 | ||
| 22 | 9048 | --CAM | ACT | $12.39 | $12.10 | 1 | |||
| 23 | 9049 | --SHAFT | ACT | $4.59 | $4.49 | 1 | |||
| 25 | 9052 | --SCREW | ACT | $30.49 | $29.95 | 1 | |||
| 26 | 9053 | --SPRING | NLA |
|
$6.66 | $6.50 | 1 | ||
| 27 | 9060 | --SCREW | NLA |
|
$7.98 | $7.79 | 1 | ||
| 28 | 9054 | --SPRING | NLA |
|
$0.00 | $0.00 | 1 | ||
| 29 | 810929004 | --GASKET SET | 9061 | SS |
|
$72.99 | $69.90 | 1 | |
| 30 | 810930 | --SCREW KIT | NLA |
|
$0.00 | $0.00 | 1 | ||
| 31 | 9044 | --PACKING SET | ACT |
|
$10.69 | $10.44 | 1 | ||
| 32 | 808675 | ----E-RING | 9658 | SS |
|
$1.80 | $1.76 | 2 | |
| - | 804845 | OVERHAUL KIT | 9437 | SS |
|
$93.49 | $89.85 | 1 |
