Ref # Current
Part Nbr		 Description Superceded
From		 Status Notes List
Price		 Online
Price		 Quan
Used		 Order
Quan

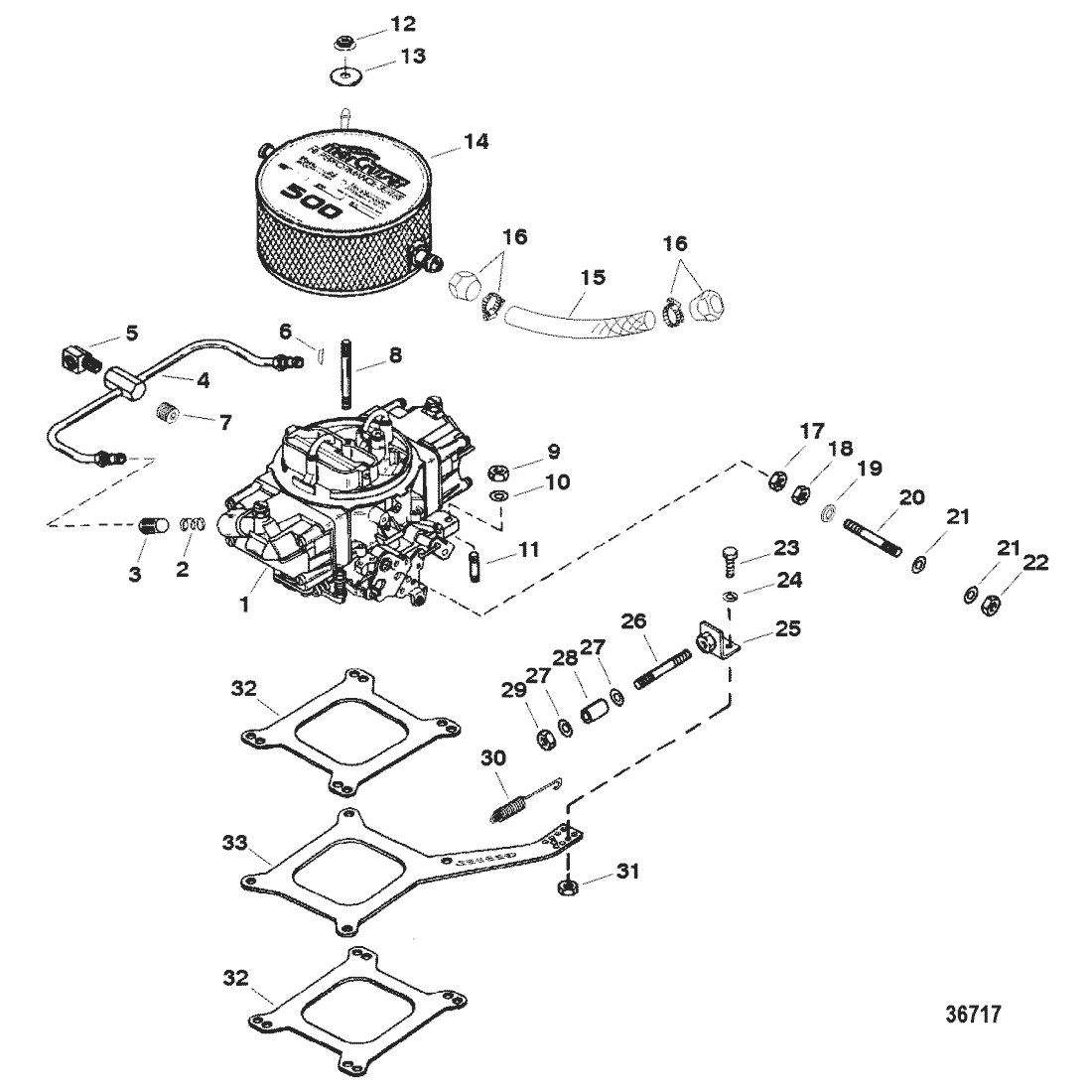

1 13549T21 CARBURETOR ASSEMBLY (Blue) NLA $0.00 $0.00 1
2 9032 --SPRING, Filter 48143 SS $7.89 $7.71 2
3 93568 --FILTER ACT $15.68 $15.47 2
4 8485911 --LINE ASSEMBLY, Fuel Inlet NLA $0.00 $0.00 1
5 93385 --FITTING, (90 Degree), Fuel Inlet Tube ACT $13.19 $12.88 1
6 848438 --GASKET, Flair (Copper) ACT $4.24 $4.19 2
NS 13220 --REBUILD KIT, Carburetor Overhaul ACT $265.85 $254.04 1
NS 42270A1 --GASKET SET, Carburetor NLA $0.00 $0.00 1
NS 848243 --POWERVALVE NLA $0.00 $0.00 1
NS 816827 --PUMP KIT, Accelerator NLA $0.00 $0.00 2
NS 42268 --CHOKE KIT, Electric NLA $0.00 $0.00 1
NS 848750 --VALVE, Umbrella NLA $0.00 $0.00 2
NS 848751 --BAFFLE, Vent NLA $0.00 $0.00 2
NS 848752 --O-RING NLA $0.00 $0.00 2
NS 848755 --DIAPHRAM, Accelerator Pump NLA $0.00 $0.00 2
NS 848749 --FLOAT, Carburetor NLA $0.00 $0.00 2
NS 848742A1 --GASKET SET, Float Adjust NLA $0.00 $0.00 2
NS 650875 --JET, Main NLA $0.00 $0.00 1
NS 650893 --JET, Main NLA $0.00 $0.00 1
NS 650889 --JET, Main NLA $0.00 $0.00 1
NS 650881 --JET, Main NLA $0.00 $0.00 1
7 47945 PLUG, Pipe NLA $1.94 $1.90 1
8 848176 STUD, (.250-20 x 4.310) ACT $24.49 $24.06 1
9 82670911 NUT, (.312-24) Stainless Steel 35814 SS $4.99 $4.88 4
10 848136 WASHER, (.328 x .680 x .190) ACT $24.79 $24.31 4
11 46857 STUD (.312 x 1.875) ACT $28.49 $27.91 4
12 35888 NUT, (.250-28) Stainless Steel ACT $6.89 $6.73 1
13 86400 WASHER ACT $1.70 $1.66 1
14 849706 ARRESTOR, Flame NLA $0.00 $0.00 1
15 821284A21 HOSE ASSEMBLY, Vent (8.750 Inches) NLA $0.00 $0.00 2
16 84763012 --COVER, Clamp End, Vent Hose NLA $0.00 $0.00 4
17 35888 NUT, (.250-28) Stainless Steel ACT $6.89 $6.73 1
18 69057 WASHER 28426 NLA $1.80 $1.76 1
19 818894 BUSHING, Throttle Cable Stud ACT $19.55 $19.27 1
20 8M0113178 STUD, (.250-28 x 2.00) 96112 SS $3.09 $3.01 1
21 846673 WASHER, (.265 x .500 x .060) Stainless Steel ACT $1.10 $1.08 2
22 35888 NUT, (.250-28) Stainless Steel ACT $6.89 $6.73 1
23 78291 SCREW, (.190-24 x .500) ACT $0.50 $0.49 2
24 26996 LOCKWASHER, (#10) Stainless Steel ACT $1.20 $1.18 2
25 15017 BRACKET, Throttle ACT $65.49 $63.00 1
26 728091 STUD, (.250-20/.250-28 x 1.620) 72809 SS $9.49 $9.27 1
27 69056 WASHER, (.255 x .625 x .0312) 21631 SS $1.80 $1.76 2
28 31866 SPACER, (.256 x .313 x .625), Cable Stud ACT $5.69 $5.56 1
29 826709109 NUT, (.250-28) 35045 SS $3.59 $3.50 1
30 897454 SPRING, Throttle Return 32817 SS $12.29 $12.00 1
31 79989 NUT, (#10-24) Stainless Steel ACT $2.79 $2.72 2
32 41610 GASKET, Spacer ACT $19.19 $18.73 2
33 940701 BRACKET, Throttle ACT $66.99 $64.40 1
- 818572A98 GASKET SET, Engine Overhaul NLA $0.00 $0.00 1
