| Ref # | Current Part Nbr |
Description | Superceded From |
Status | Notes | List Price |
Online Price |
Quan Used |
Order Quan |
|---|---|---|---|---|---|---|---|---|---|

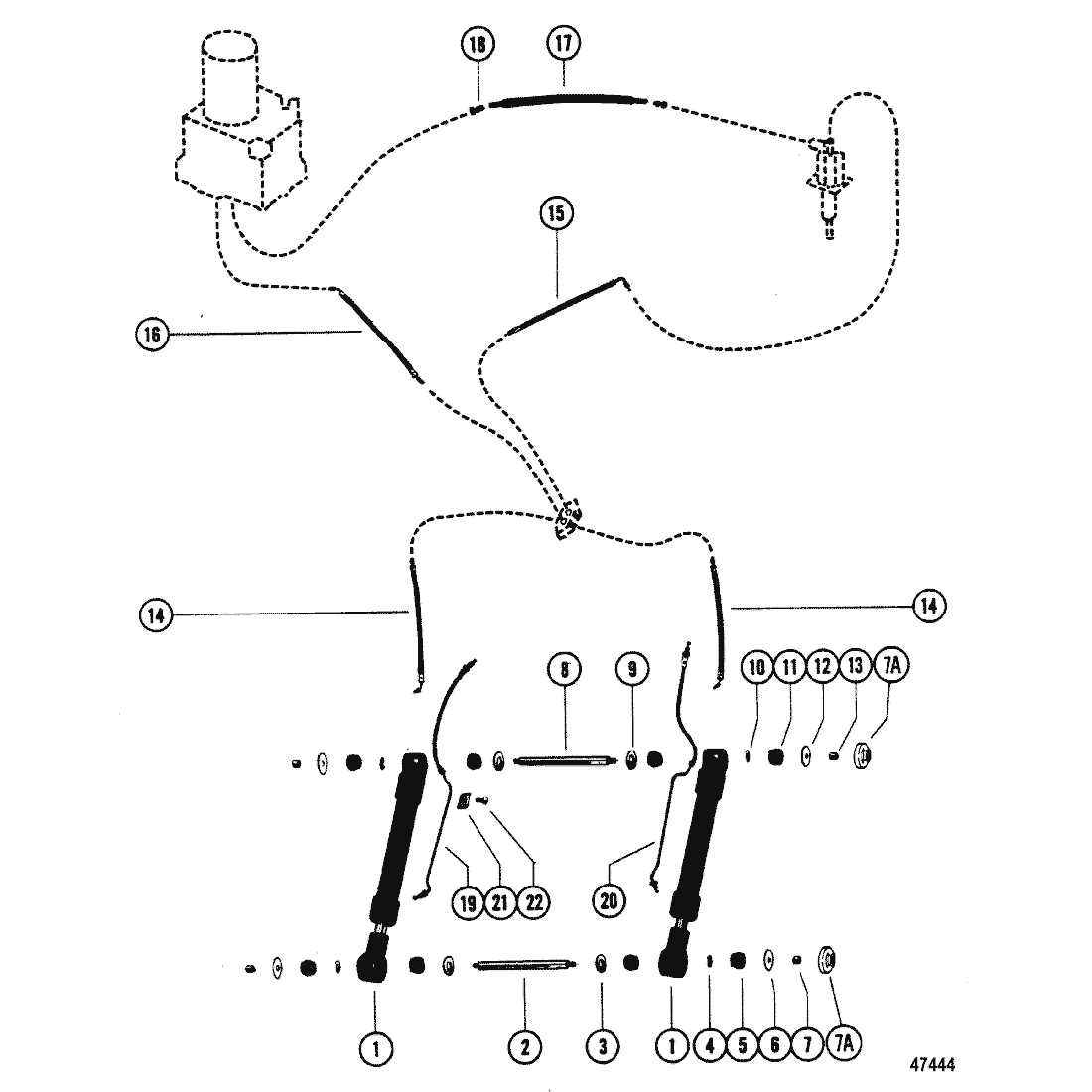

| -- | 87412A3 | TRIM CYLINDER ASS'Y, COMPLETE (STBD.) | ACT |
 |
$470.86 | $447.85 | 1 | ||
| 1 | 87411A3 | TRIM CYLINDER ASS'Y, COMPLETE (PORT) | NLA |
|
$0.00 | $0.00 | 1 | ||
| 2 | 14874A1 | PIN, REAR (1/2-20 THREADS) | 49279 | SS/ACT |
|
$175.12 | $161.39 | 1 | |
| 3 | 89664 | WASHER, (.920 x 1.750 x .060), ANCHOR PIN (1/2-20 THREADS) | ACT | $6.60 | $6.44 | 2 | |||
| 4 | 49593 | SPRING, ANCHOR PIN (1/2-20 THREADS) | ACT | $5.03 | $4.90 | 2 | |||
| 5 | 90203 | BUSHING, RUBBER (1/2-20 THREADS) | SS |
|
$0.00 | $0.00 | 4 | ||
| 6 | 89665 | WASHER, Stainless Steel, ANCHOR PIN (1/2-20 THREADS) | ACT | $7.00 | $6.83 | 2 | |||
| 7 | 35000 | NUT, (.500-20) Stainless Steel, ANCHOR PIN (1/2-20 THREADS) | ACT | $14.00 | $13.66 | 2 | |||
| 8 | 14875A1 | PIN, FRONT (1/2-20 THREADS) | SS |
|
$0.00 | $0.00 | 1 | ||
| 9 | 89664 | WASHER, (.920 x 1.750 x .060), ANCHOR PIN (1/2-20 THREADS) | ACT | $6.60 | $6.44 | 2 | |||
| 10 | 49593 | SPRING, ANCHOR PIN (1/2-20 THREADS) | ACT | $5.03 | $4.90 | 2 | |||
| 11 | 90203 | BUSHING, RUBBER (1/2-20 THREADS) | SS |
|
$0.00 | $0.00 | 4 | ||
| 12 | 89665 | WASHER, Stainless Steel, ANCHOR PIN (1/2-20 THREADS) | ACT | $7.00 | $6.83 | 2 | |||
| 13 | 35000 | NUT, (.500-20) Stainless Steel, ANCHOR PIN (1/2-20 THREADS) | ACT | $14.00 | $13.66 | 2 | |||
| 2 | 14874A1 | PIN ASSEMBLY, ANCHOR (REAR) (7/16-20 THREADS) | ACT |
|
$175.12 | $161.39 | 1 | ||
| 3 | 89664 | --WASHER, REAR ANCHOR PIN (7/16-20 THREADS) | 47395 | SS/ACT |
|
$6.60 | $6.44 | 2 | |
| 5 | 90203 | --BUSHING, RUBBER (7/16-20 THREADS) | SS |
|
$0.00 | $0.00 | 4 | ||
| 6 | 44163 | WASHER, (.450 x 1.75 x .12), REAR ANCHOR PIN (7/16-20 THREADS) | ACT |
|
$3.70 | $3.61 | 2 | ||
| 7 | 859116 | --NUT, (.4375-20), REAR ANCHOR PIN (7/16-20 THREADS) | 134391 | SS/ACT |
|
$4.90 | $4.78 | 2 | |
| 7A | 14842 | --CAP, REAR ANCHOR PIN (7/16-20 THREADS) | ACT | $3.50 | $3.42 | 2 | |||
| 8 | 14875A1 | PIN KIT, ANCHOR (FRONT) (7/16-20 THREADS) | SS |
|
$0.00 | $0.00 | 1 | ||
| 9 | 89664 | --WASHER, (.920 x 1.750 x .060), FRONT ANCHOR PIN (7/16-20 THREADS) | ACT | $6.60 | $6.44 | 2 | |||
| 11 | 90203 | --BUSHING, RUBBER (7/16-20 THREADS) | SS |
|
$0.00 | $0.00 | 4 | ||
| 12 | 44163 | --WASHER, (.450 x 1.75 x .12), FRONT ANCHOR PIN (7/16-20 THREADS) | ACT | $3.70 | $3.61 | 2 | |||
| 13 | 859116 | --NUT, (.4375-20), FRONT ANCHOR PIN (7/16-20 THREADS) | 134391 | SS/ACT |
|
$4.90 | $4.78 | 2 | |
| 7A | 14842 | --CAP, FRONT ANCHOR PIN 97/16-20 THREADS) | ACT | $3.50 | $3.42 | 2 | |||
| 14 | 86036Q | HOSE, CONNECTOR TO TRIM CYLINDER (12-1/2") | 86036 | SS/ACT |
|
$49.58 | $48.69 | 2 | |
| 15 | 63158A1 | HOSE, CONNECTOR TO VALVE (25")- PRESTOLITE PUMP | ACT | $86.67 | $83.36 | 1 | |||
| 16 | 63157A1 | HOSE, CONNECTOR PUMP (50-1/2") -PRESTOLITE PUMP | ACT | $104.42 | $98.33 | 1 | |||
| 15 | 97010A1 | HOSE, CONNECTOR TO VALVE (47-1/2") -OILDYNE PUMP | ACT | $137.20 | $126.45 | 1 | |||
| 16 | 97009A1 | HOSE, CONNECTOR TO PUMP (46")- OILDYNE PUMP | ACT | $0.00 | $0.00 | 1 | |||
| 17 | 8M0111655 | TUBING, PUMP TO REVERSE LOCK VALVE (40") | ACT/SS |
|
$0.00 | $0.00 | 1 | ||
| 18 | 49718 | NUT, COMPRESSION - HYDRAULIC TUBING | ACT | $4.00 | $3.91 | 2 | |||
| 19 | 87558 | HOSE, PORT CYLINDER | ACT | $116.58 | $109.79 | 1 | |||
| 20 | 87559 | HOSE, STARBOARD CYLINDER | ACT | $107.25 | $101.00 | 1 | |||
| 21 | 85060 | PLATE, CLAMPING - HYDRAULIC HOSE | ACT | $8.40 | $8.20 | 2 | |||
| 22 | 85486 | SCREW, (.250-20 x .380) Stainless Steel, CLAMPING PLATE | ACT | $1.70 | $1.66 | 4 |
