| Ref # | Current Part Nbr |
Description | Superceded From |
Status | Notes | List Price |
Online Price |
Quan Used |
Order Quan |
|---|---|---|---|---|---|---|---|---|---|

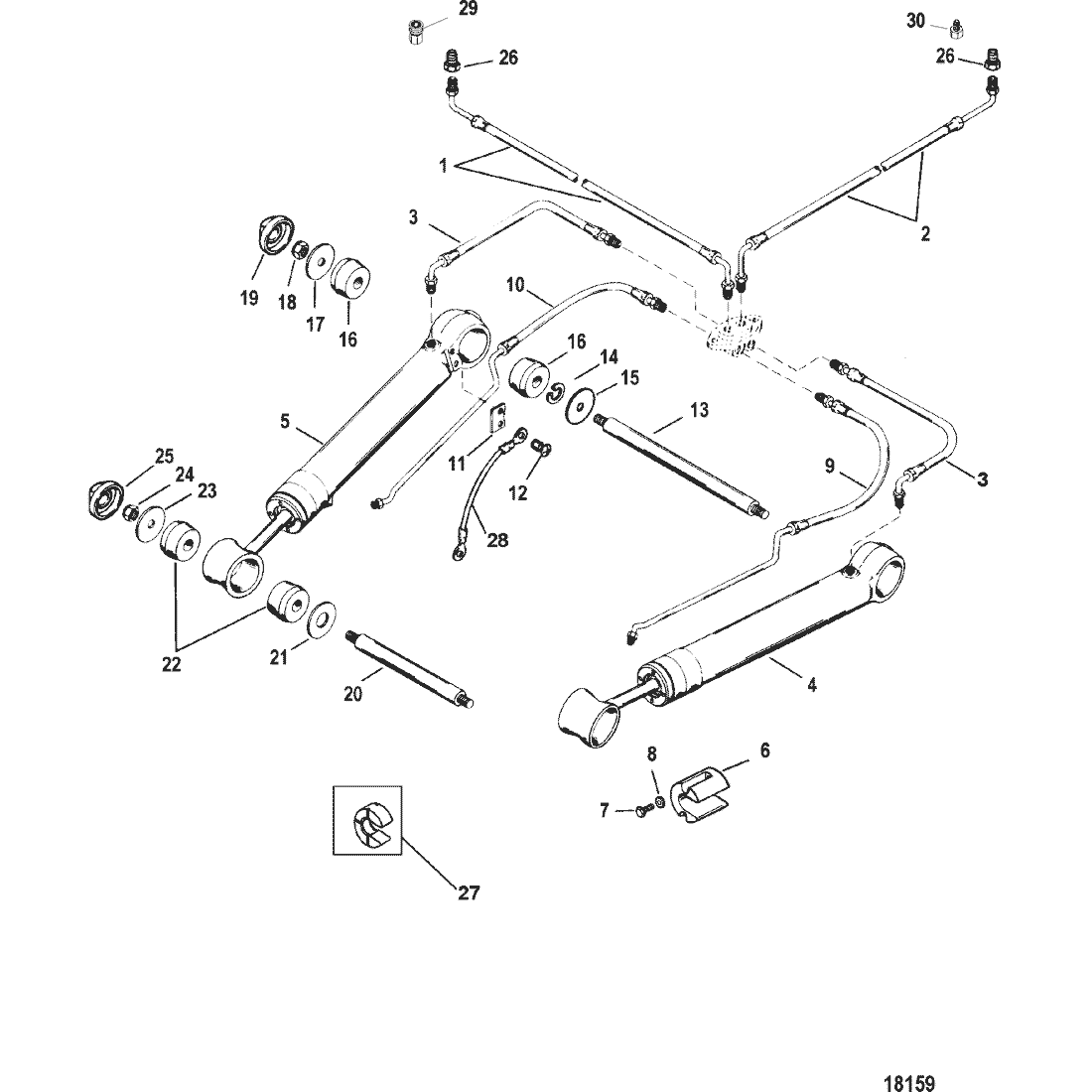

| 1 | 861127 | HOSE, Black, Hydraulic | ACT |
|
$94.49 | $89.00 | 1 | ||
| 1 | 865384001 | HOSE, Black, Hydraulic-With Quick Connect | ACT |
|
$138.49 | $124.49 | 1 | ||
| 2 | 861128 | HOSE, Gray, Hydraulic | ACT |
|
$96.49 | $90.49 | 1 | ||
| 2 | 865385001 | HOSE, Gray, Hydraulic-With Quick Connect | ACT |
|
$138.49 | $124.49 | 1 | ||
| 3 | 99904Q | HOSE, Hydraulic | 99904 | SS |
|
$65.49 | $61.61 | 2 | |
| 4 | 8M0132610 | TRIM CYLINDER ASSEMBLY, Starboard | 98704A26 | SS |
|
$689.99 | $628.26 | 1 | |
| 5 | 8M0132609 | TRIM CYLINDER ASSEMBLY, Port | 98703A26 | SS |
|
$693.49 | $631.19 | 1 | |
| NS | 87399A2 | --OVERHAUL KIT | ACT |
|
$241.99 | $218.02 | 2 | ||
| NS | 87400A2 | ----SEAL KIT | ACT | $39.99 | $39.20 | 2 | |||
| 6 | 806190Q1 | --ANODE ASSEMBLY | ACT |
|
$48.99 | $47.99 | 2 | ||
| 7 | 806290 | ----SCREW, (#10-32 x .625) | ACT | $1.20 | $1.18 | 4 | |||
| 8 | 69432 | ----LOCKWASHER, External (#10) | ACT | $1.00 | $0.98 | 4 | |||
| 9 | 864589 | HOSE, Trim Cylinder, Starboard | 99902 | SS |
|
$75.49 | $70.95 | 1 | |
| 10 | 864588 | HOSE, Trim Cylinder, Port | 99903 | SS |
|
$75.99 | $71.26 | 1 | |
| 11 | 85060 | PLATE | ACT | $8.69 | $8.49 | 2 | |||
| 12 | 85486 | SCREW, (.250-20 x .380) Stainless Steel | ACT | $1.80 | $1.76 | 4 | |||
| 13 | 44167A1 | PIN, Front | ACT |
|
$105.49 | $94.81 | 1 | ||
| 14 | 805272 | --RING, Retaining | ACT | $12.09 | $11.80 | 2 | |||
| 15 | 44164 | WASHER | ACT | $4.09 | $4.00 | 2 | |||
| 16 | 807073 | BUSHING | ACT | $10.99 | $10.73 | 4 | |||
| 17 | 44163 | WASHER, (.450 x 1.75 x .12) | ACT | $3.79 | $3.69 | 2 | |||
| 18 | 8M0204653 | NUT, (.437-20) Stainless Steel | 34933 | SS |
|
$5.29 | $5.17 | 2 | |
| 19 | 14842 | CAP | ACT | $3.59 | $3.50 | 2 | |||
| 20 | 44166 | PIN, Rear | ACT | $102.99 | $92.71 | 1 | |||
| 21 | 44164 | WASHER | ACT | $4.09 | $4.00 | 2 | |||
| 22 | 807073 | BUSHING | ACT | $10.99 | $10.73 | 4 | |||
| 23 | 44163 | WASHER, (.450 x 1.75 x .12) | ACT | $3.79 | $3.69 | 2 | |||
| 24 | 8M0204653 | NUT, (.437-20) Stainless Steel | 34933 | SS |
|
$5.29 | $5.17 | 2 | |
| 25 | 14842 | CAP | ACT | $3.59 | $3.50 | 2 | |||
| 26 | 808727 | CONNECTOR, (.50-20 UNF To .4375-24 Inverted Flare) (No Filter Screen) | ACT | $38.49 | $37.78 | 2 | |||
| 26 | 865590 | CONNECTOR, (.50 UNF To .25 Inverted Flare) (With Filter Screen) | ACT | $49.99 | $49.02 | 2 | |||
| 27 | 15768A3 | SPACER KIT, Trim Cylinder, Tilt Up | ACT |
|
$16.69 | $16.37 | AR | ||
| 28 | 8M0207768 | CABLE ASSEMBLY, Ground | 88238A13 | SS |
|
$14.09 | $13.75 | 2 | |
| 29 | 865410001 | FITTING, Female Quick Connect | ACT |
|
$18.89 | $18.50 | 1 | ||
| 30 | 865411001 | FITTING, Male Quick Connect | ACT |
|
$19.09 | $18.74 | 1 |
