| Ref # | Current Part Nbr |
Description | Superceded From |
Status | Notes | List Price |
Online Price |
Quan Used |
Order Quan |
|---|---|---|---|---|---|---|---|---|---|

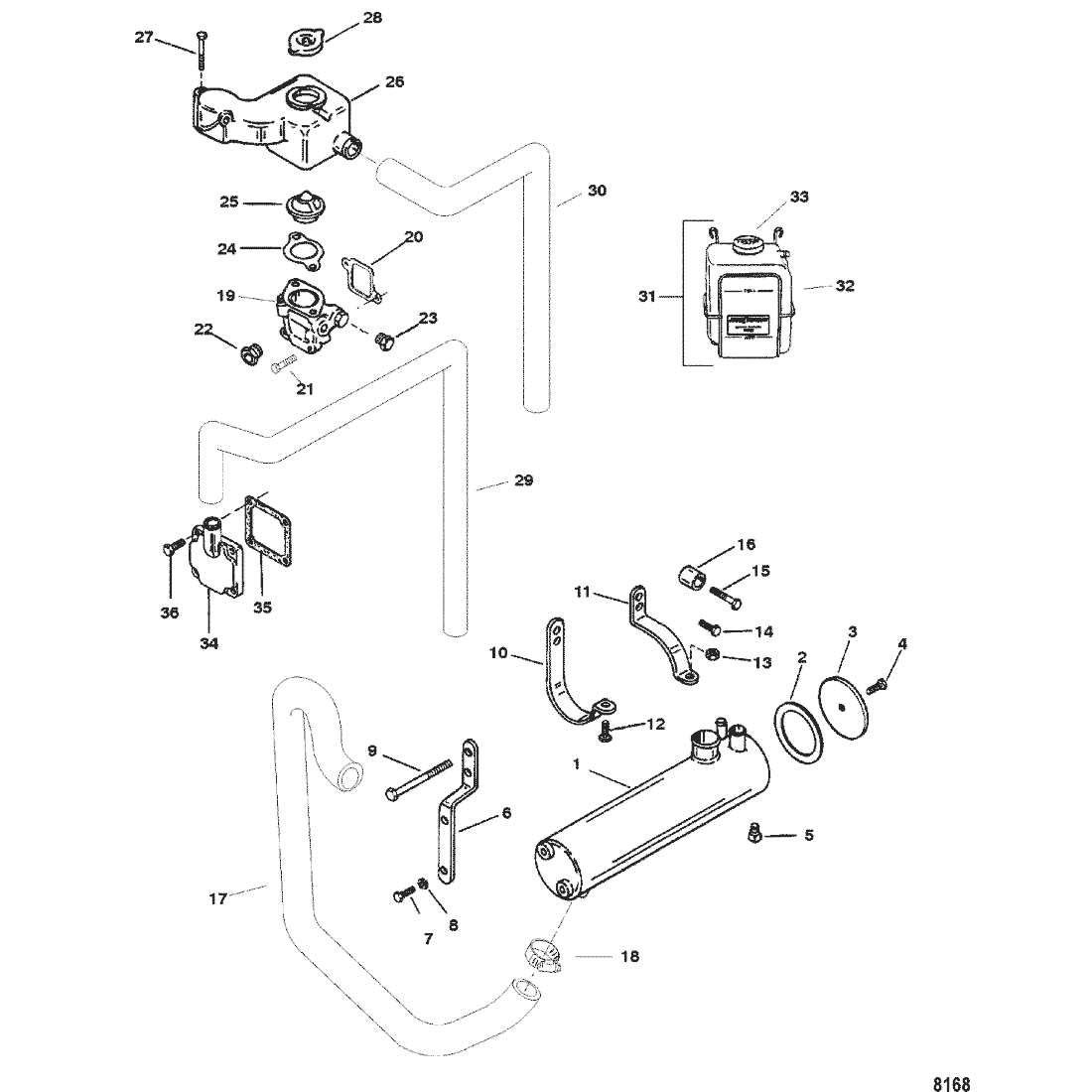

| - | 61086A11 | CLOSED COOLING KIT | 61086A9 | SS |
|
$3,585.99 | $3,287.04 | 1 | |
| 1 | 8M0157284 | --HEAT EXCHANGER ASSEMBLY | 61086A7 | SS |
|
$2,737.49 | $2,509.13 | 1 | |
| 2 | 65128 | ----GASKET | ACT | $12.19 | $11.90 | 1 | |||
| 3 | 66221 | ----COVER, End | ACT | $53.99 | $51.91 | 1 | |||
| 4 | 66223 | ----SCREW | NLA |
|
$0.00 | $0.00 | 1 | ||
| 5 | 328022 | ----PLUG, Pipe (.125-27) Brass | ACT | $7.59 | $7.42 | 2 | |||
| 6 | 61895 | --BRACKET, Front | ACT | $60.49 | $58.20 | 1 | |||
| 7 | 98261 | --SCREW, (.375-16 x .750) | ACT | $1.20 | $1.18 | 2 | |||
| 8 | 35048 | --LOCKWASHER, (.375) | ACT | $1.20 | $1.18 | 2 | |||
| 9 | 36359 | --SCREW, (.437-14 x 5.00) | ACT | $3.79 | $3.69 | 2 | |||
| 10 | 61899 | --BRACKET, Rear Lower | ACT | $49.99 | $49.02 | 1 | |||
| 11 | 61897T | --BRACKET, Rear Upper | ACT | $89.49 | $85.77 | 1 | |||
| 12 | 65027 | --SCREW, (.250-28 x 1.00) | ACT | $2.49 | $2.43 | 1 | |||
| 13 | 826709109 | --NUT, (.250-28) | 35045 | SS |
|
$3.59 | $3.50 | 1 | |
| 14 | 76926 | --SCREW, (.375-16 x .875) | ACT | $1.10 | $1.08 | 1 | |||
| 15 | 34354 | --SCREW, (.375-16 x 1.50) | ACT | $2.39 | $2.33 | 1 | |||
| 16 | 57369 | --SPACER | ACT | $19.79 | $19.40 | 1 | |||
| 17 | 96763 | --HOSE, Water Pump To Heat Exchanger | ACT | $146.49 | $137.96 | 1 | |||
| 18 | 815504228 | --CLAMP, Worm Gear | ACT | $17.29 | $16.94 | 2 | |||
| NS | 8M0074364 | COVER, Hose Clamp End | 8079923 | SS |
|
$3.29 | $3.21 | AR | |
| 19 | 862874A1 | --HOUSING ASSEMBLY, Thermostat | 68673A1 | SS |
|
$173.49 | $163.00 | 1 | |
| 20 | 8146801 | --GASKET | 814680 | SS |
|
$4.19 | $4.10 | 1 | |
| 21 | 20359 | --SCREW, (.375-16 x 1.00) | ACT | $1.80 | $1.76 | 1 | |||
| 21 | 37612 | --SCREW, (.375-16 x 1.250) | ACT | $2.49 | $2.43 | 1 | |||
| 22 | 52382 | --BUSHING | ACT | $8.49 | $8.29 | 1 | |||
| 23 | 32804 | --PLUG, (.500-14) | ACT | $17.09 | $16.68 | 2 | |||
| 24 | 8M2021920 | --GASKET | 33918 | SS |
|
$4.09 | $4.00 | 1 | |
| 25 | 8M0109441 | --THERMOSTAT, 71°C (160°F) | 8072522 | SS |
|
$34.49 | $33.72 | 1 | |
| 26 | 96878A2 | --RESERVOIR ASSEMBLY | ACT | $372.99 | $351.02 | 1 | |||
| 27 | 35787 | --SCREW, (.375-16 x 2.250) | ACT | $2.79 | $2.72 | 2 | |||
| 28 | 13130 | --CAP, Pressure | ACT | $17.19 | $16.78 | 1 | |||
| 29 | 96766 | --HOSE, Exhaust Manifold To Heat Exchanger | ACT | $78.49 | $75.35 | 1 | |||
| 30 | 96765 | --HOSE, Reservoir To Exchanger | ACT | $120.99 | $113.87 | 1 | |||
| NS | 815412 | --HOSE, Power Steering Cooler To Thermostat Housing | ACT | $73.99 | $71.18 | 1 | |||
| 31 | 71587A10 | --RECOVERY KIT, Coolant | ACT |
|
$97.49 | $93.54 | 1 | ||
| NS | 774572 | ----HOSE, (48.00 Inches Bulk) | ACT | $70.49 | $67.57 | 2 | |||
| 32 | 71587A11 | ----BOTTLE, Plastic | ACT |
|
$74.99 | $71.82 | 1 | ||
| 33 | 72058 | ------CAP | ACT | $11.29 | $11.02 | 1 | |||
| 34 | 60252A2 | --END CAP, Exhaust Manifold | ACT | $161.49 | $152.09 | 1 | |||
| 35 | 480431 | --GASKET, End Cover | ACT | $5.49 | $5.37 | 1 | |||
| 36 | 35386 | --SCREW, (.312-18 x 1.00) | ACT | $1.10 | $1.08 | 4 | |||
| - | 810846A05 | GASKET SET, Overhaul | 810846A90 | SS |
|
$657.49 | $618.18 | 1 |
