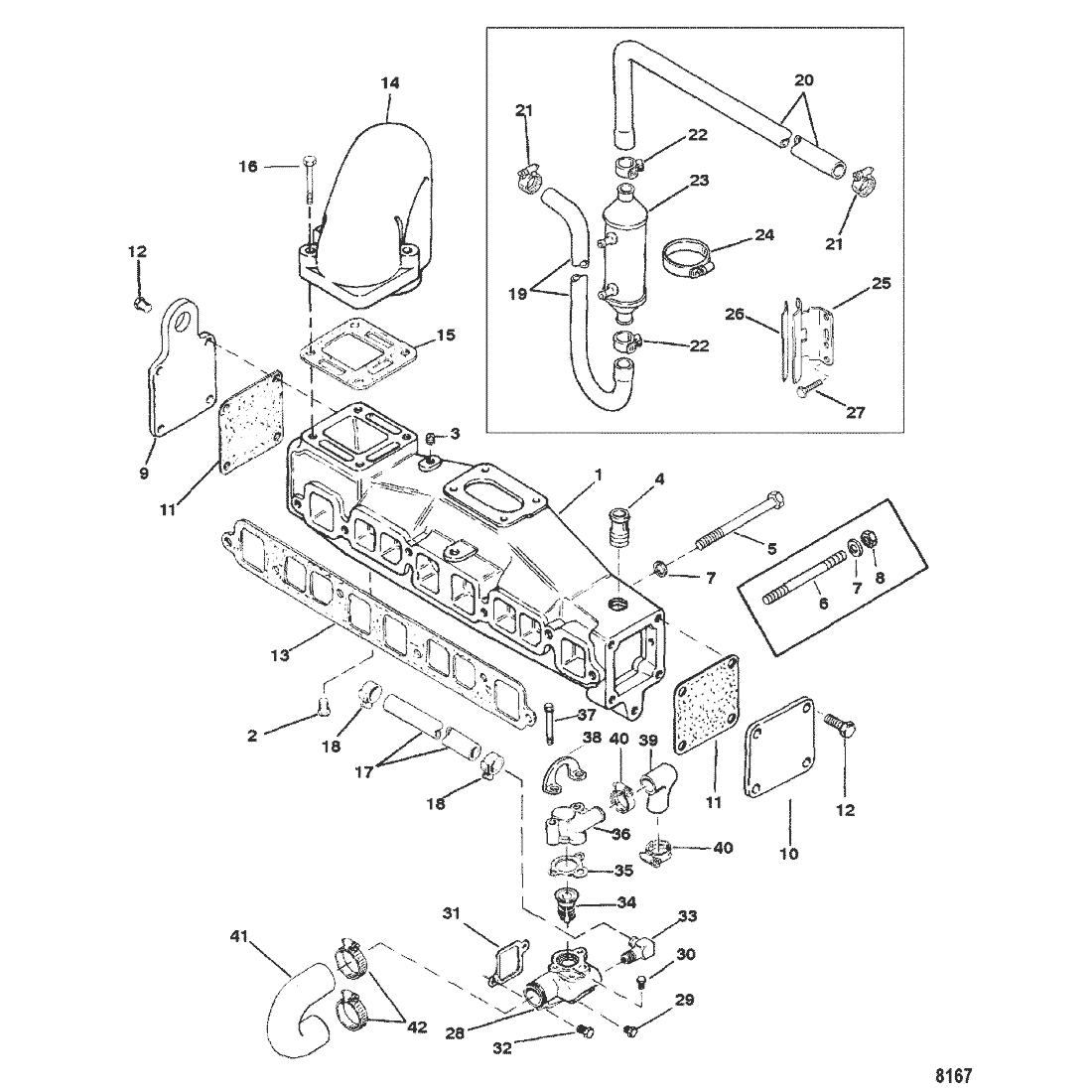

| Ref # | Current Part Nbr |
Description | Superceded From |
Status | Notes | List Price |
Online Price |
Quan Used |
Order Quan |
|---|---|---|---|---|---|---|---|---|---|
| 1 | 860235A03 | MANIFOLD ASSEMBLY, Exhaust | 806867A3 | SS/ACT |
 |
$551.36 | $518.72 | 1 | |
| 2 | 328022 | --PLUG, Pipe (.125-27) | 328021 | SS/ACT |
|
$7.30 | $7.12 | 1 | |
| 3 | 36382 | --FITTING, (.250-18 x .62) Brass | ACT | $5.30 | $5.17 | 1 | |||
| 4 | 866725 | --FITTING, Hose | 807155 | SS/ACT |
|
$17.60 | $17.17 | 1 | |
| 4 | 8M0204679 | --FITTING, Pipe - Brass (.750-14) | 428611 | SS/ACT |
|
$10.60 | $10.34 | 1 | |
| 5 | 8M0214937 | --SCREW, (.375-16 x 4.75) | ACT | $4.90 | $4.78 | 2 | |||
| 6 | 806300 | --STUD, (.375 x 5.380) | SS |
|
$0.00 | $0.00 | 3 | ||
| 7 | 20553 | --WASHER, (.406 x .734 x .063) | ACT | $1.40 | $1.37 | 5 | |||
| 8 | 46335 | --NUT, (.375-24) | ACT | $2.83 | $2.77 | 3 | |||
| 9 | 805629A1 | --END CAP/LIFTING EYE, Rear | ACT | $38.42 | $37.73 | 1 | |||
| 10 | 73813A1 | --END CAP ASSEMBLY, Front | ACT |
|
$47.33 | $46.48 | 1 | ||
| 11 | 807218 | ----GASKET | ACT |
|
$4.50 | $4.39 | 2 | ||
| 12 | 824941 | --SCREW, (.312-18 x .750) | ACT | $14.40 | $14.05 | 8 | |||
| 13 | 815528 | --GASKET | ACT |
|
$20.08 | $19.72 | 1 | ||
| 14 | 12076A2 | ELBOW ASSEMBLY, Exhaust | ACT | $412.58 | $388.53 | 1 | |||
| 14 | 12076A5 | ELBOW ASSEMBLY, Exhaust | SS |
|
$0.00 | $0.00 | 1 | ||
| 15 | 997772 | --GASKET | ACT |
|
$4.40 | $4.30 | 1 | ||
| 16 | 668631 | --SCREW, (.375-16 x 2.500) | ACT | $1.90 | $1.86 | 2 | |||
| 17 | 8M0062634 | HOSE, Transom Plate To Housing | 4285064 | SS/ACT |
|
$39.42 | $38.71 | 1 | |
| 18 | 8M0204717 | CLAMP, Worm Gear | ACT |
|
$6.60 | $6.44 | 2 | ||
| 19 | 815413 | HOSE, Transom Plate To Power Steering Cooler | ACT |
|
$35.08 | $34.45 | 1 | ||
| 20 | 806433 | HOSE, Power Steering Cooler To Housing | ACT |
|
$56.08 | $53.95 | 1 | ||
| 21 | 815504220 | CLAMP, Worm Gear | ACT |
|
$7.30 | $7.12 | 2 | ||
| 22 | 8M0204717 | CLAMP, Worm Gear | ACT |
|
$6.60 | $6.44 | 2 | ||
| 23 | 99356A1 | COOLER ASSEMBLY, Oil | ACT |
|
$385.88 | $355.62 | 1 | ||
| 24 | 815504232 | CLAMP, Worm Gear (2.50 Diameter) | ACT |
|
$8.60 | $8.39 | 1 | ||
| 25 | 805546A2 | BRACKET, Oil Cooler | ACT |
|
$75.65 | $73.45 | 1 | ||
| 26 | 772233 | --PAD | ACT |
|
$5.80 | $5.66 | 1 | ||
| 27 | 816585 | SCREW, (.375-18 x .875) | ACT |
|
$3.30 | $3.22 | 1 | ||
| 28 | 861493A07 | HOUSING ASSEMBLY, Thermostat | 47587A2 | SS/ACT |
|
$177.08 | $166.76 | 1 | |
| 29 | 8M0180565 | --PLUG, Pipe (.375-18) Brass | 32803 | SS/ACT |
|
$7.70 | $7.51 | 1 | |
| 30 | 328022 | --PLUG, Pipe (.125-27) | 328021 | SS/ACT |
|
$7.30 | $7.12 | 1 | |
| 31 | 8146801 | GASKET | 814680 | SS/ACT |
|
$4.00 | $3.91 | 1 | |
| 32 | 90059 | SCREW, (.375-16 x .875) | ACT |
|
$2.70 | $2.64 | 2 | ||
| 32 | 90059 | SCREW, (.375-16 x .875) | ACT |
|
$2.70 | $2.64 | 1 | ||
| 32 | 90187 | SCREW, (.375-16 x 1.250) | ACT |
|
$7.20 | $7.03 | 1 | ||
| 33 | 807705 | ELBOW (90 Degree) | SS |
|
$0.00 | $0.00 | 1 | ||
| 34 | 59078 | THERMOSTAT | ACT | $37.92 | $37.24 | 1 | |||
| 35 | 475901 | GASKET | ACT |
|
$3.30 | $3.22 | 1 | ||
| 36 | 861493A07 | COVER ASSEMBLY, Thermostat Housing | 60372A2 | SS/ACT |
|
$177.08 | $166.76 | 1 | |
| 37 | 79654 | --SCREW, (.312-18 x 2.380) | SS |
|
$3.10 | $3.03 | 2 | ||
| 38 | 805628T | LIFTING EYE | ACT | $6.46 | $6.31 | 1 | |||
| 39 | 8M0172867 | HOSE, Housing Cover To Manifold | 806993 | SS/ACT |
|
$21.00 | $20.62 | 1 | |
| 40 | 815504220 | CLAMP, Worm Gear | ACT | $7.30 | $7.12 | 2 | |||
| 41 | 8M0071007 | HOSE, Housing To Water Pump | 96879 | SS/ACT |
|
$43.92 | $43.13 | 1 | |
| 42 | 815504232 | CLAMP, Worm Gear (2.50 Diameter) | ACT | $8.60 | $8.39 | 2 | |||
| NS | 8M0074364 | COVER, Hose Clamp End | ACT |
|
$3.20 | $3.13 | AR | ||
| - | 810846A05 | GASKET SET, Overhaul | 810846A90 | SS/ACT |
|
$599.93 | $564.42 | 1 |
