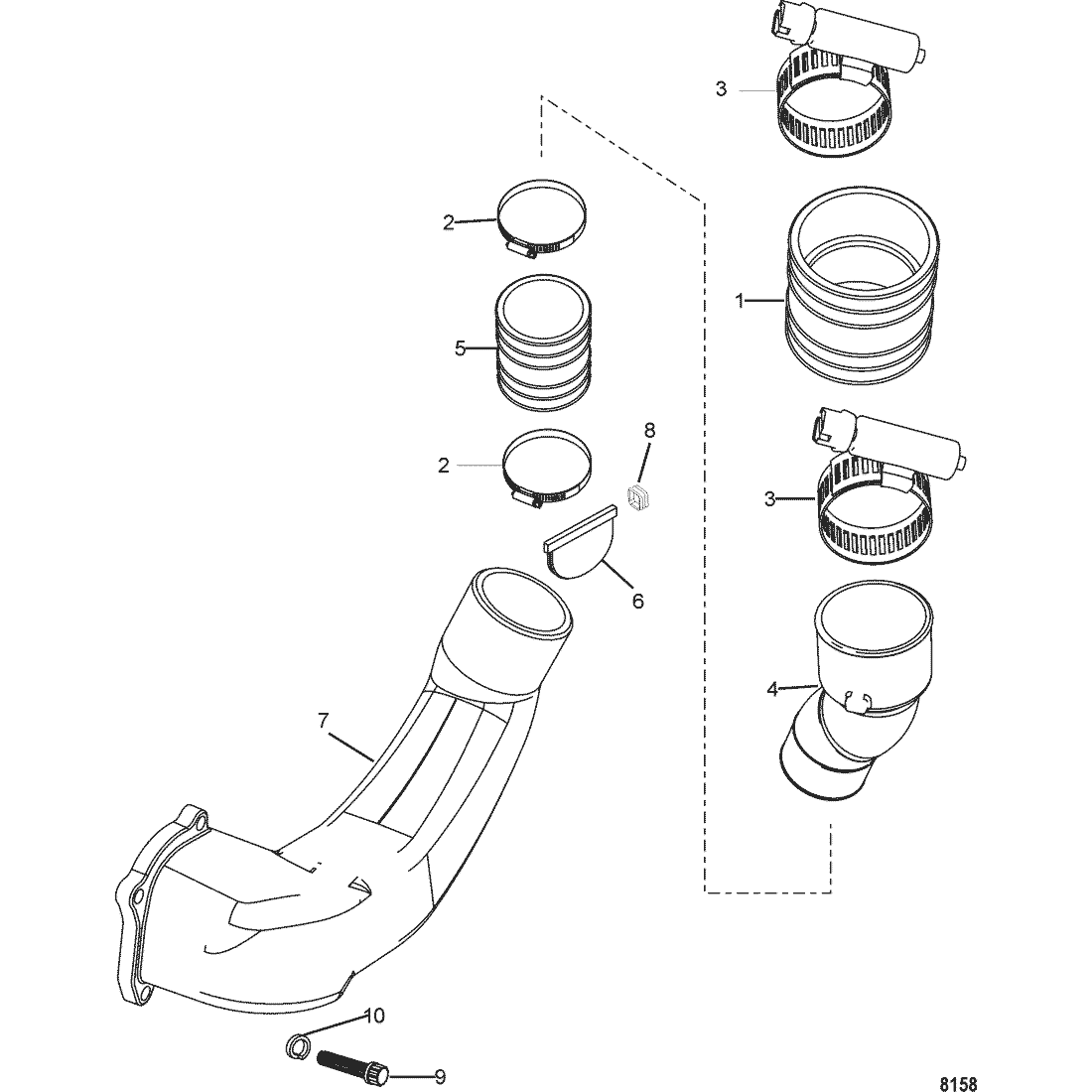

Exhaust System

Ref #	Current Part Nbr	Description	Superceded From	Status	List Price	Online Price	Quan Used
1	44348001	TUBE, Exhaust	44348T	SS/ACT	$81.00	$77.91	1
2	815504256	CLAMP, Worm Gear, Small		ACT	$15.70	$15.31	4
3	815504372	CLAMP, Worm Gear, Large		ACT	$15.90	$15.51	4
NS	8M0074364	COVER, Hose Clamp End		ACT	$3.20	$3.13	AR
4	42422A2	PIPE ASSEMBLY, Exhaust		ACT	$199.42	$187.80	1
5	90949T	TUBE, Exhaust		ACT	$83.92	$80.72	1
6	60930	SHUTTER, Water		ACT	$40.58	$39.85	1
7	42421A5	ELBOW ASSEMBLY, Exhaust		ACT	$371.93	$355.51	1
8	43809	--GROMMET		ACT	$1.20	$1.18	2
9	8M0113174	SCREW, (.375-16 x 1.25)		ACT	$7.00	$6.83	4
10	41471	LOCKWASHER, (.375)		ACT	$2.20	$2.15	4

1

44348001

TUBE, Exhaust

44348T

SS/ACT

$81.00

$77.91

1

2

815504256

CLAMP, Worm Gear, Small

ACT

$15.70

$15.31

4

3

815504372

CLAMP, Worm Gear, Large

ACT

$15.90

$15.51

4

NS

8M0074364

COVER, Hose Clamp End

ACT

$3.20

$3.13

AR

4

42422A2

PIPE ASSEMBLY, Exhaust

ACT

$199.42

$187.80

1

5

90949T

TUBE, Exhaust

ACT

$83.92

$80.72

1

6

60930

SHUTTER, Water

ACT

$40.58

$39.85

1

7

42421A5

ELBOW ASSEMBLY, Exhaust

ACT

$371.93

$355.51

1

8

43809

--GROMMET

ACT

$1.20

$1.18

2

9

8M0113174

SCREW, (.375-16 x 1.25)

ACT

$7.00

$6.83

4

10

41471

LOCKWASHER, (.375)

ACT

$2.20

$2.15

4
