| Ref # | Current Part Nbr |
Description | Superceded From |
Status | Notes | List Price |
Online Price |
Quan Used |
Order Quan |
|---|---|---|---|---|---|---|---|---|---|

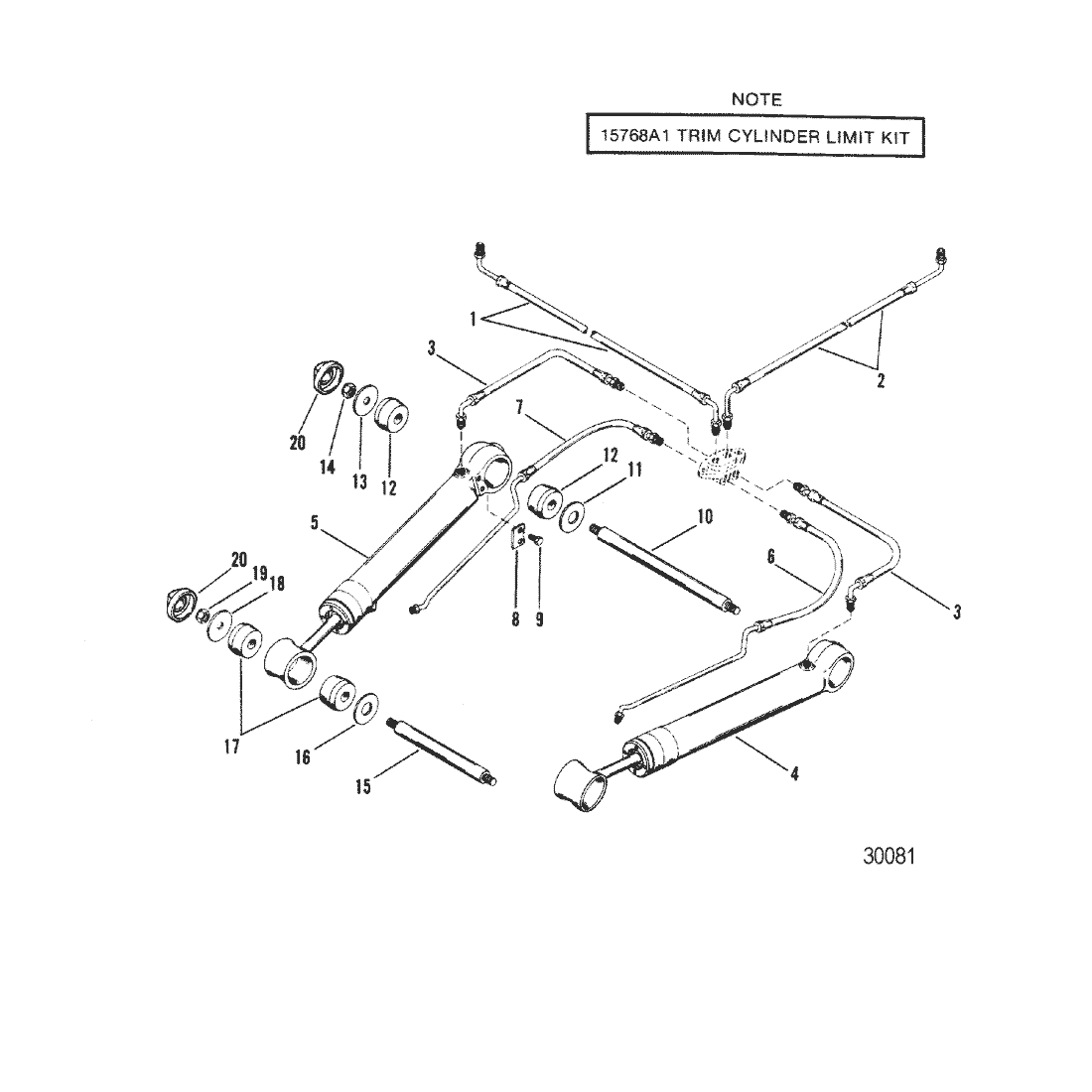

| 1 | 861127 | HOSE, Black, HYDRAULIC - CONNECTOR TO PUMP (BLACK) | ACT | $94.49 | $90.90 | 1 | |||
| 2 | 861128 | HOSE, Gray, HYDRAULIC - CONNECTOR TO PUMP (GRAY) | ACT | $96.49 | $92.42 | 1 | |||
| 3 | 99904Q | HOSE, HYDRAULIC - TRIM CYLINDER TO CONNECTOR | 99904 | SS |
|
$65.49 | $62.92 | 2 | |
| 4 | 98704A3 | TRIM CYLINDER ASSEMBLY (STARBOARD) | ACT |
|
$573.49 | $539.15 | 1 | ||
| 4 | 8M0118961 | TRIM CYLINDER ASSEMBLY (STARBOARD) (BLACK) | 14034A3 | SS |
|
$647.49 | $608.84 | 1 | |
| 5 | 98703A3 | TRIM CYLINDER (PORT) | ACT |
|
$599.49 | $563.95 | 1 | ||
| 5 | 8M0118960 | TRIM CYLINDER ASSEMBLY (PORT) (BLACK) | 14035A3 | SS |
|
$647.49 | $608.84 | 1 | |
| -- | 87399A2 | --OVERHAUL KIT, TRIM CYLINDER | ACT |
|
$241.99 | $227.74 | 2 | ||
| -- | 87400A2 | ----SEAL KIT, TRIM CYLINDER | ACT | $39.99 | $39.20 | 2 | |||
| 6 | 864589 | HOSE, Trim Cylinder (STARBOARD) | 99902 | SS |
|
$75.49 | $72.46 | 1 | |
| 6 | 864960 | HOSE, Trim Cylinder (STARBOARD) | 999021 | SS |
|
$72.99 | $69.98 | 1 | |
| 7 | 864588 | HOSE, Trim Cylinder (PORT) | 99903 | SS |
|
$75.99 | $72.78 | 1 | |
| 7 | 864959 | HOSE, Trim Cylinder (PORT) | 999031 | SS |
|
$72.99 | $69.98 | 1 | |
| 8 | 85060 | PLATE, CLAMPING - TRIM CYLINER HOSE | ACT | $8.69 | $8.49 | 2 | |||
| 9 | 85486 | SCREW, (.250-20 x .380) Stainless Steel, CLAMPING PLATE | ACT | $1.80 | $1.76 | 4 | |||
| 10 | 14873A1 | PIN ASSEMBLY, FRONT ACNHOR | ACT | $175.99 | $165.59 | 1 | |||
| 11 | 85058 | WASHER, FRONT PIN | ACT | $4.09 | $4.00 | 2 | |||
| 12 | 99291T | BUSHING, RUBBER | ACT | $8.09 | $7.90 | 4 | |||
| 13 | 85057 | WASHER, FRONT PIN 3/8-24 THREADS | ACT |
|
$6.69 | $6.54 | 2 | ||
| 13 | 44163 | --WASHER, (.450 x 1.75 x .12), FRONT PIN | ACT | $3.79 | $3.69 | 2 | |||
| 14 | 862903 | NUT, (.375-24), FRONT PIN | ACT |
|
$3.59 | $3.50 | 2 | ||
| 14 | 859116 | --NUT, (.437-20), FRONT PIN | ACT | $5.09 | $4.98 | 2 | |||
| 15 | 14872A1 | PIN, REAR ANCHOR 3/8-24 THREADS | 99207 | SS |
|
$121.99 | $114.81 | 1 | |
| 15 | 14872A1 | PIN ASSEMBLY, REAR ANCHOR 7/16-20 THREADS | ACT | $121.99 | $114.81 | 1 | |||
| 16 | 85058 | WASHER, Included With 14872A 1 | ACT | $4.09 | $4.00 | 2 | |||
| 17 | 99291T | BUSHING, RUBBER, Included With 14872A 1 | ACT | $8.09 | $7.90 | 4 | |||
| 18 | 85057 | WASHER, REAR PIN 3/8-24 THREADS | ACT | $6.69 | $6.54 | 2 | |||
| 18 | 44163 | WASHER, (.450 x 1.75 x .12), REAR PIN, Included With 14872A 1 | ACT | $3.79 | $3.69 | 2 | |||
| 19 | 862903 | NUT, (.375-24), REAR PIN | ACT | $3.59 | $3.50 | 2 | |||
| 19 | 859116 | NUT, (.437-20), REAR PIN, Included With 14872A 1 | ACT | $5.09 | $4.98 | 2 | |||
| 20 | 14842 | CAP, FRONT PIN | ACT | $3.59 | $3.50 | 2 | |||
| 20 | 14842 | CAP, REAR PIN, Included With 14872A 1 | ACT | $3.59 | $3.50 | 2 |
