| Ref # | Current Part Nbr |
Description | Superceded From |
Status | Notes | List Price |
Online Price |
Quan Used |
Order Quan |
|---|---|---|---|---|---|---|---|---|---|

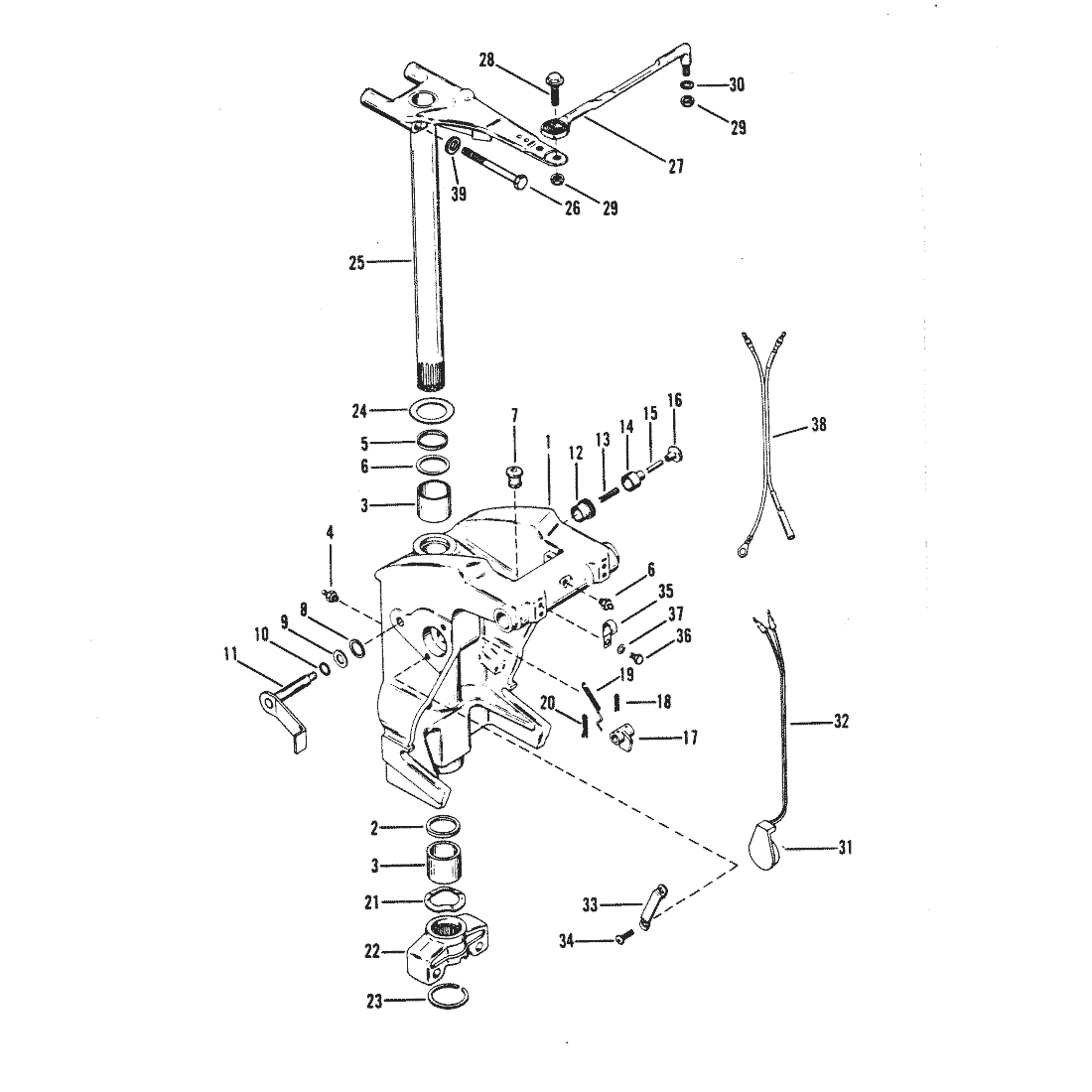

| 1 | 9225A3 | SWIVEL BRACKET ASSEMBLY BLACK | NLA |
|
$0.00 | $0.00 | 1 | ||
| 1 | 9225A4 | SWIVEL BRACKET ASSEMBLY GRAY | NLA |
|
$0.00 | $0.00 | 1 | ||
| 2 | 87735 | --OIL SEAL (LOWER) | ACT | $29.99 | $29.38 | 1 | |||
| 3 | 99813A1 | --BUSHING | NLA |
|
$0.00 | $0.00 | 2 | ||
| 4 | 8M0169589 | --GREASE FITTING | 74036 | SS |
|
$4.79 | $4.69 | 4 | |
| 5 | 67668 | SPACER | NLA |
|
$0.00 | $0.00 | 1 | ||
| 6 | 33466 | O-RING | ACT | $3.19 | $3.11 | 1 | |||
| 7 | 88341 | GROMMET (STANDARD) | NLA |
|
$0.00 | $0.00 | 2 | ||
| 8 | 85023 | OIL SEAL | ACT | $16.69 | $16.37 | 2 | |||
| 9 | 87161 | WASHER | ACT | $4.29 | $4.20 | 2 | |||
| 10 | 48171 | O-RING | ACT | $1.70 | $1.66 | 2 | |||
| 11 | 85030A2 | TILT LOCK LEVER (PORT) | NLA |
|
$0.00 | $0.00 | 1 | ||
| 11 | 85028A2 | 1ILT LOCK LEVER (STARBOARD) | NLA |
|
$0.00 | $0.00 | 1 | ||
| 12 | 86600 | BUSHING | NLA |
|
$0.00 | $0.00 | 1 | ||
| 13 | 85367 | SPRING | NLA |
|
$0.00 | $0.00 | 1 | ||
| 14 | 41052 | PLUNGER | NLA |
|
$0.00 | $0.00 | 1 | ||
| 15 | 88876 | STUD | NLA |
|
$0.00 | $0.00 | 1 | ||
| 16 | 86603 | KNOB | NLA |
|
$0.00 | $0.00 | 1 | ||
| 17 | 864751 | COUPLING | ACT | $20.49 | $20.13 | 1 | |||
| 18 | 69745 | PIN | ACT | $5.19 | $5.08 | 2 | |||
| 19 | 88049 | SPRING | ACT | $15.59 | $15.22 | 1 | |||
| 20 | 93861 | COTTER PIN | NLA |
|
$0.00 | $0.00 | 1 | ||
| 21 | 78854 | WAVE WASHER | ACT | $13.89 | $13.56 | 1 | |||
| 22 | 878182T01 | BOTTOM YOKE BLACK | 86580A1 | NLA |
|
$152.49 | $137.41 | 1 | |
| 22 | 878182T01 | BOTTOM YOKE GRAY | 86580A2 | SS |
|
$152.49 | $137.41 | 1 | |
| 23 | 67684 | RETAINING RING | ACT | $4.49 | $4.39 | 1 | |||
| 24 | 67670 | THRUST WASHER | NLA |
|
$0.00 | $0.00 | 1 | ||
| 25 | 840792A1 | SWIVEL PIN AND STEERING ARM BLACK | 67706A46 | SS |
|
$0.00 | $0.00 | 1 | |
| 25 | 840792A1 | SWIVEL PIN AND STEERING ARM GRAY | 67706A47 | SS |
|
$0.00 | $0.00 | 1 | |
| 26 | 132121 | SCREW | ACT | $29.69 | $29.27 | 2 | |||
| 27 | 92876A12 | STEERING LINK ASSEMBLY | 92876A1 | SS |
|
$93.68 | $88.24 | 1 | |
| 28 | 849838 | SCREW (1-1/4") | 14000 | SS |
|
$22.09 | $21.69 | 1 | |
| 29 | 8M0204726 | NUT | 34863 | SS |
|
$1.80 | $1.76 | 2 | |
| 30 | 37828 | WASHER | ACT | $0.80 | $0.79 | 2 | |||
| 31 | 86485A5 | TRIM SENDER ASSEMBLY | NLA |
|
$0.00 | $0.00 | 1 | ||
| 31 | 86485A6 | TILT SWITCH ASSEMBLY | NLA |
|
$0.00 | $0.00 | 1 | ||
| 32 | 65017A14 | --HARNESS (2 FEMALE/2 MALES) | ACT |
|
$17.39 | $16.97 | 1 | ||
| 33 | 88342 | STRAP | NLA |
|
$0.00 | $0.00 | 2 | ||
| 34 | 87926 | SCREW | NLA |
|
$0.00 | $0.00 | 4 | ||
| 35 | 54457 | CLAMP | ACT |
|
$4.79 | $4.69 | 1 | ||
| 36 | 98256 | SCREW | NLA |
|
$0.00 | $0.00 | 1 | ||
| 37 | 8M0204649 | WASHER | 29245 | SS |
|
$1.20 | $1.18 | 1 | |
| 38 | 65017A25 | TRIM HARNESS | NLA |
|
$0.00 | $0.00 | 1 | ||
| 39 | 816056 | WASHER | ACT | $5.20 | $5.13 | 2 |
