Ref # Current
Part Nbr
Description Superceded
From
Status Notes List
Price
Online
Price
Quan
Used
My
Order
Quan

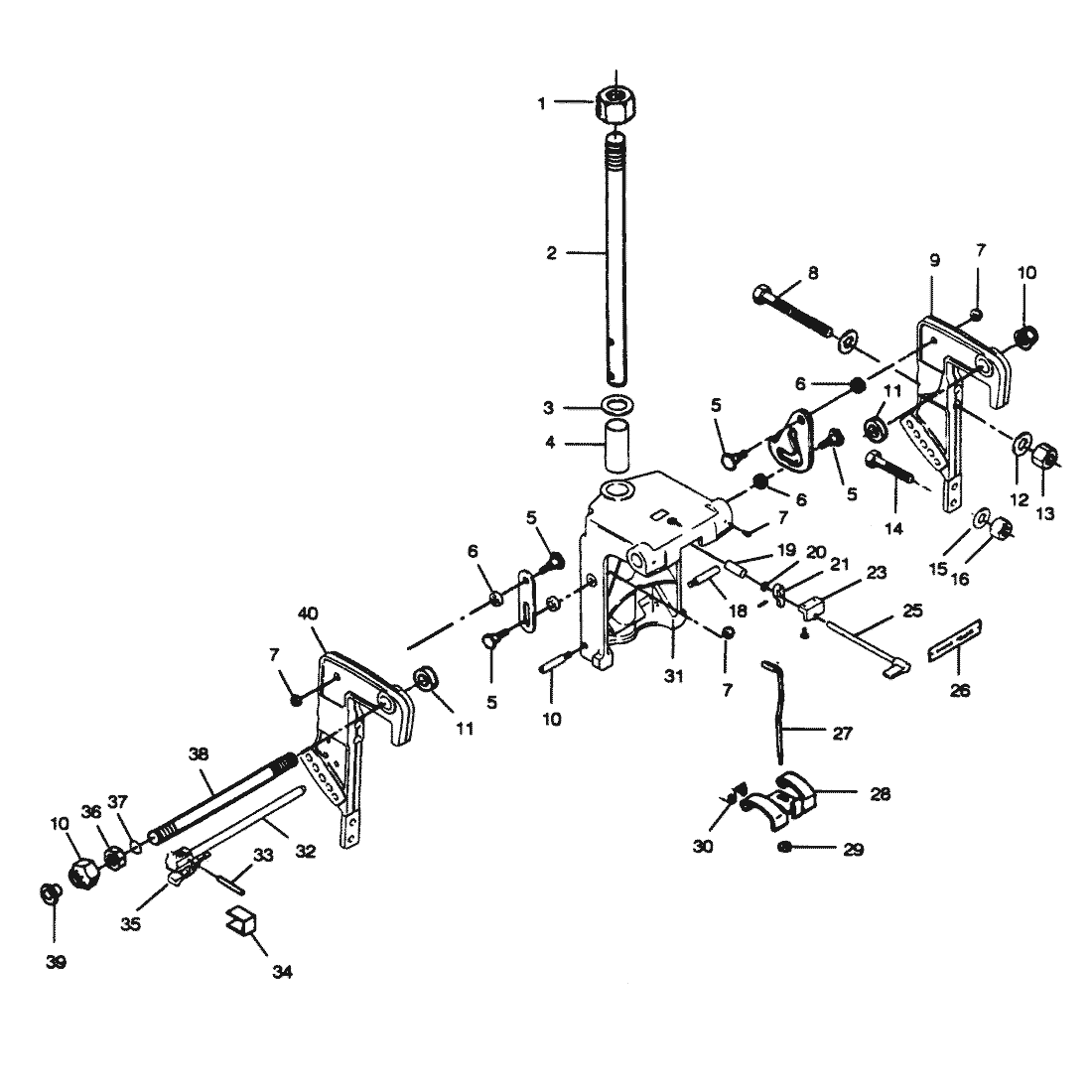

1 11-F84280 NUT, KINGPIN NLA $0.00 $0.00 1
2 819331A2 KINGPIN NLA $0.00 $0.00 1
3 12-69342 WASHER, SWIVEL BRACKET F89011 SS/NLA $0.00 $0.00 1
4 23-F191169-1 BEARING, SWIVEL BRACKET NLA $0.00 $0.00 2
5 F366350-1 PIVOT ACT $7.60 $7.42 4
6 23-F269929 SPACER ACT $9.40 $9.17 4
7 F7052 NUT F7007 SS/NLA $0.00 $0.00 4
8 10-F685632 BOLT, LONG MOUNTING NLA $0.00 $0.00 2
9 1400-F684532 BRACKET, PORT STERN NLA $0.00 $0.00 1
10 19-F9018 PLASTIC CAP NLA $0.59 $0.58 2
11 12-F522286 WASHER, FRICTION NLA $0.00 $0.00 2
12 12-FK684201 WASHER F684201 SS/NLA $6.80 $6.64 2
13 11-82671117 NUT, 1/2 - 20 F7056 SS/ACT $7.60 $7.42 2
14 10-F2185 HEX HEAD SCREW, 3/8 - 16 X 3-1/2 S.S. NLA $11.08 $10.81 2
15 12-F684415 WASHER NLA $0.00 $0.00 2
16 11-86226 HEX NUT, 3/8 - 16 S.S. ACT $2.30 $2.25 2
17 22-F213274 GREASE FITTING NLA $2.00 $1.96 3
18 826578 PIN F366886 SS/ACT $14.70 $14.34 2
19 23-26856 BEARING, REVERSE LOCK SHAFT, REAR F197813 SS/ACT $3.50 $3.42 1
20 91925 FASTENER F2088 SS/ACT $0.90 $0.88 2
21 F366364 AARM, REVERSE LOCK ACT $0.00 $0.00 1
22 17-F1836 SPRING PIN ACT $0.90 $0.88 1
23 F522884 BEARING, REVERSE LOCK SHAFT, FRONT NLA $0.00 $0.00 1
24 10-852453 PAN HEAD SCREW, 10 - 24 X 9/16 F1733 SS/ACT $1.20 $1.18 2
25 817944A2 HANDLE, END SHAFT W/FASTENERS AND REAR BEARING NLA $0.00 $0.00 1
26 37-F544390-1 DECAL, TILT LOCK NLA $0.00 $0.00 1
27 F366510-1 LINK, REVERSE LOCK NLA $0.00 $0.00 1
28 821805A1 LOCK, REVERSE F366349 SS/ACT $114.75 $105.76 1
29 11-F1669 STOP NUT ACT $2.10 $2.05 1
30 24-F366300 SPRING, REVERSE LOCK ACT $5.30 $5.17 2
31 817868A2 BRACKET, SWIVEL FA613072 SS/NLA $0.00 $0.00 1
32 FA658113 LOCK BAR W/HANDLE FA433113 SS/NLA $54.54 $51.80 1
33 17-25319 SPRING PIN F1744 SS/ACT $4.20 $4.10 1
34 24-F286461 SPRING, LOCK BAR HANDLE ACT $13.80 $13.46 1
35 816517 HANDLE, LOCK BAR F433114 SS/NLA $10.00 $9.76 1
36 11-858869 LOCKNUT F1600 SS/ACT $4.10 $4.00 2
37 25-48462 SEAL, PIVOT TUBE F316599 SS/ACT $1.50 $1.47 1
38 819545A1 TUBE, PIVOT F522125-1 SS/ACT $90.58 $87.13 1
39 19-F9052 PLASTIC PLUG NLA $0.00 $0.00 2
40 1400-F684032 BRACKET, STARBOARD STERN NLA $0.00 $0.00 1
