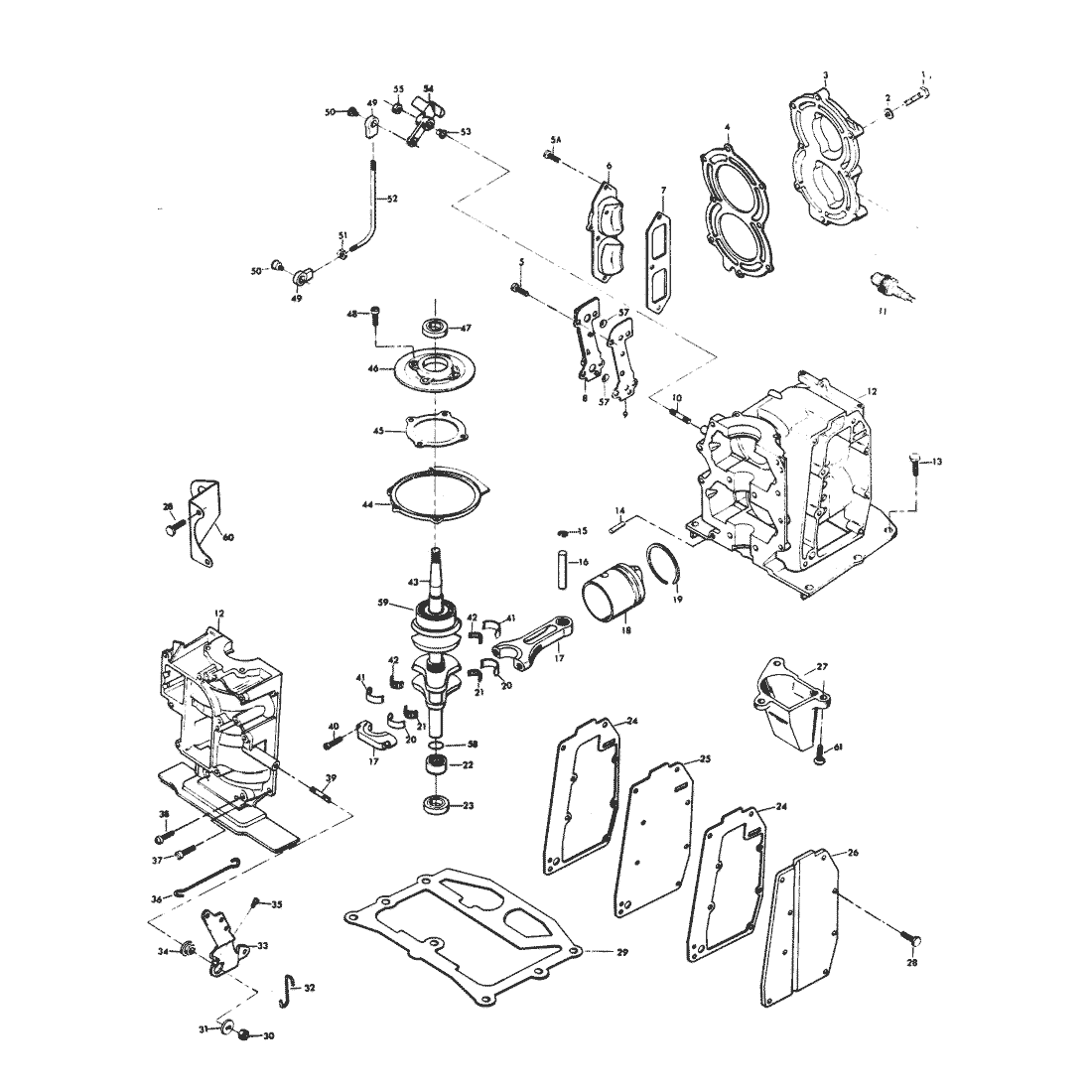

Ref # Current
Part Nbr		 Description Superceded
From		 Status Notes List
Price		 Online
Price		 Quan
Used		 Order
Quan
1 F901938-1 SCREW, CYLINDER HEAD NLA $0.00 $0.00 8
2 37998 PLAIN WASHER F8025 SS $0.70 $0.69 8
3 F492518 HEAD, CYLINDER NLA $0.00 $0.00 1
4 F286529-3 GASKET, CYLINDER HEAD NLA $0.00 $0.00 1
5 F1922 HEX HD SCREW, 1/4 - 20 X 5/8 NLA $0.00 $0.00 4
5A F510165 SCREW NLA $0.00 $0.00 3
- 832794 HEX SOCKET HEADLESS SET SCREW, 1/4 - 28 X 3/16 F1859 SS $10.69 $10.44 1
6 F510222 COVER, TRANSFER PORT NLA $0.00 $0.00 1
7 825183 GASKET, TRANSFER PORT COVER F286223 SS $6.89 $6.73 1
8 820070A3 COVER, CYLINDER DRAIN W/CHECK VALVES AND SCREWS FA429471 SS $0.00 $0.00 1
9 825188 GASKET, CYLINDER DRAIN COVER F429472 SS $0.00 $0.00 1
10 F28004 STUD, INTERLOCK LEVER NLA $0.00 $0.00 1
11 896323 PLUG, SPARK, L-4-J FS174227 SS $6.39 $6.25 2
- FC310227 SPARK PLUG (QL-4-J) FOR MODEL 100BA NLA $0.00 $0.00 2
12 FA510010 CYLINDER W/CRANKCASE COVER, CYLINDER DRAIN COVER, DOWEL PINS NLA $0.00 $0.00 1
13 F1823 HEX CAP SCREW, 5/16 - 18 X 1 NLA $0.00 $0.00 6
14 F8559 DOWEL PIN NLA $0.00 $0.00 2
15 F31410 RETAINING RING, PISTON PIN NLA $0.00 $0.00 4
16 F712017 PIN, PISTON F174017 SS $0.00 $0.00 2
17 819950A1 ROD, CONNECTING W/CAP AND SCREWS F2A286016 SS $0.00 $0.00 2
18 F286015-3 PISTON NLA $0.00 $0.00 2
19 FA174260 PISTON RING SET (2 PER SET) NLA $0.00 $0.00 2
20 817755A1 CONNECTING ROD LINER SET (2 PER SET) NLA $0.00 $0.00 2
21 FA517228 ROLLER SET, CONNECTING ROD (26 PER SET) F286228 SS $0.00 $0.00 2
22 F343014 BEARING, CRANKSHAFT LOWER MAIN NLA $0.00 $0.00 1
23 819396 SEAL, CRANKSHAFT LOWER F141118 SS $11.49 $11.22 1
24 F286154 GASKET, EXHAUST COVER NLA $0.00 $0.00 2
25 F286151 PLATE, EXHAUST NLA $0.00 $0.00 1
26 F286152 COVER, EXHAUST NLA $0.00 $0.00 1
27 855872 EXHAUST TUBE F487660-1 SS $0.00 $0.00 1
28 F2008 HEX HD SCREW, 1/4 - 20 X 7/8 F1915 SS $0.00 $0.00 10
29 F286279-2 GASKET, CYLINDER MOUNTING NLA $0.00 $0.00 1
30 F1803 STOP NUT, 5/16 - 24 NLA $0.00 $0.00 1
31 F286282 WASHER NLA $0.00 $0.00 1
32 817971A3 LINK, MAGNETO SHAFT F286445 SS $0.00 $0.00 1
33 817971A3 LEVER, MAGNETO CONTROL NLA $0.00 $0.00 1
34 F183813 BEARING, MAGNETO CONTROL LEVER NLA $0.00 $0.00 1
35 F1504 FILL HD SCREW, 1/4 - 20 X 1 1/4 ACT $2.79 $2.72 1
36 824142T LINK, THROTTLE CAM F286509 SS $0.00 $0.00 1
37 F1107 FILL HD SCREW, 1/4 - 20 X 3/4 NLA $0.00 $0.00 8
38 F1335 FILL HD SCREW, 5/16 - 18 X 1 1/4 NLA $0.00 $0.00 4
39 F286440 STUD, MAGNETO CONTROL LEVER NLA $0.00 $0.00 1
40 F286634-1 SCREW, CONNECTING ROD NLA $0.00 $0.00 4
41 FA286655 MAIN BEARING LINER SET (2 PER SET) NLA $0.00 $0.00 1
42 F286571 ROLLER SET, MAIN BEARING (26 PER SET) NLA $0.00 $0.00 1
43 818047A3 CRANKSHAFT W/UPPER MAIN BEARING NLA $0.00 $0.00 1
44 8201051 RING, MAGNETO STATOR F73082 SS $0.00 $0.00 1
45 F286277 GASKET, CRANKSHAFT BEARING CAGE NLA $0.00 $0.00 1
46 817753A1 CAGE, CRANKSHAFT BEARING W/SEAL FA286144 SS $0.00 $0.00 1
47 819801 SEAL, CRANKSHAFT UPPER F346146 SS $0.00 $0.00 1
48 F1112 FILL HD SCREW, 1/4 - 20 X 7/8 F1111 SS $0.00 $0.00 4
49 816514 BEARING, INTERLOCK ROD F84035-2 SS $0.00 $0.00 2
50 819625 SWIVEL, INTERLOCK ROD BEARING F84026 SS $0.00 $0.00 2
51 F1339 HEX NUT, 10 - 24 NLA $0.00 $0.00 1
52 F510531 ROD, INTERLOCK NLA $0.00 $0.00 1
53 26856 BEARING, INTERLOCK LEVER F197813 SS $4.19 $4.10 1
54 F517977-1 LEVER, INTERLOCK F517977 SS $0.00 $0.00 1
55 8267088 STOP NUT, 1/4 - 20 F7008 SS $1.70 $1.66 1
57 F429811 SCREEN NLA $0.00 $0.00 2
58 32509 SEAL, DRIVESHAFT SPLINE F461342 SS $2.39 $2.33 1
59 F286028 BEARING, CRANKSHAFT UPPER MAIN NLA $0.00 $0.00 1
60 F510551-1 BRACKET, INTERLOCK SWITCH F510551 SS $0.00 $0.00 1
61 F2040 TAPTITE HEX WASHER HD SCREW, 1/4 - 20 X 5/8 NLA $0.00 $0.00 3
- FG1005-3 GASKET SET (NOT SHOWN) FG1005-1 SS $0.00 $0.00 1
- 817904A1 SHORT BLOCK (NOT SHOWN) FC510010 SS $0.00 $0.00 1
